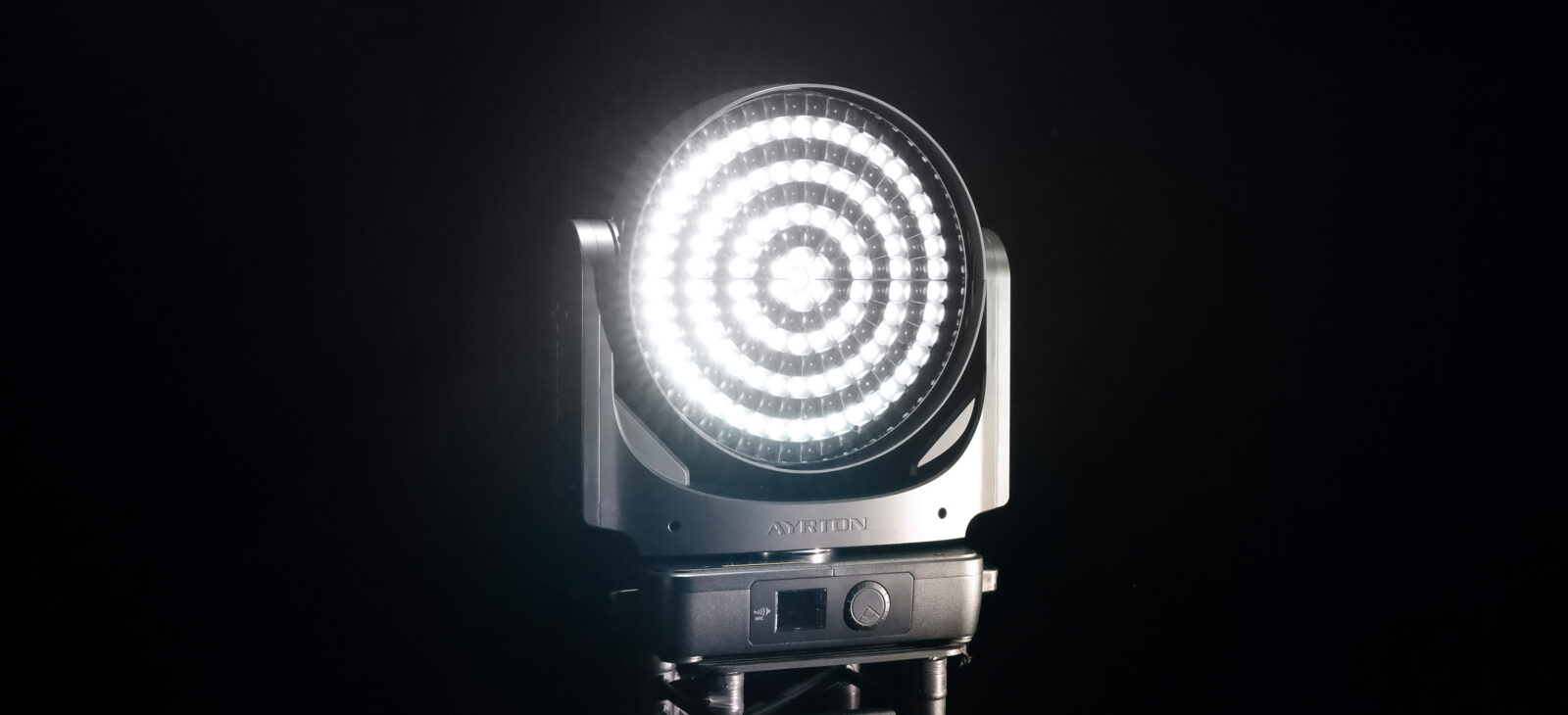

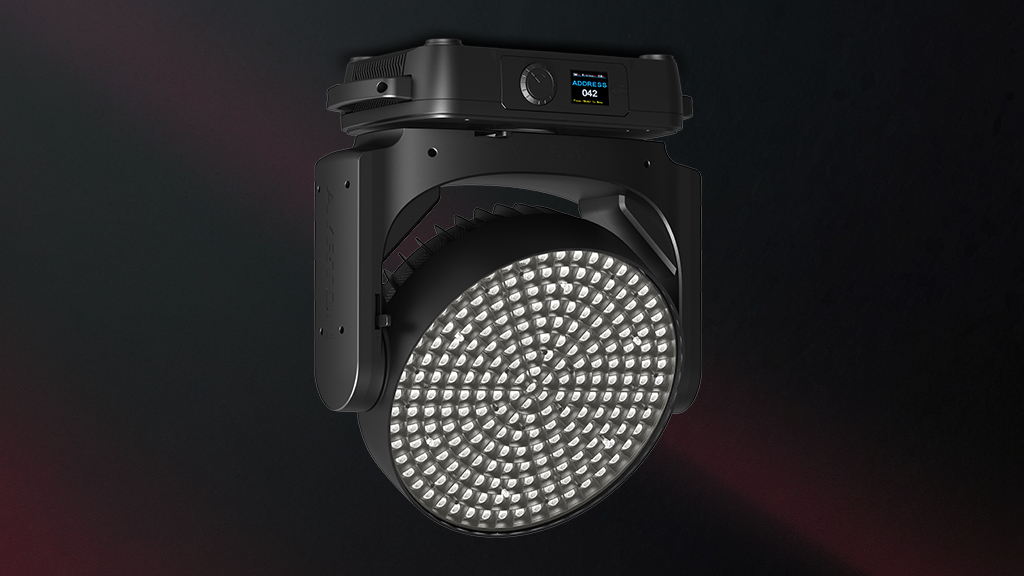

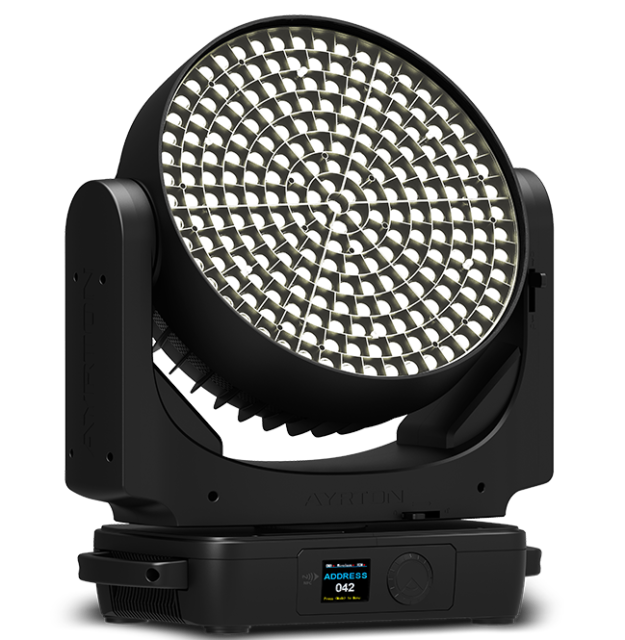

WildSun K9 Wash

the wild side of the sun

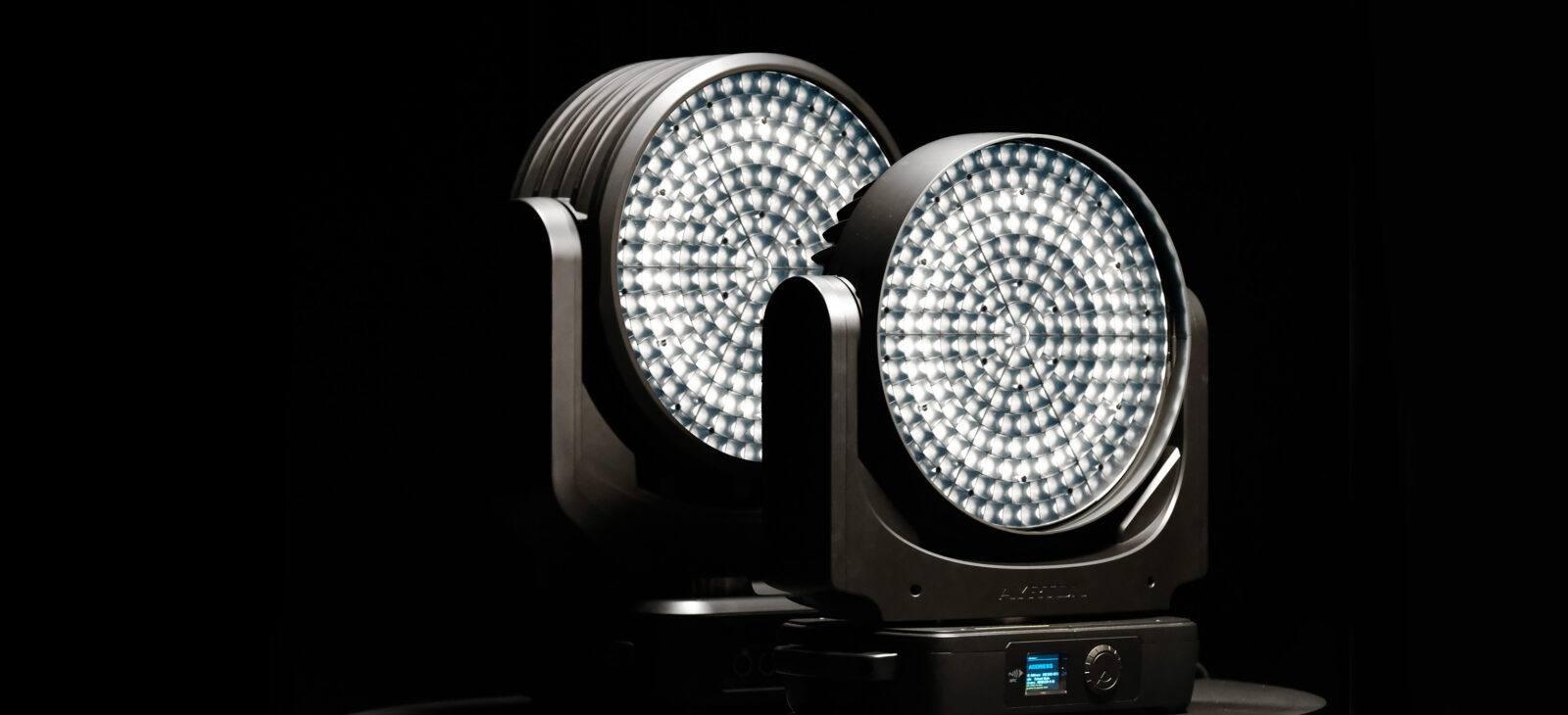

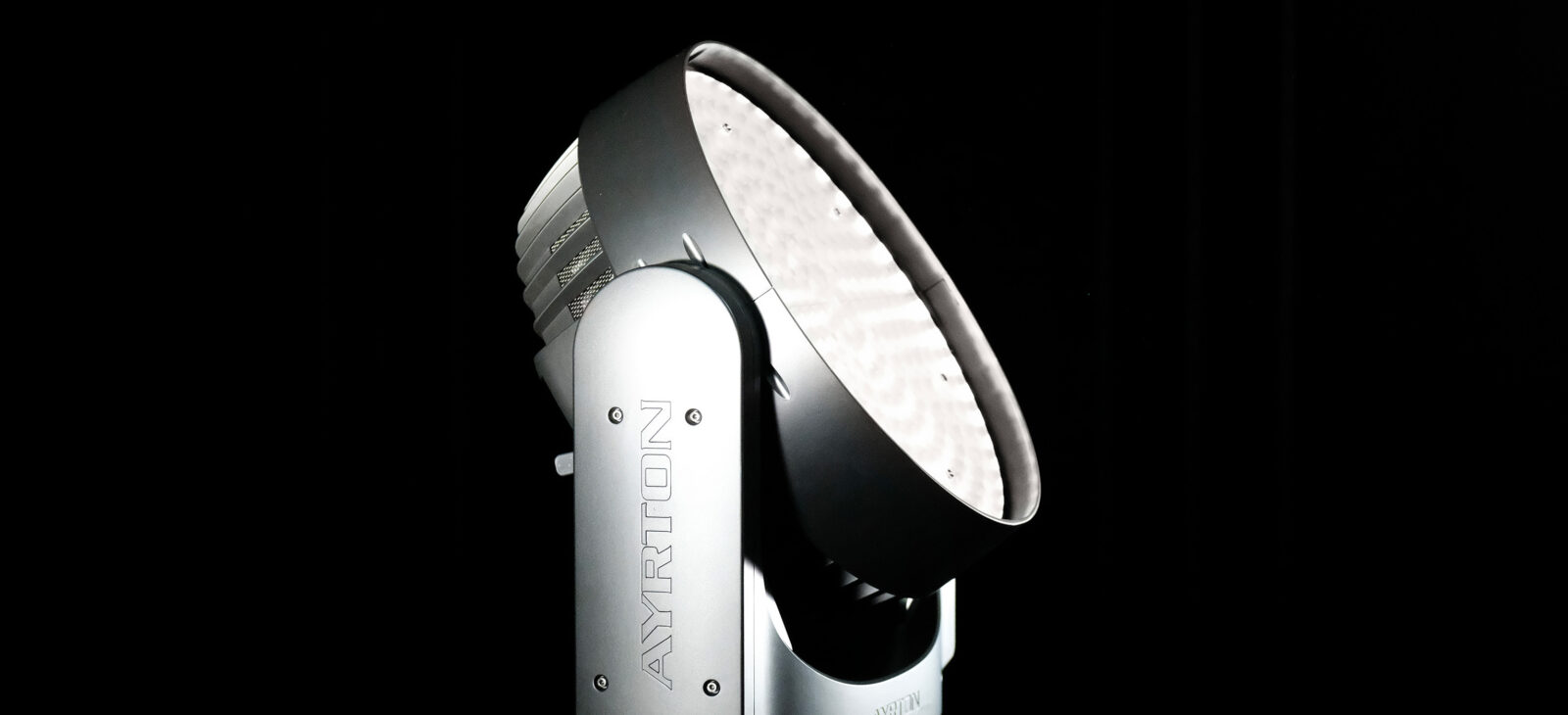

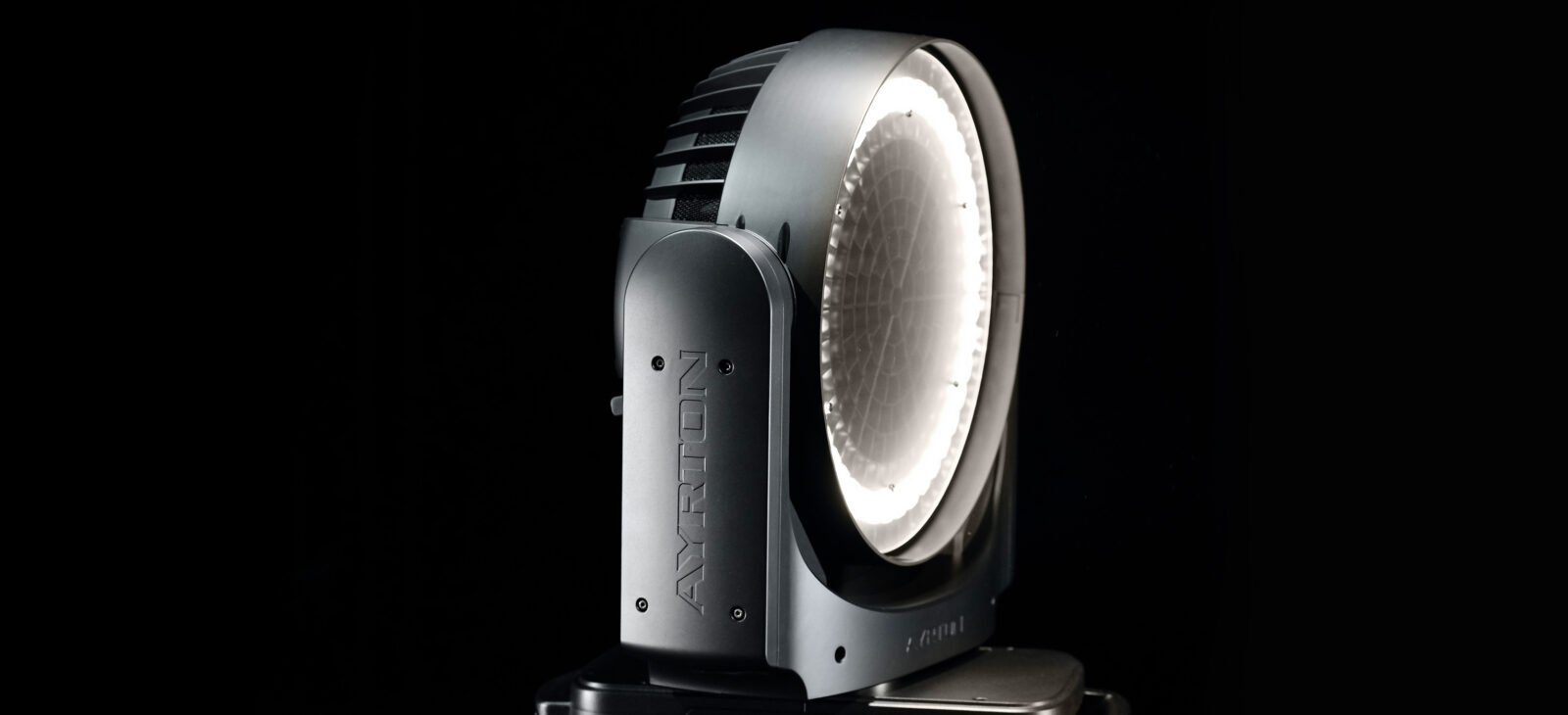

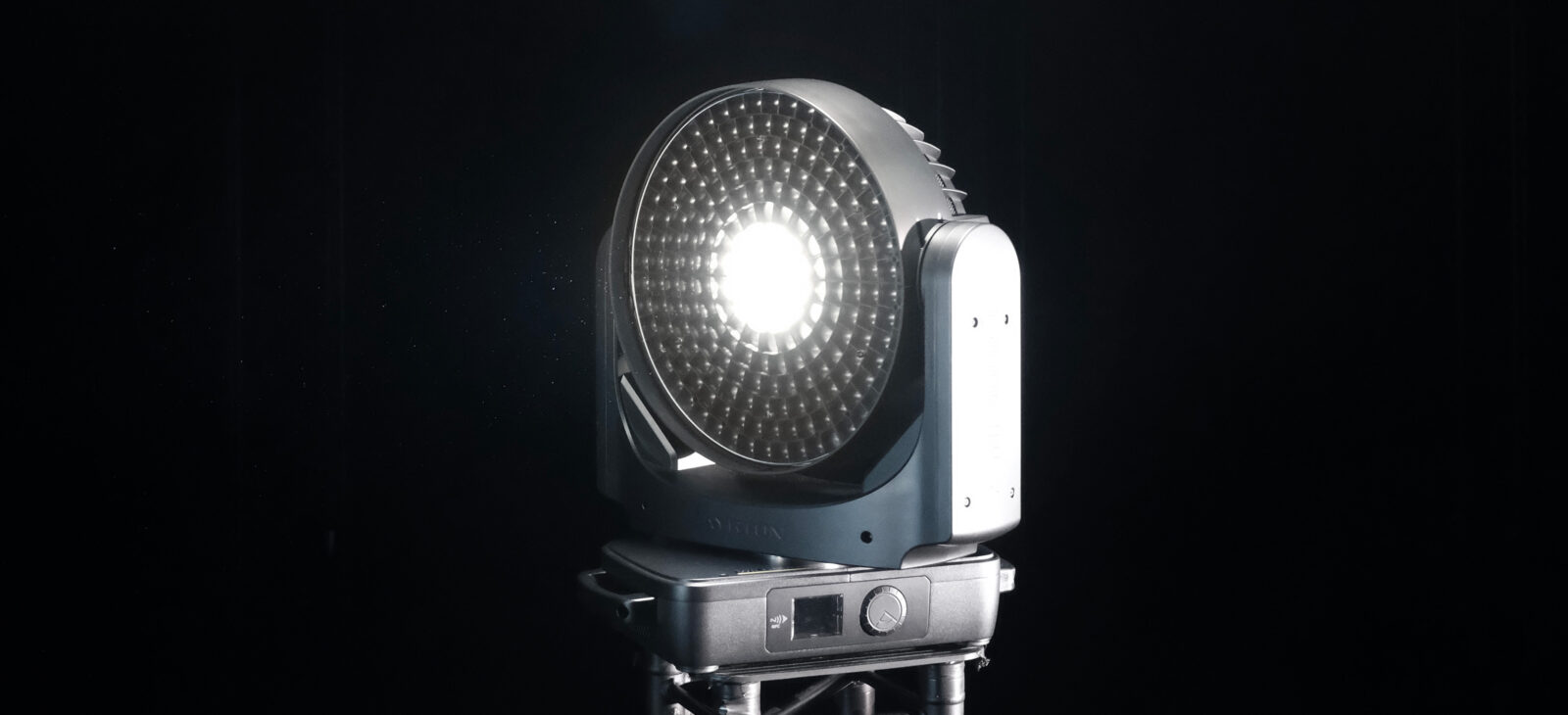

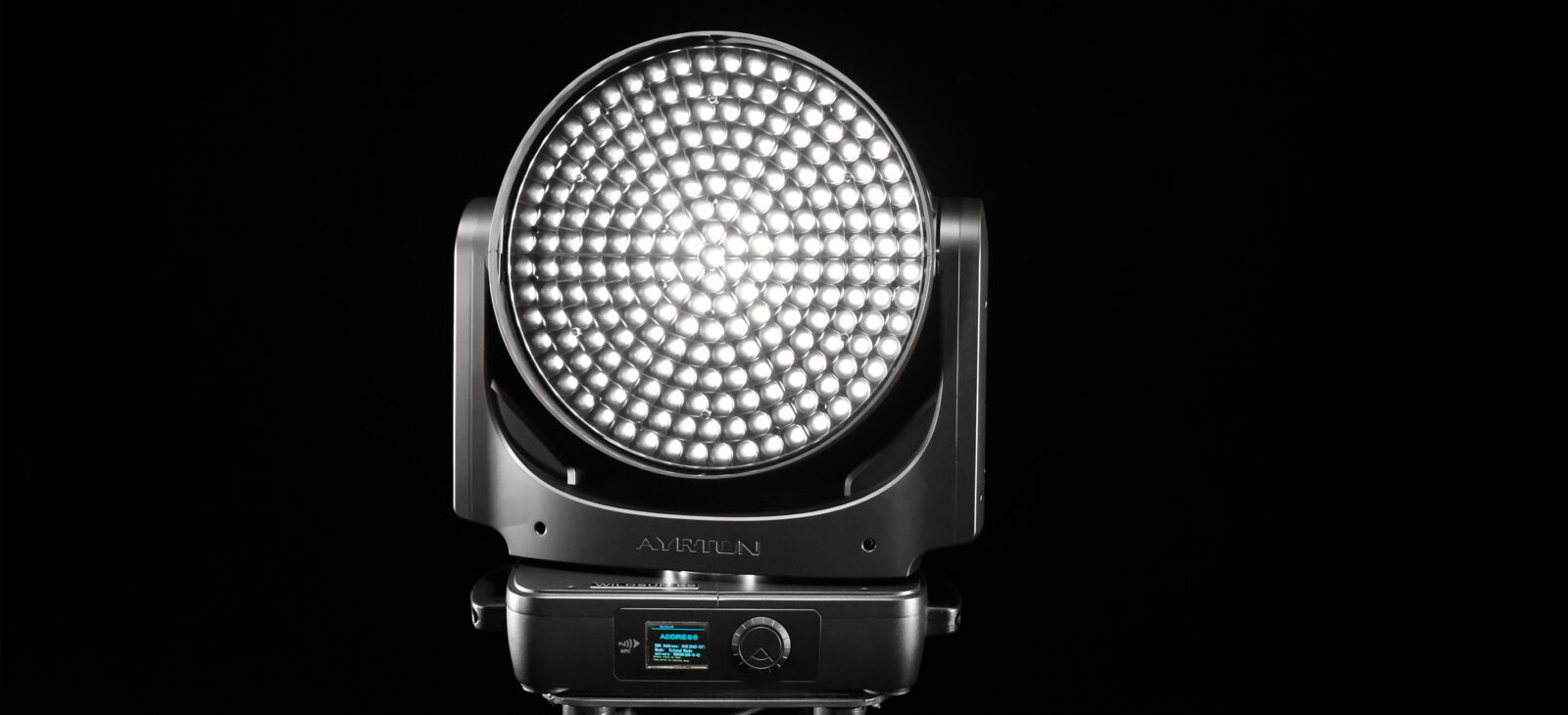

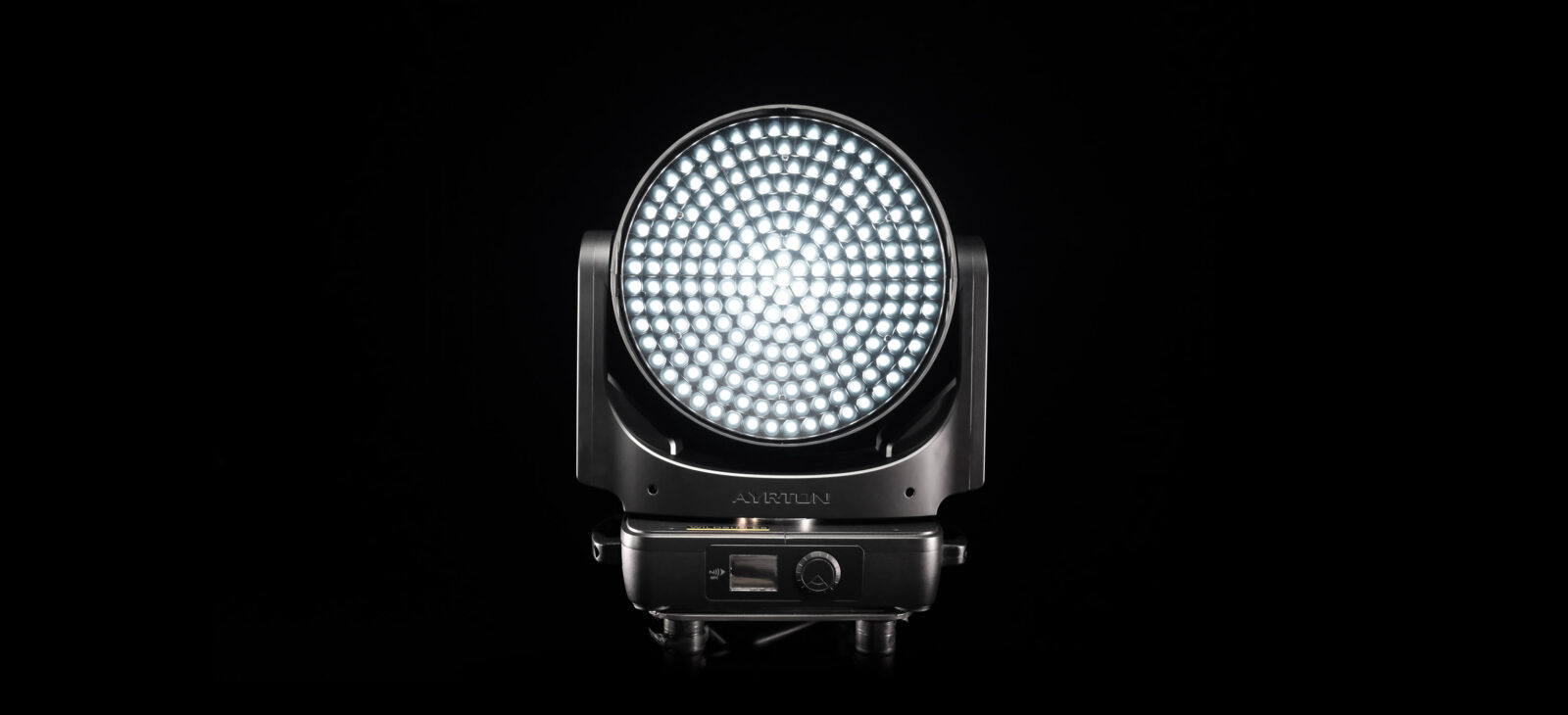

The new WILDSUN K9 WASH is a highly evolved variant of the WILDSUN K25 TC, specially geared to shooting TV video and broadcasting in high-definition.

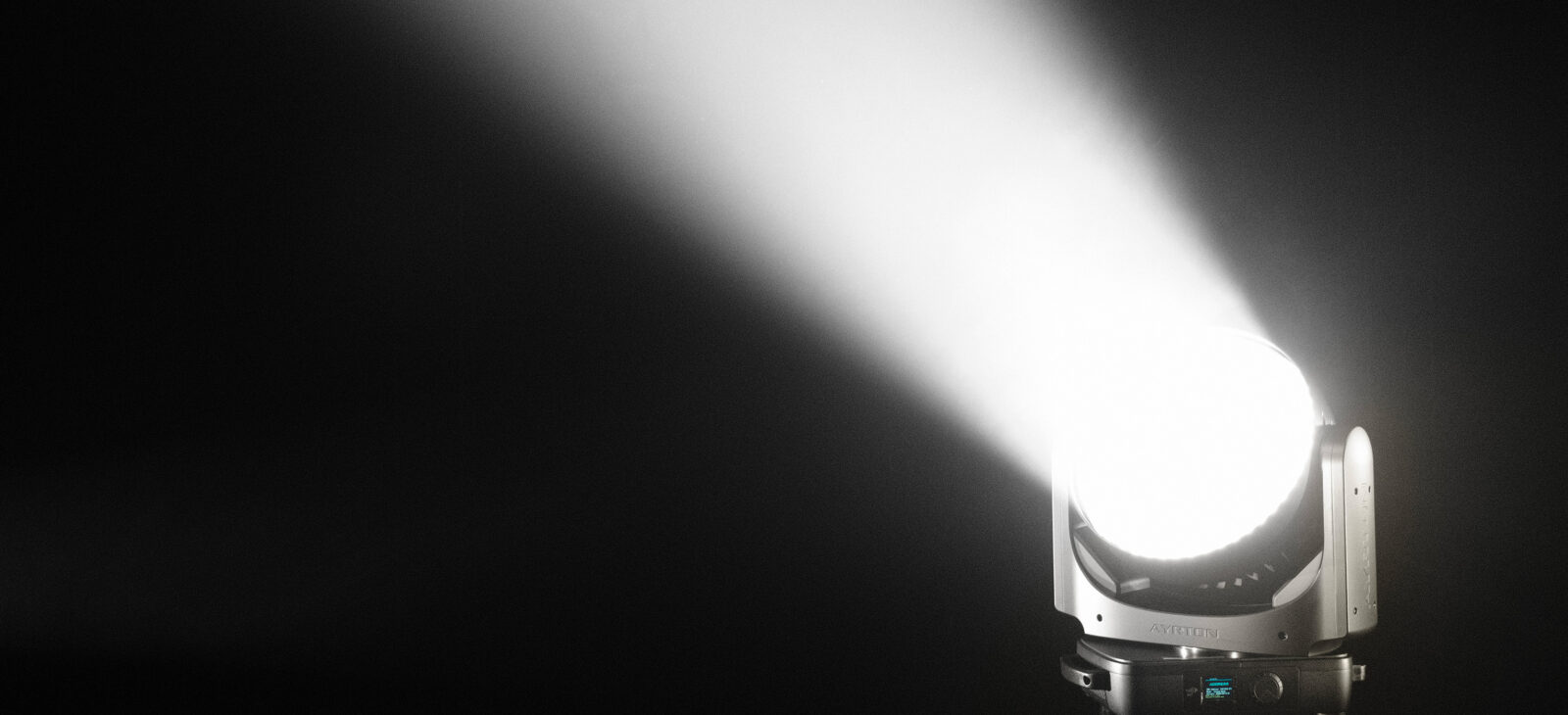

With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WILDSUN K9 WASH is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.

WILDSUN K9 WASH is a powerhouse of technology and innovation. With the same basic specifications as WILDSUN K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.

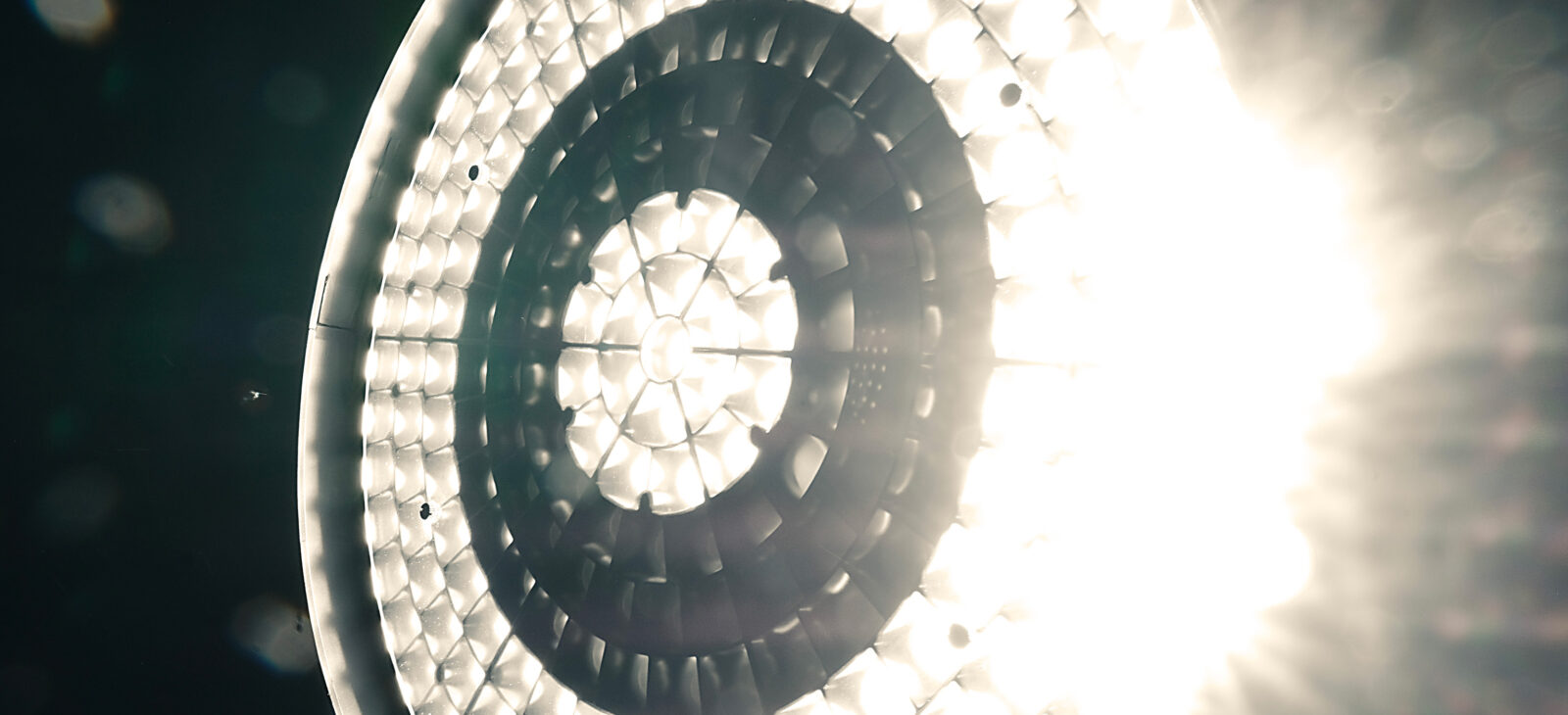

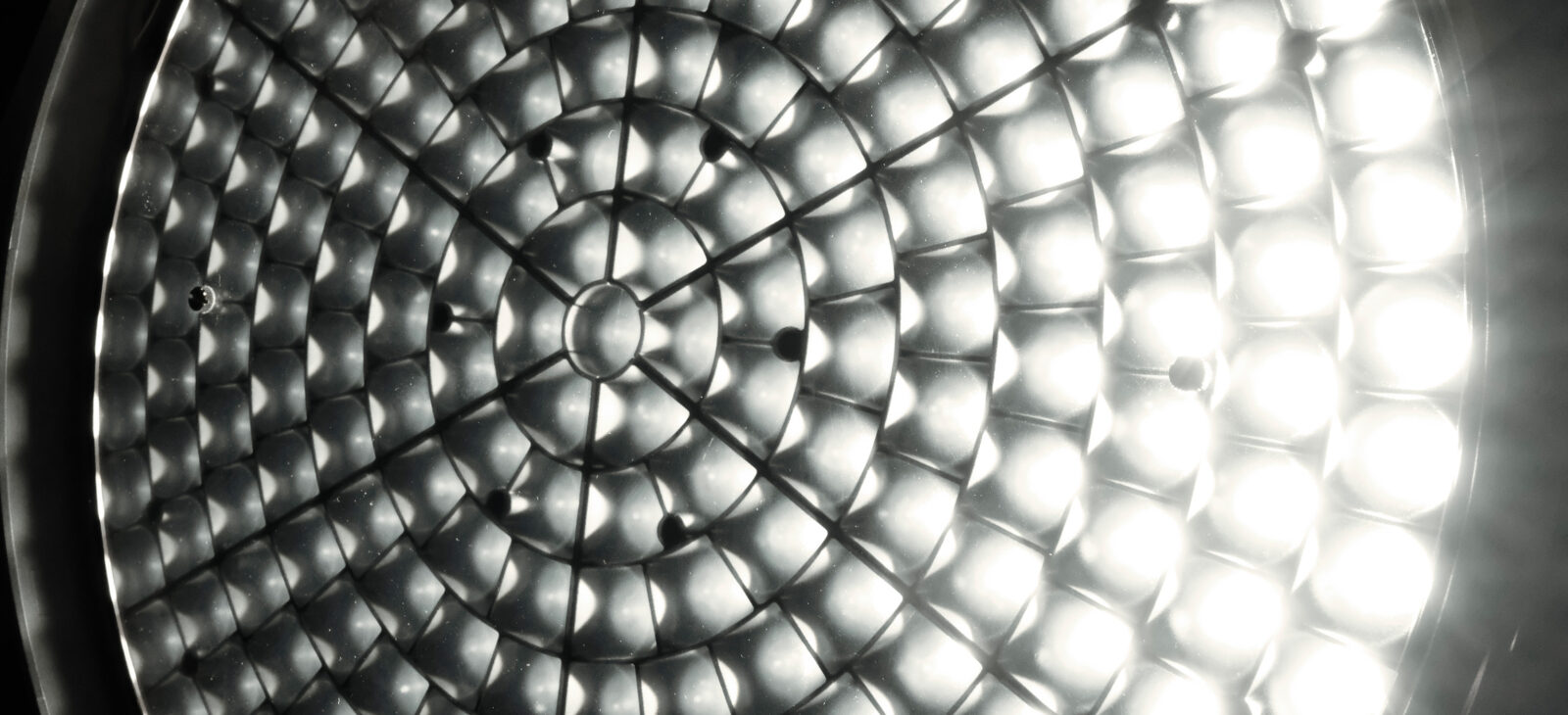

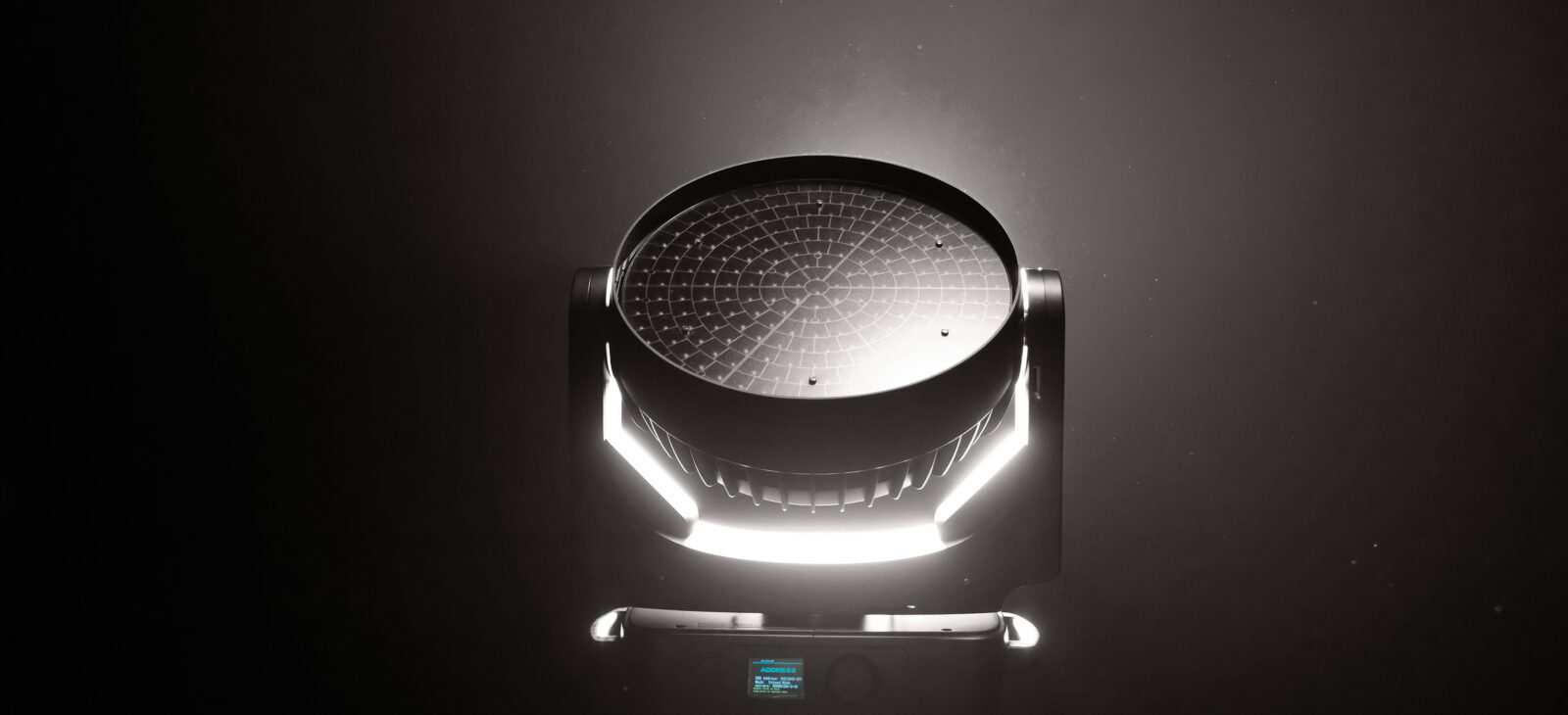

AYRTON developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.

Performance

9 Series - Source 217 mono-chip LED
Lumens 63,000
Zoom aperture 10° to 60°
Front Lenses 217 Silicone lenses

Technical specifications

OPTICS

  • 1 element 6:1 zoom high-resolution optic system
  • Beam aperture: 10° to 60°
  • Fast motorised linear zoom
  • 217 individual lenses
  • 384 mm front lens cluster

LIGHT SOURCE

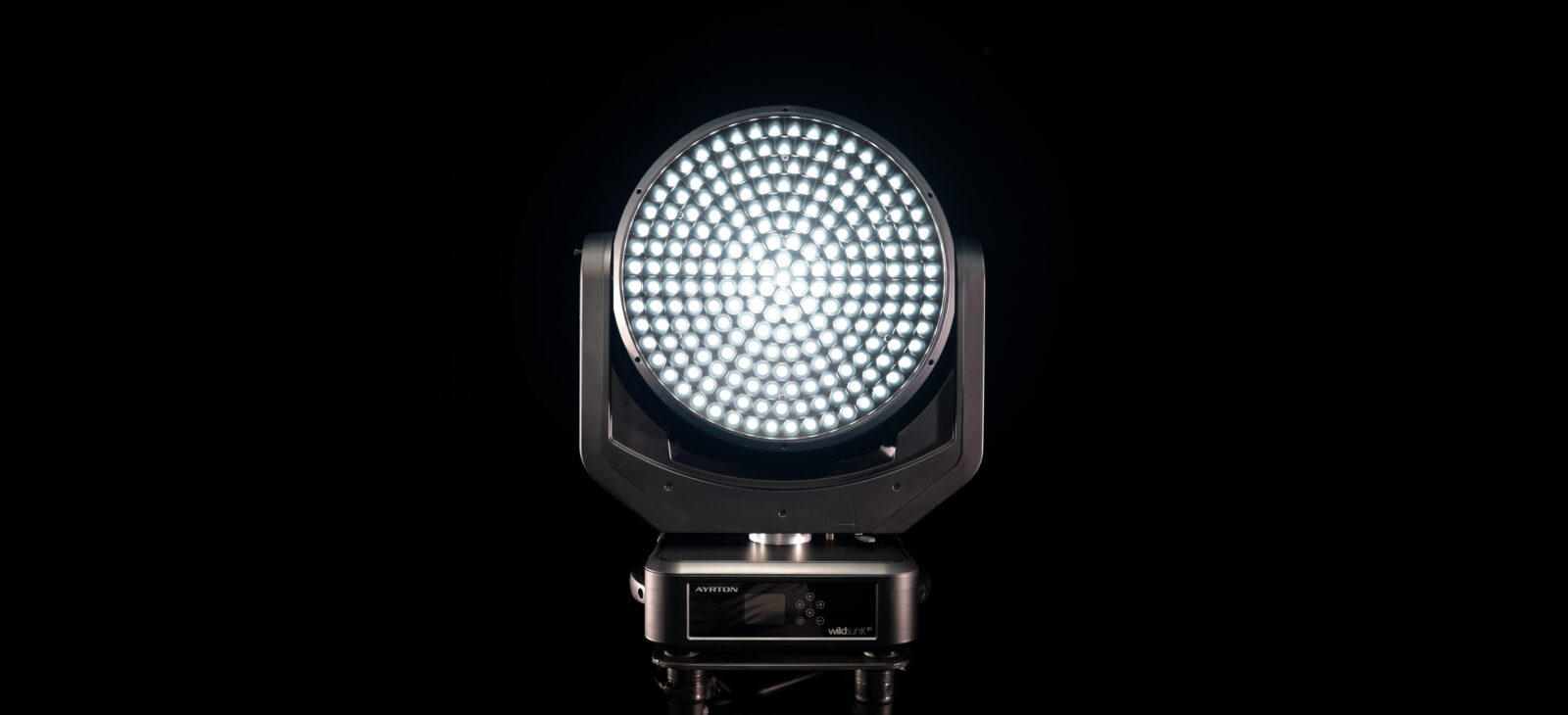

  • 217 mono-chip High-Power LED sources
  • Total luminaire output: up to 63,000 lumen
  • CRI: greater than 92
  • Rated life (L70): up to 40,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

MOVEMENT

  • Extremely accurate positioning
  • Moving-head operated via either 8 or 16 bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
  • PAN and TILT automatic repositioning
  • Moving-head range: 540° (pan), 270° (tilt)

COLOURS

  • Monochromatic daylight source perfectly calibrated at 5700 K

DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100%
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

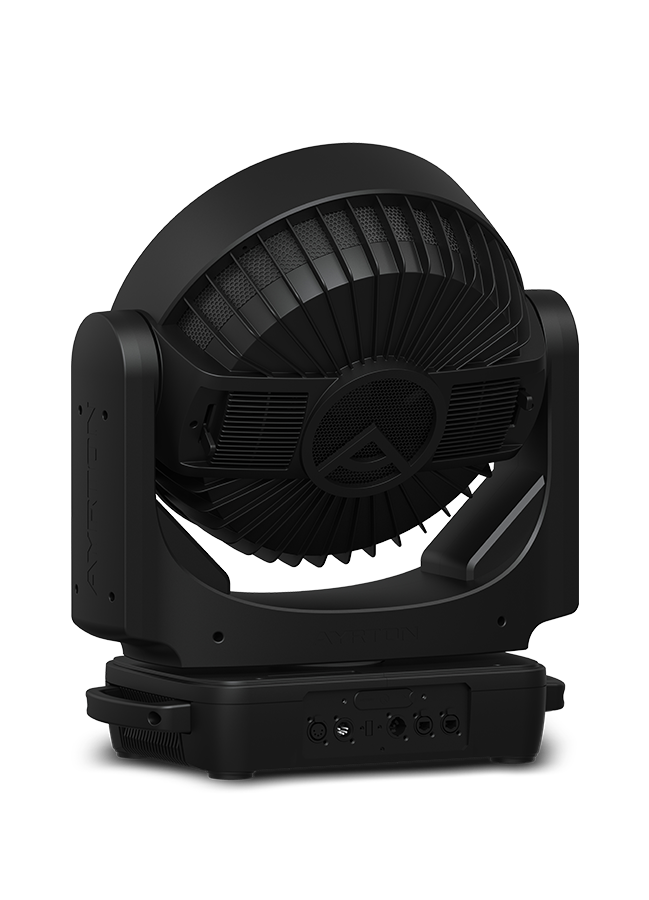

HARDWARE FEATURES

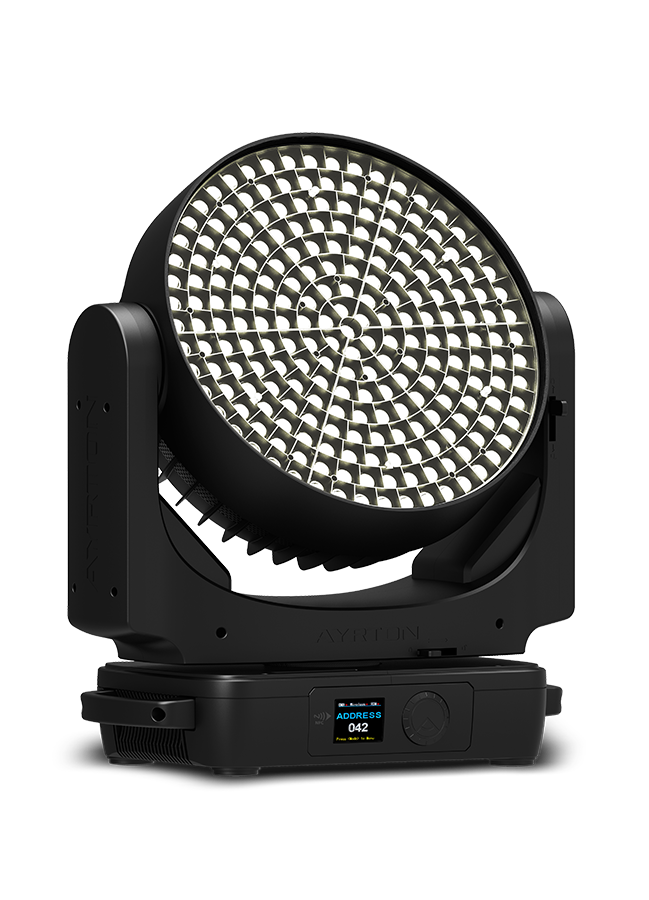

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • etherCON RJ45 IN / OUT connectors for ArtNet™ connection
  • powerCON TRUE1 male connector for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 2 DMX modes (from 14 to 30 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 120 to 240 Volts – 50/60Hz
  • Power: 1,500 W maximum

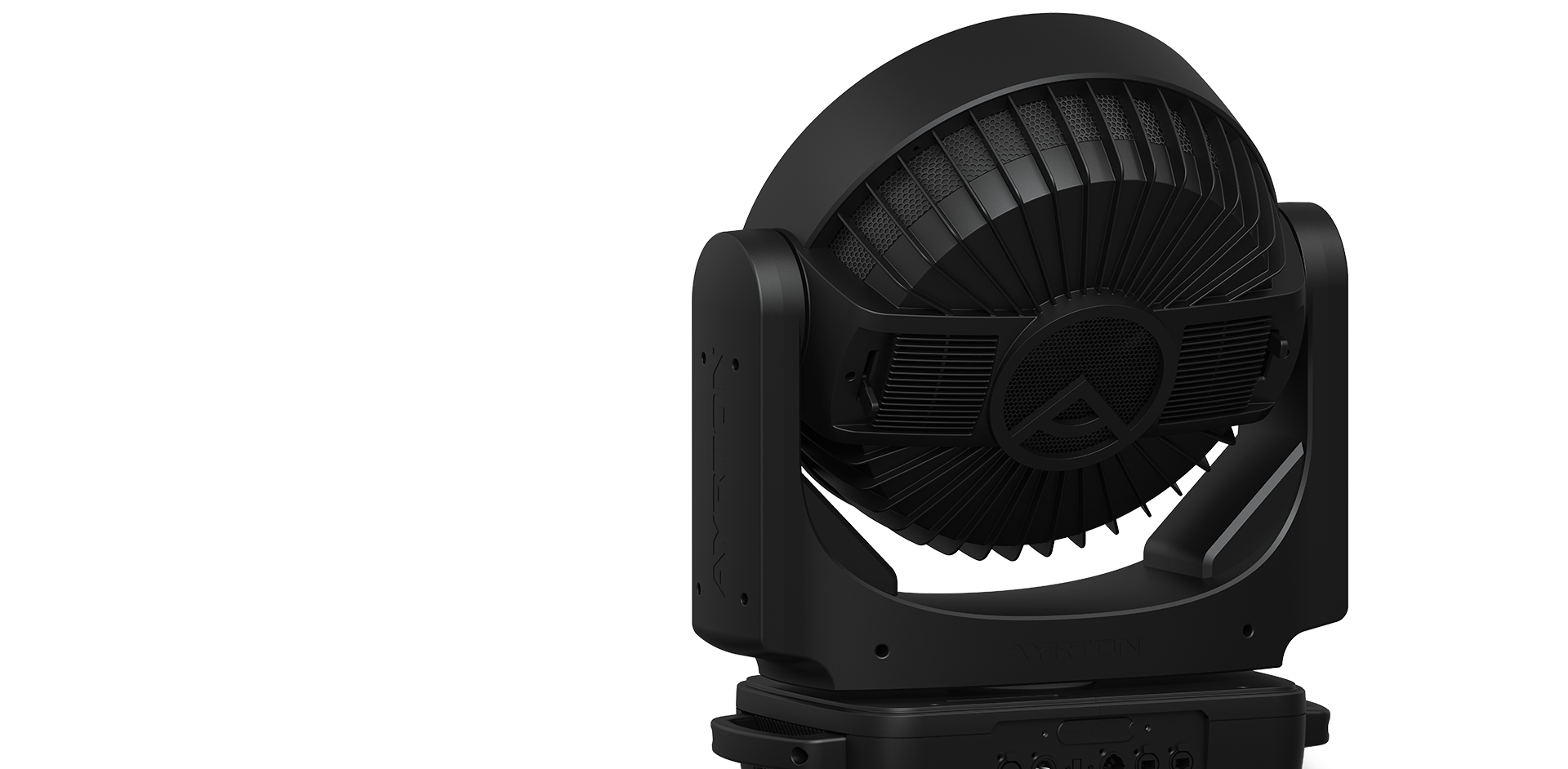

COOLING SYSTEM

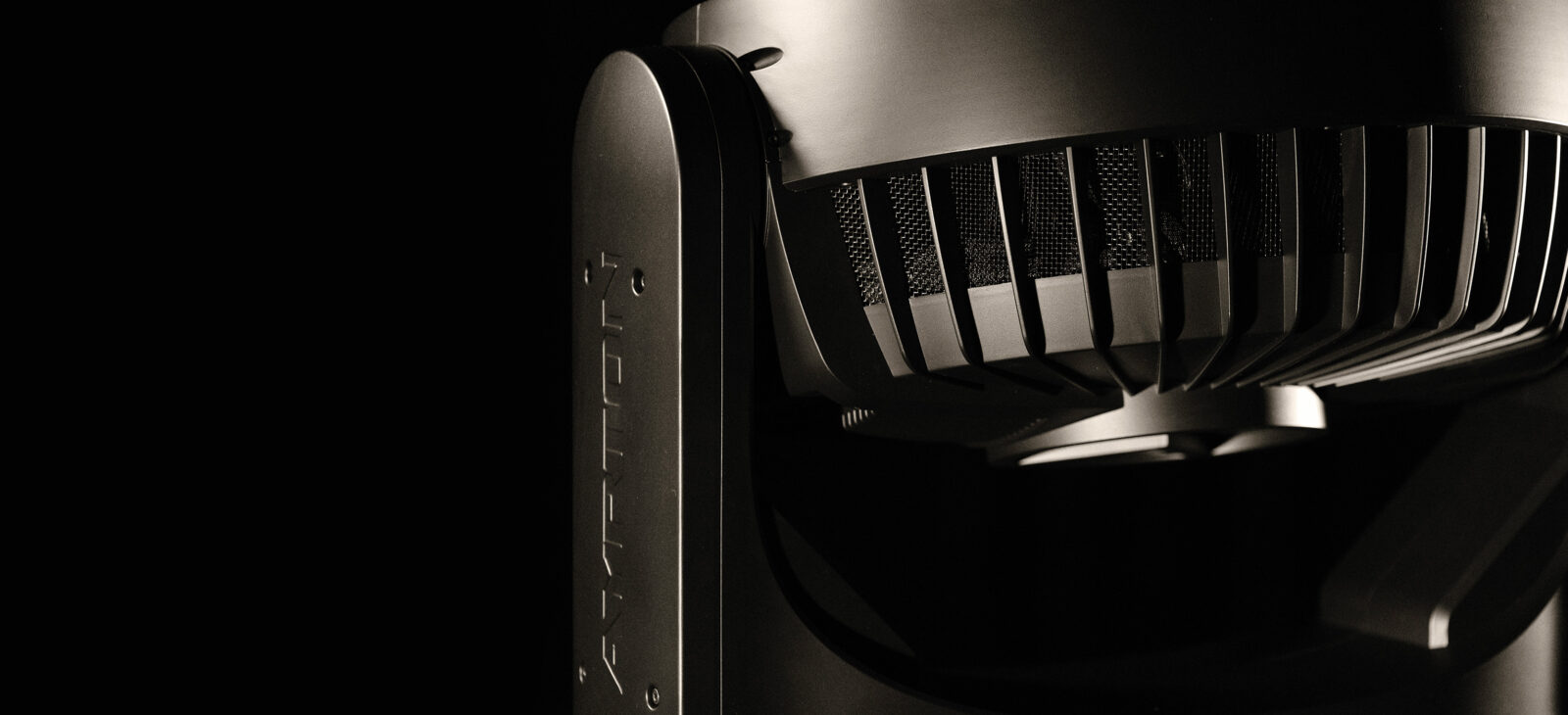

  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with Super Silent mode
  • Safety protection against temperatures excesses

HOUSING

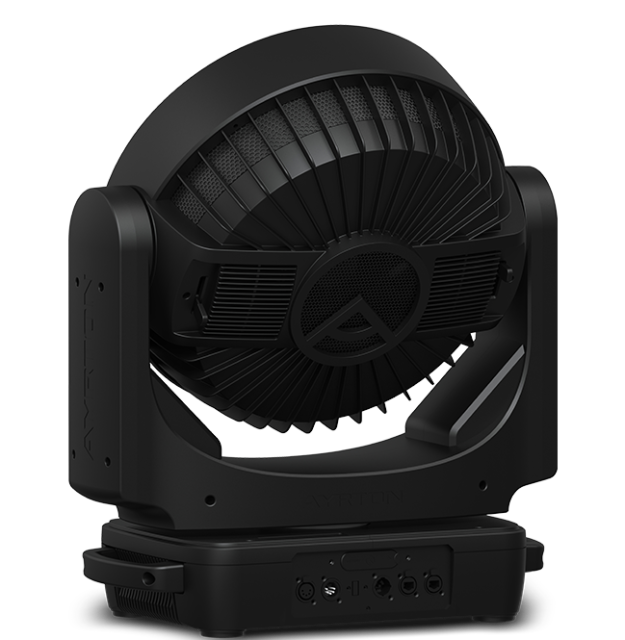

  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two sides handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

INSTALLATION

  • Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
  • Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 3 m (9.84 ft)

COMPLIANCE

EU (EMC & LVD)

  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU

US (Safety & EMC)

  • UL 1573
  • FCC Part 15, Subpart B: 2018

SIZE

  • Product: 530 x 625 x 280 mm (l x h x d)
  • Flight-case foam: 580 x 611 x 345 mm (l x h x d)

WEIGHT

  • Product: 26.9 kg

PRODUCT CODES

  • 013940: WILDSUN K9 WASH MULTI-SOURCES 9 SERIES
