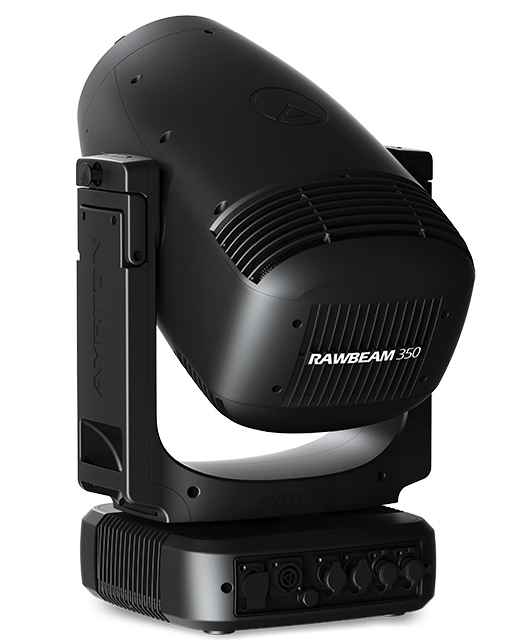

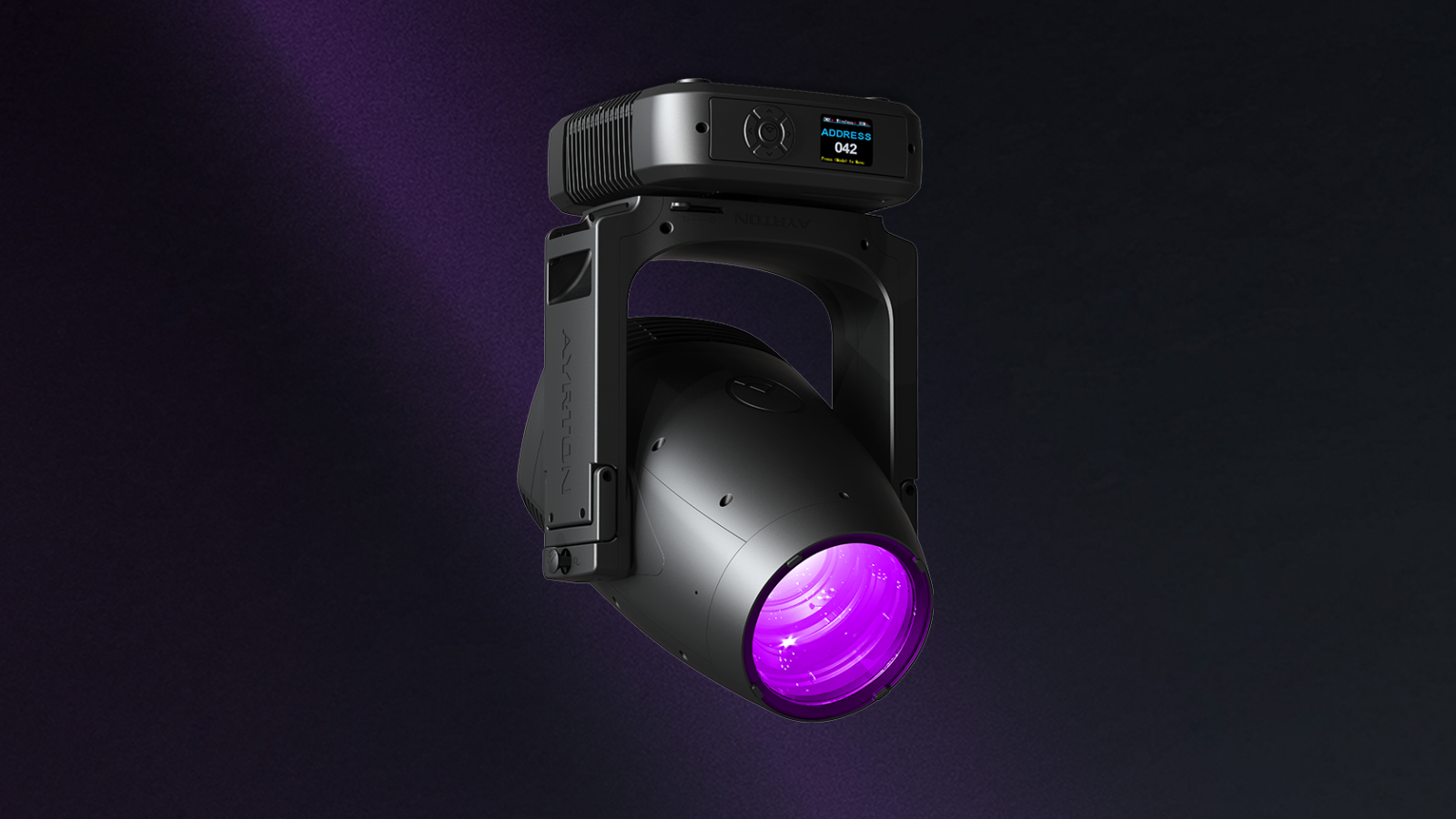

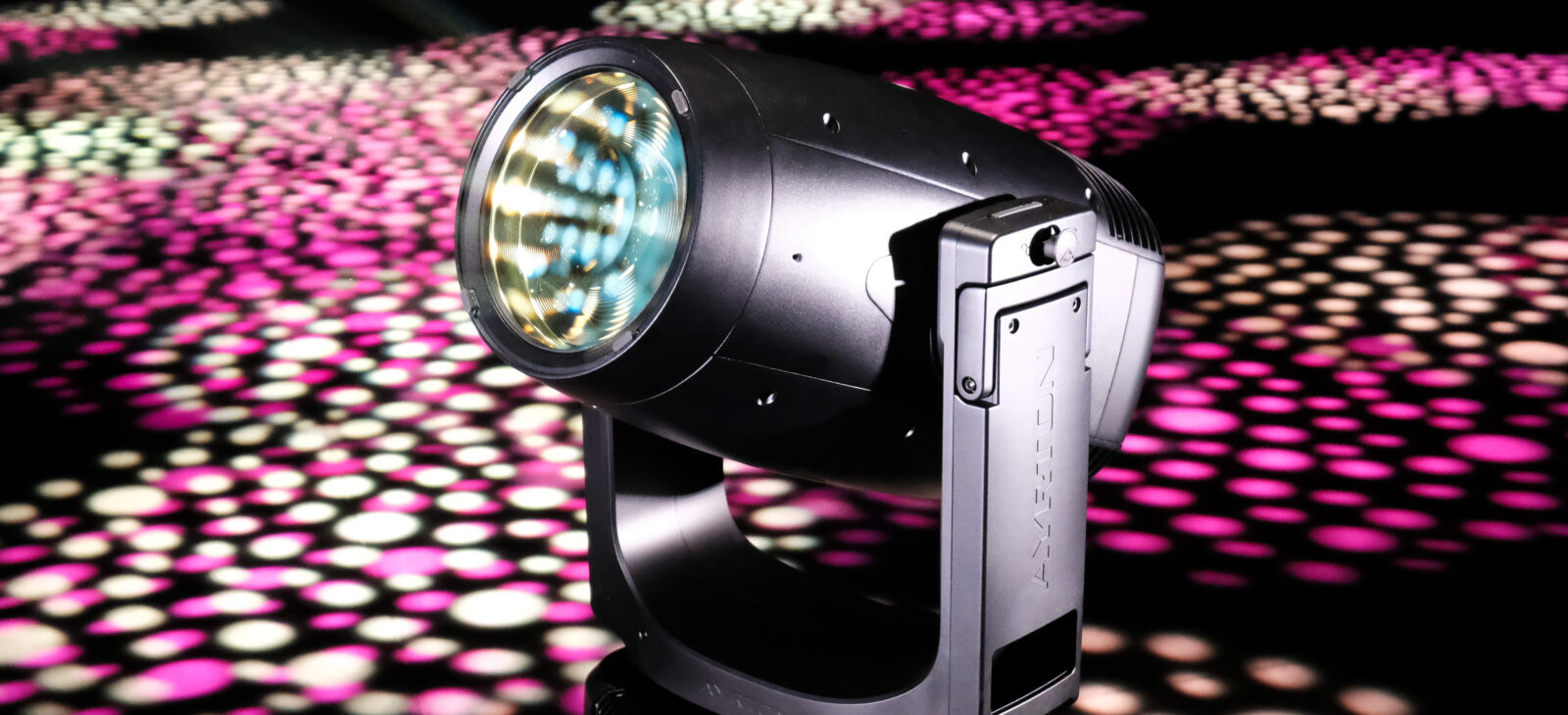

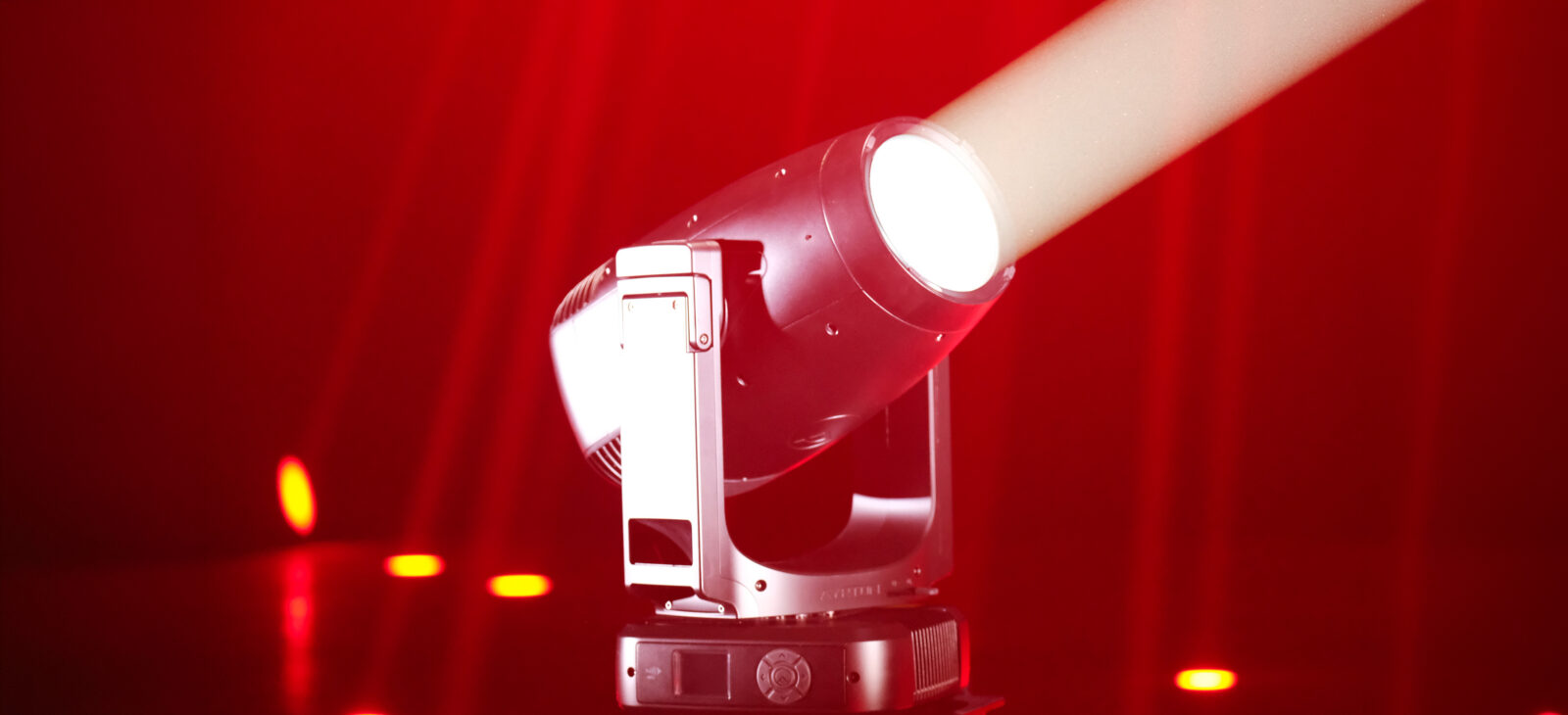

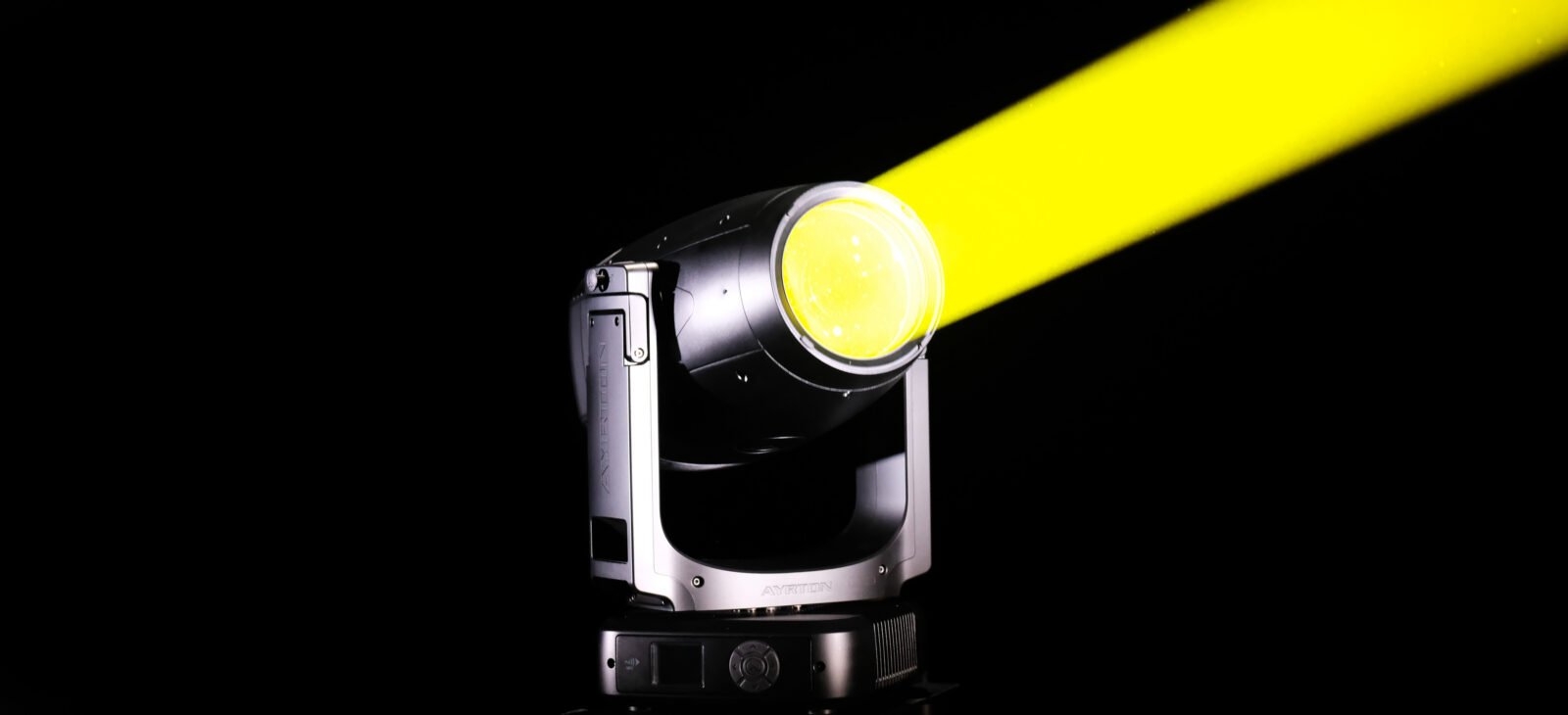

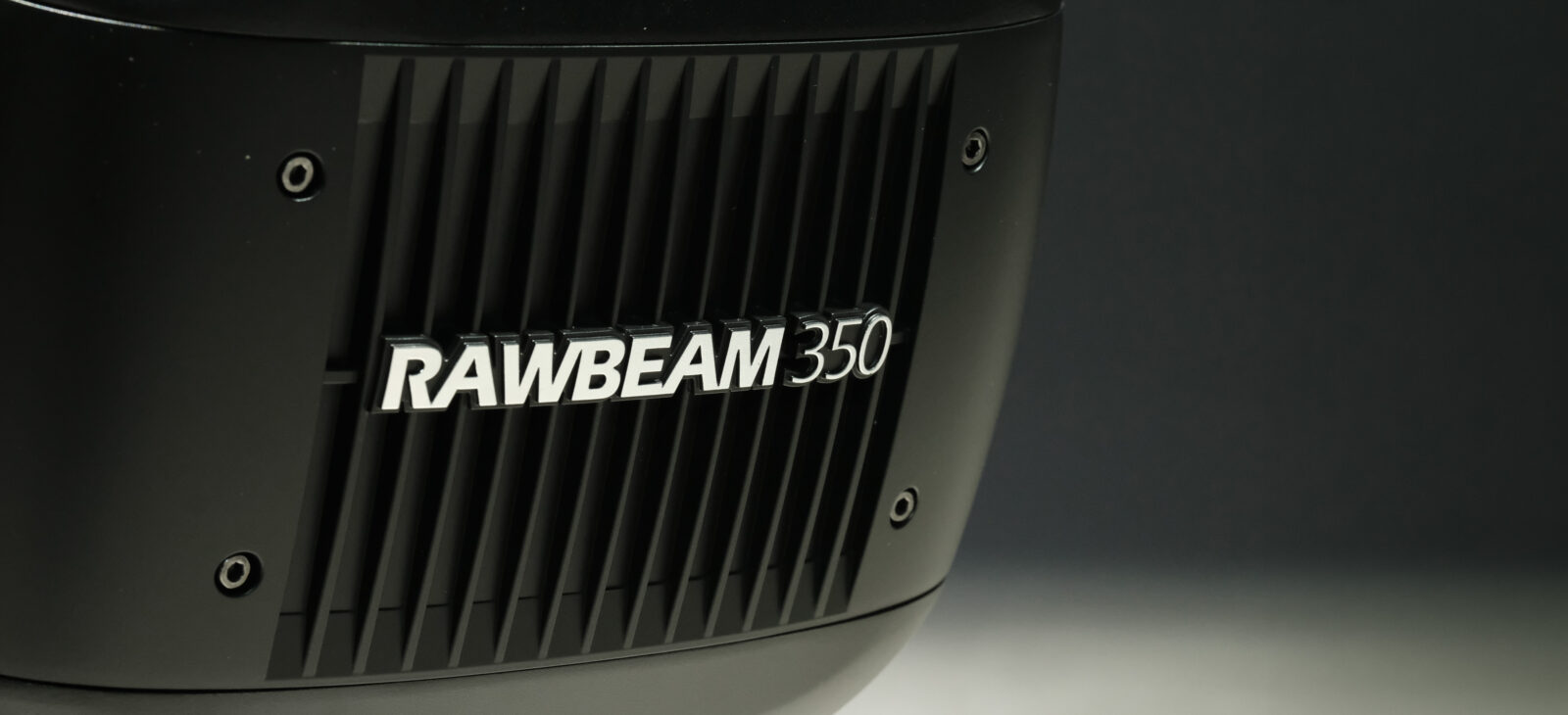

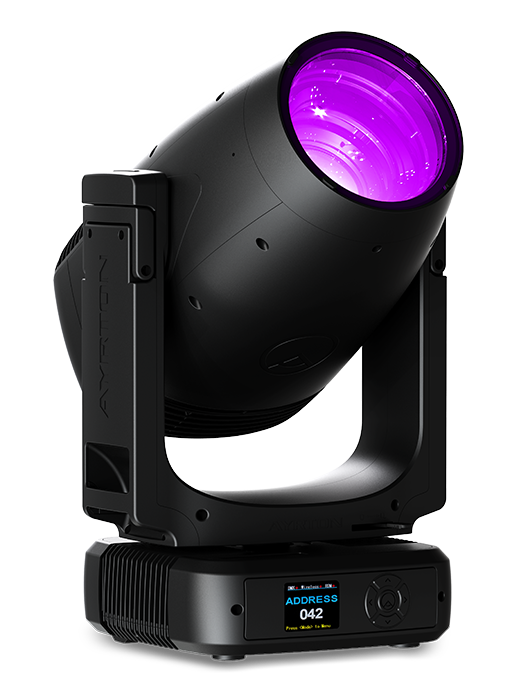

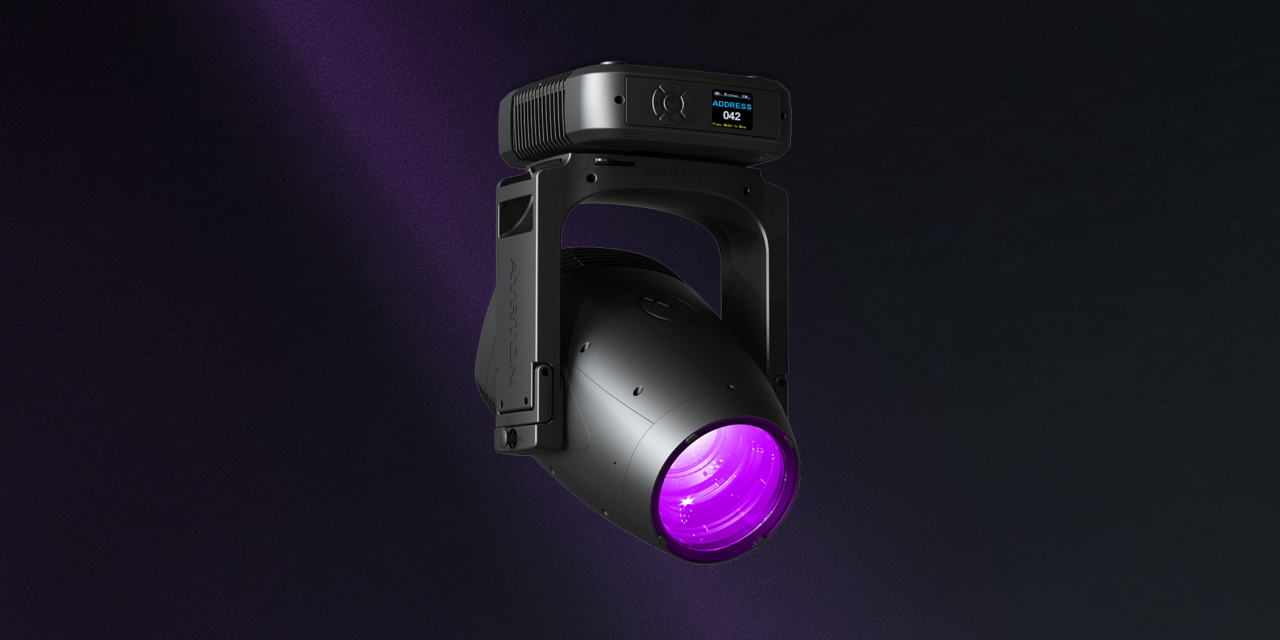

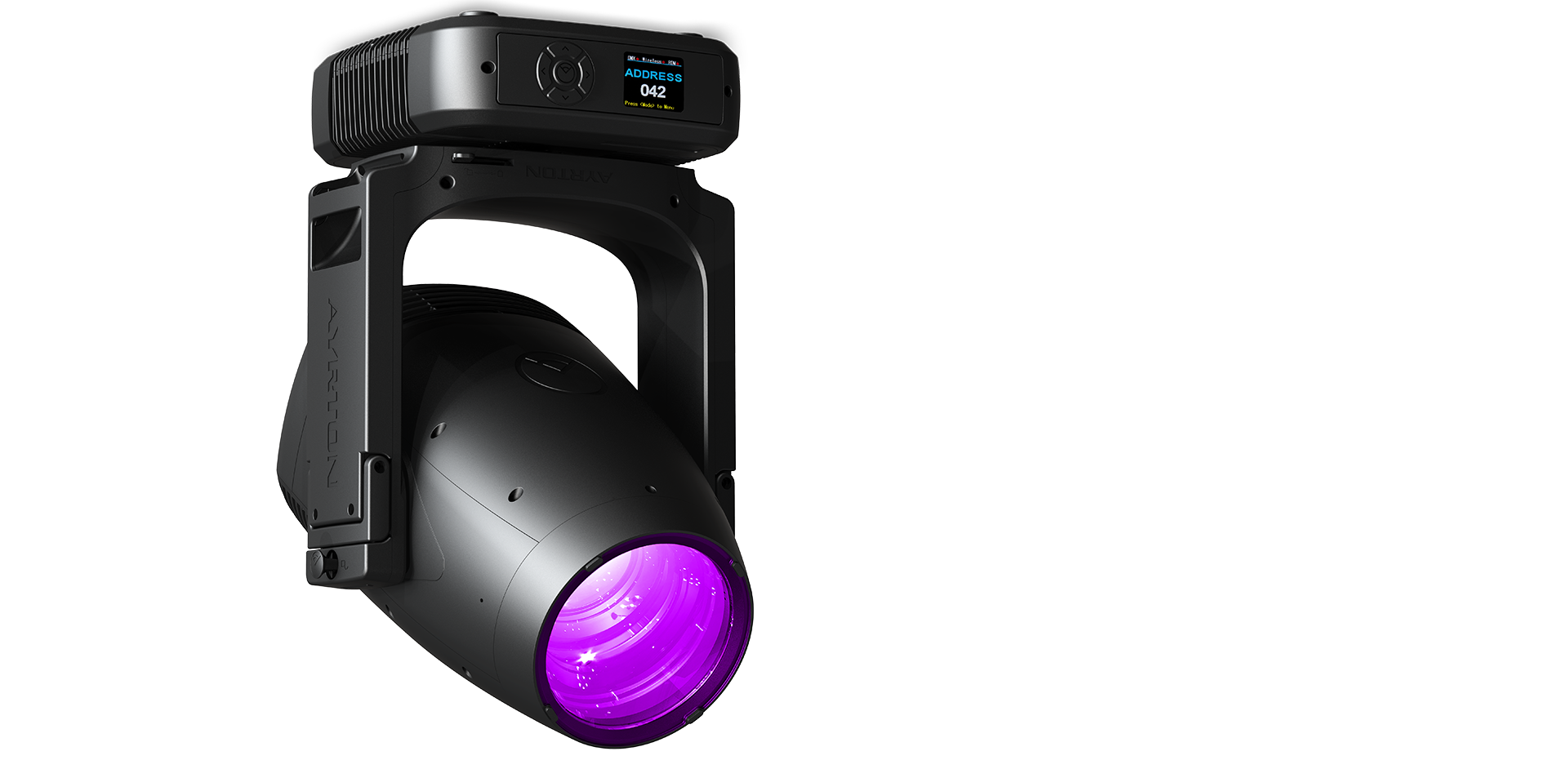

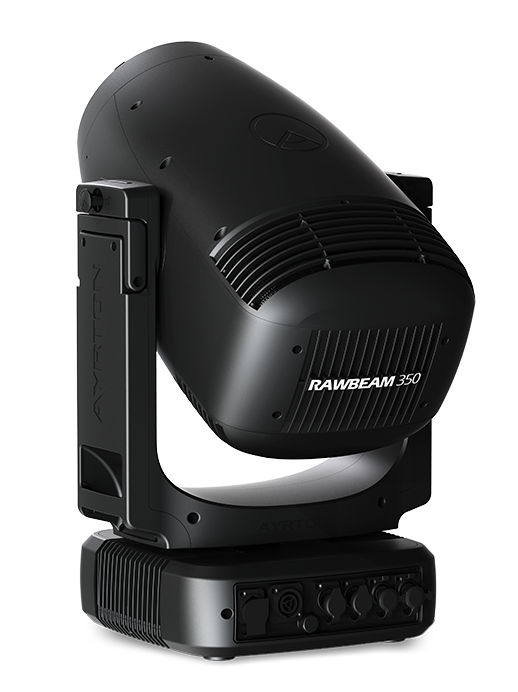

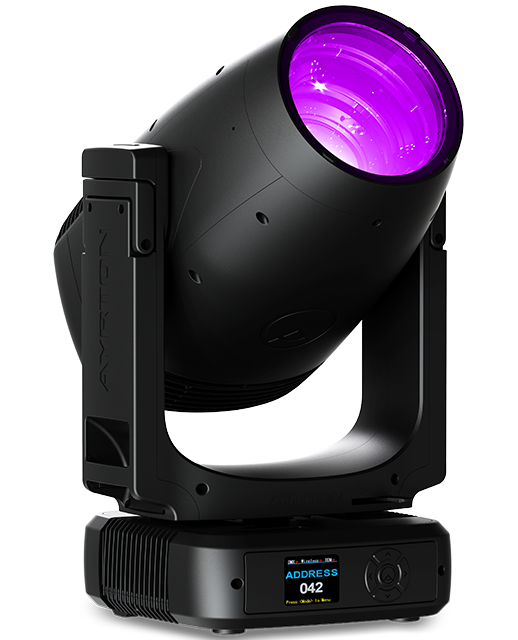

RawBeam 350
the racing machine
After more than 15 years of success with discharge-lamp luminaires for applications demanding high-intensity beams, and with well over a hundred thousand units in service, the planned obsolescence of that type of source has forced our industry to radically rethink its philosophy.
In 2017, Ayrton created the first digital luminaire capable of replacing those outmoded light sources. But it was in 2022, with Cobra and its immediate worldwide success, that we established this new technology for the long term, followed by the consecutive launches of Kyalami and Mamba. Today, building on those achievements and with more than 20,000 laser-source luminaires sold, we are entering a new era with this technology and the creation of RawBeam 350: a brand-new digital luminaire with less extreme characteristics, designed for more versatile applications. Thanks to its unique design and aluminium structure, RawBeam 350 establishes itself as the lightest and best-equipped fixture in its category.Like all Ayrton luminaires since 2023, RawBeam 350 was developed as an ultra-compact, versatile luminaire capable of operating in all outdoor and indoor conditions, including saline environments, while maintaining full accessibility and an astonishing weight of just 25.4 kg.
RawBeam 350 delivers exceptional illuminance of 1,340,000 lux at 10 metres. It is equipped with a 160 mm front lens, while the proprietary 13-lens optical system offers a 40x zoom range and an operating span from 1.1° to 45°.
Built around essential functions, RawBeam 350 offers extensive equipment and features a CMY colour-mixing system and an ultra-fast gradient CTO on discs, enabling perfect colour reproduction. A wheel of 15 complementary colours, a multi-colour RGB-CMY animation section, and a CTB correction filter complete the set of tools dedicated to colour. RawBeam 350 is equipped with multiple graphic tools, including 10 rotating gobos and 25 fixed gobos, 4 beam reducers, and an animation wheel that allow you to sculpt the light. The gobos can be combined with two sets of three combinable rotating image-multiplying prisms, creating a multitude of complex volumetric effects for truly breathtaking looks. Two Frost filters complete the palette of graphic tools. Incomparable, unrivalled, and without equal, RawBeam 350 is probably the most exciting luminaire of the moment: a precision mechanism built for competition, shaped by talented engineers, delivering a genuine connection to absolute pleasure.
Performance
Technical specifications
OPTICS
- 13-element 40:1 zoom high-resolution optic system
- Beam aperture: 1.1° to 18° and 2.2° to 45°
- Tempered anti-reflective coated lenses
- 160 mm frontal lens
LIGHT SOURCE
- Lux at 10 m: over 1,340,000 lx (narrow angle)
- Colour temperature output: 6800 K
- Rated life (L70): up to 12,000 hours
- Speckle-free source
MOVEMENT
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- Pan and tilt automatic repositioning
- Moving-head range: infinite (pan & tilt)
COLOURS
- Sophisticated colour mix system providing CMY colour mixing
- Variable CTO colour temperature correction 3000 to 6800 K
- Fixed colour wheel with 15 complementary colours, 1 multicolour animation section and 1 gobo correction filter (1/4 CTB)
GOBOS
- One indexable rotating gobo wheels with 10 Quartz glass gobos (or metal), plus open position
- Adjustable-speed rotating gobo in both directions
- Fixed multi-position metal gobo wheel with instant access to 25 metal gobos, 4 beam reducers and open position
- Gobo diameter (rotating): 16 mm
- Image diameter (rotating): 10 mm
- Gobo thickness (rotating): 1.1 mm
FROST
- Light frost (1°) to soften the edge of the beam
- Heavy frost (5°) for Wash effects
EFFECTS
- Focusable graphic animation effect-wheel with continuous rotation in both directions (on fixed gobo wheel)
- 2 set of 3 combinable rotating and indexable prisms
DIMMER / STROBE
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software versio
HARDWARE FEATURES
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet and sACN connection
- IP65 Power connectors male and female for power connection
CONTROL
- DMX 512 protocol, through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 1 DMX mode (43 DMX channels)
POWER SUPPLY
- Electronic power supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 660 W maximum
- Power: 550 W typical at 230 V
COOLING SYSTEM
- Advanced high-performance cooling system
- IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes including Super Silent Mode
- Safety protection against excess temperature
HOUSING
- Moving-head skeleton made of aluminium metal plates
- Head in die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Arms covers in self-extinguishing fire retardant ABS PC (V0 class)
- Four-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45°C (113°F)
- Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
- Minimum usage distance: 25 m (82ft)
COMPLIANCE
EU (EMC & LVD)
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573
- FCC Part 15, Subpart B: 2023
Substance regulations
- RoHS
- REACH
- CP65
SIZE
- Product: 339 x 592 x 297 mm (l x h x d)
- Flight-case foam: 395 x 630 x 335 mm (l x h x d)
WEIGHT
- Product: 25.4 kg
PRODUCT CODES
- 014350: RawBeam 350 – Laser Source IP65 3 Series
LEGAL
- RAWBEAM is AYRTON registered Trademark
- RAWBEAM is a patented model

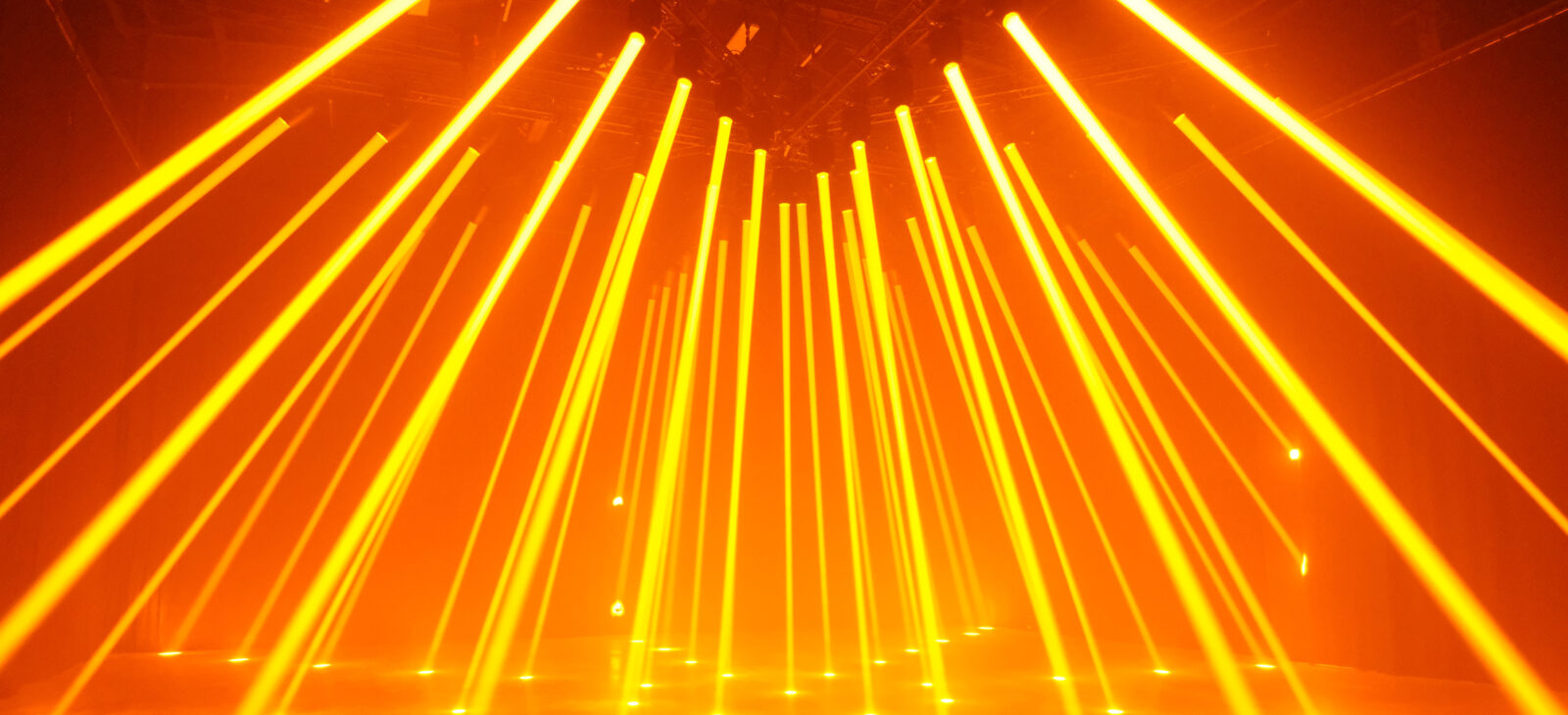

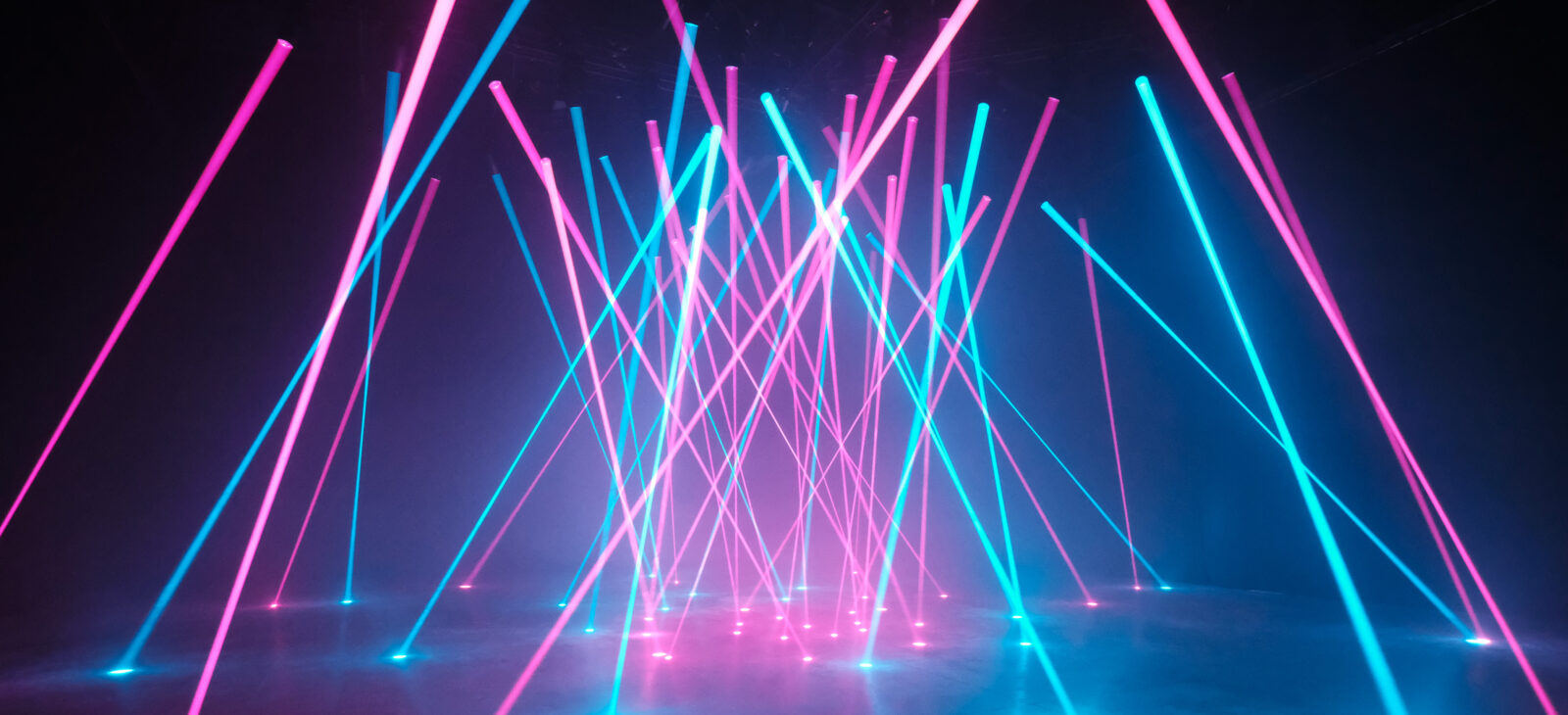

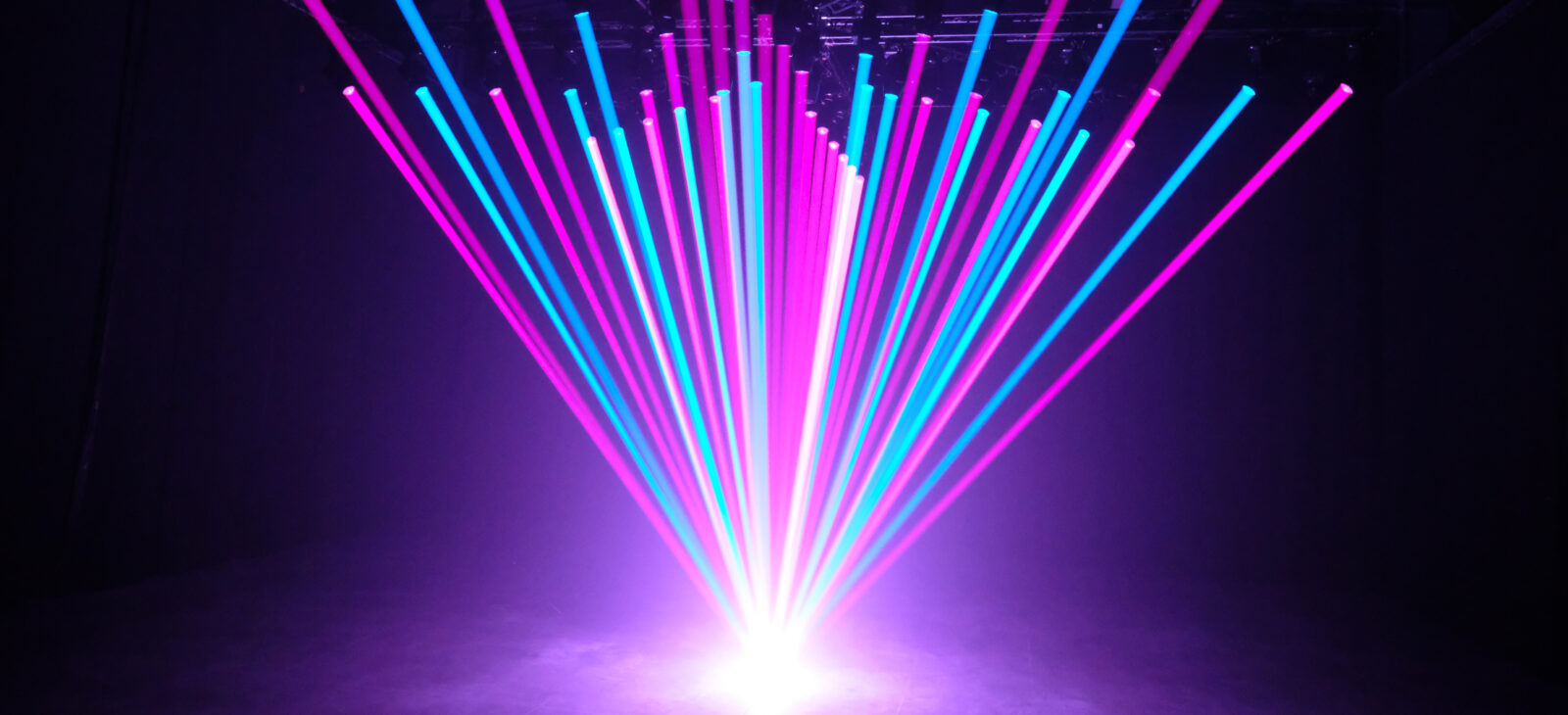

Gallery
