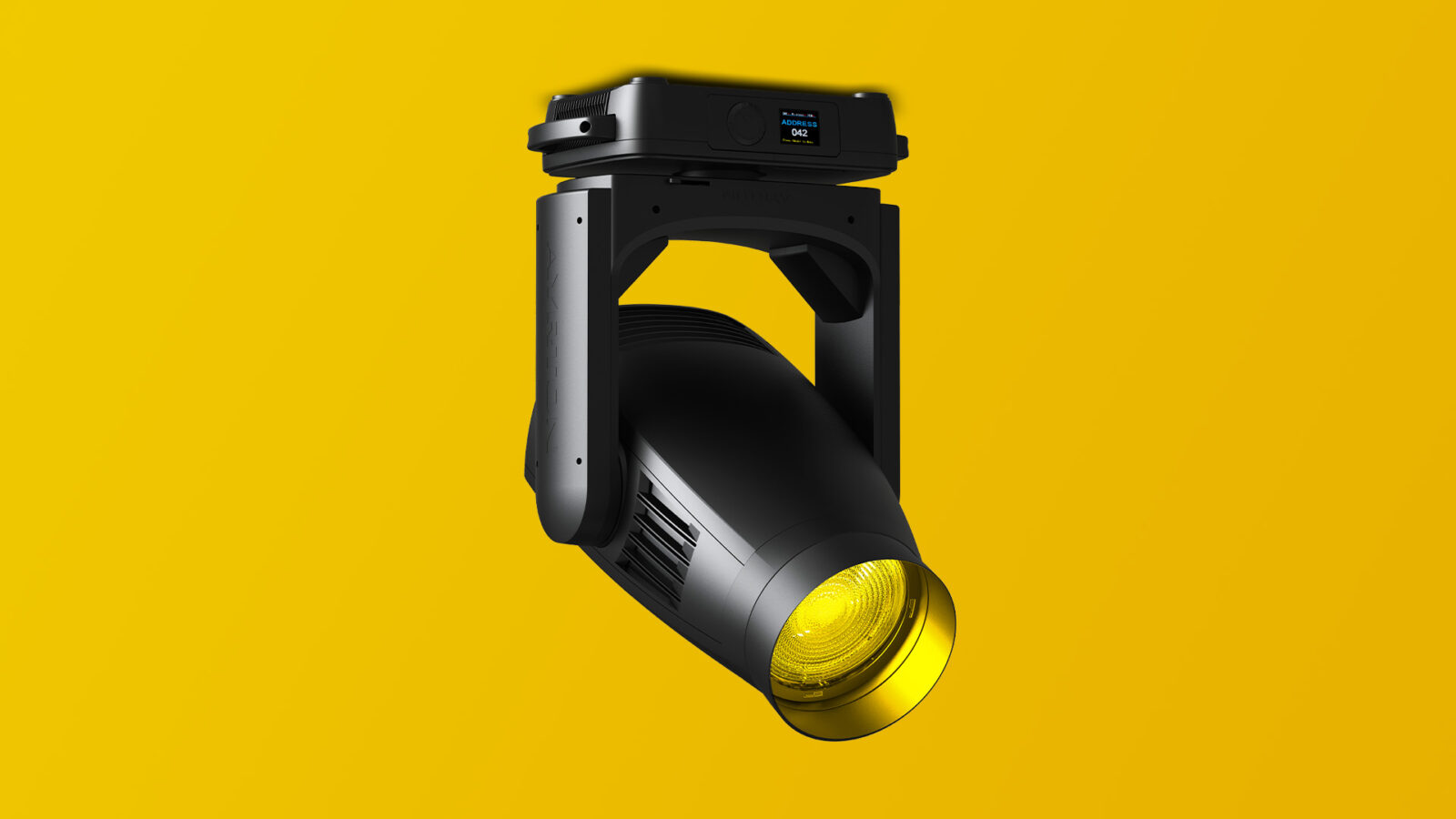

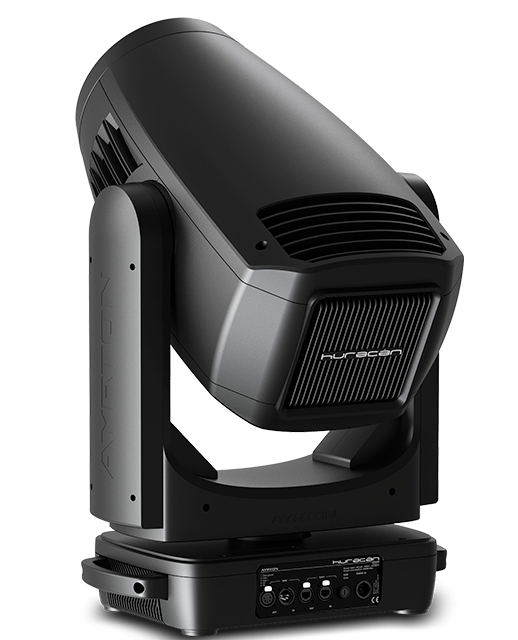

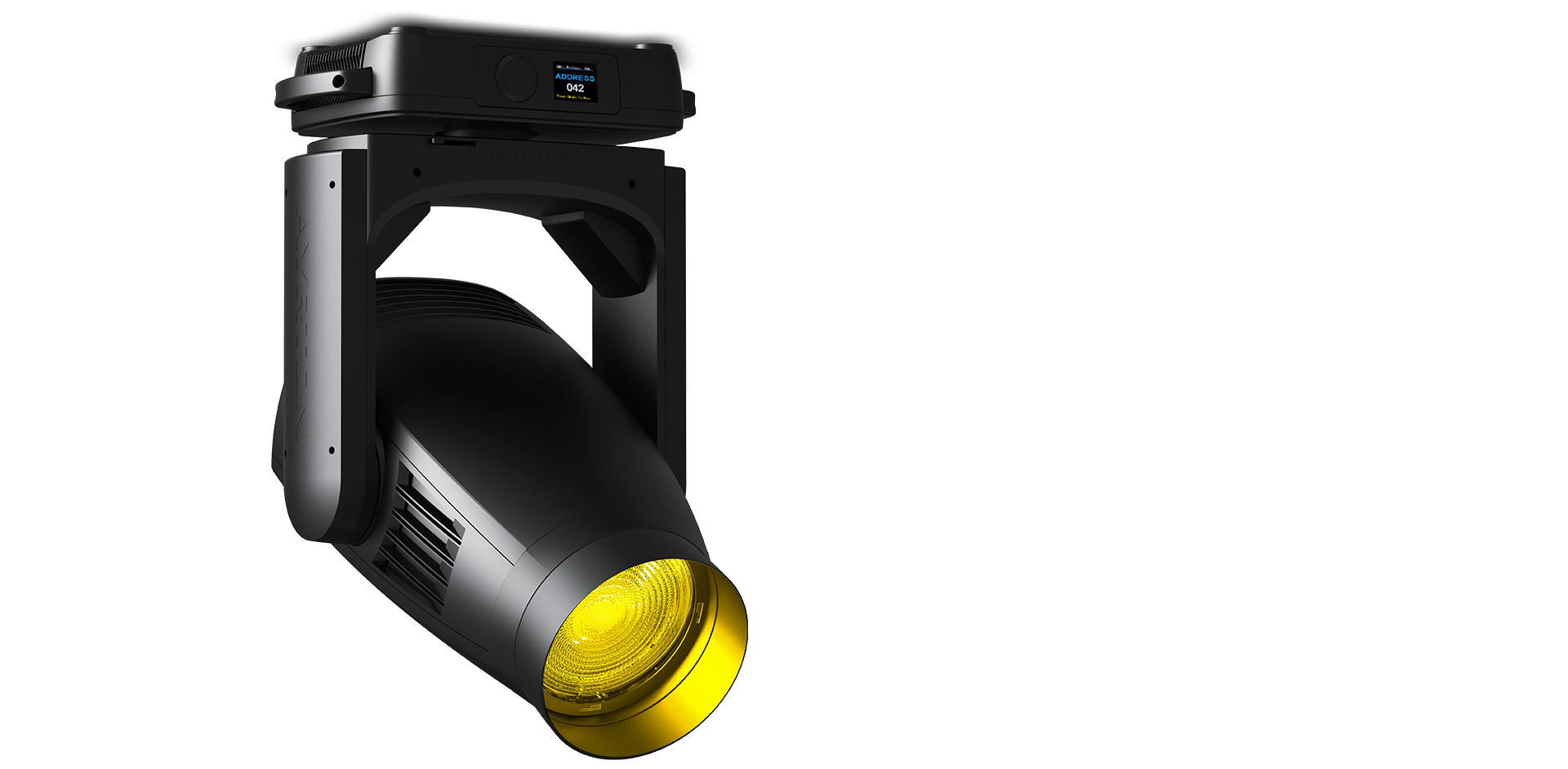

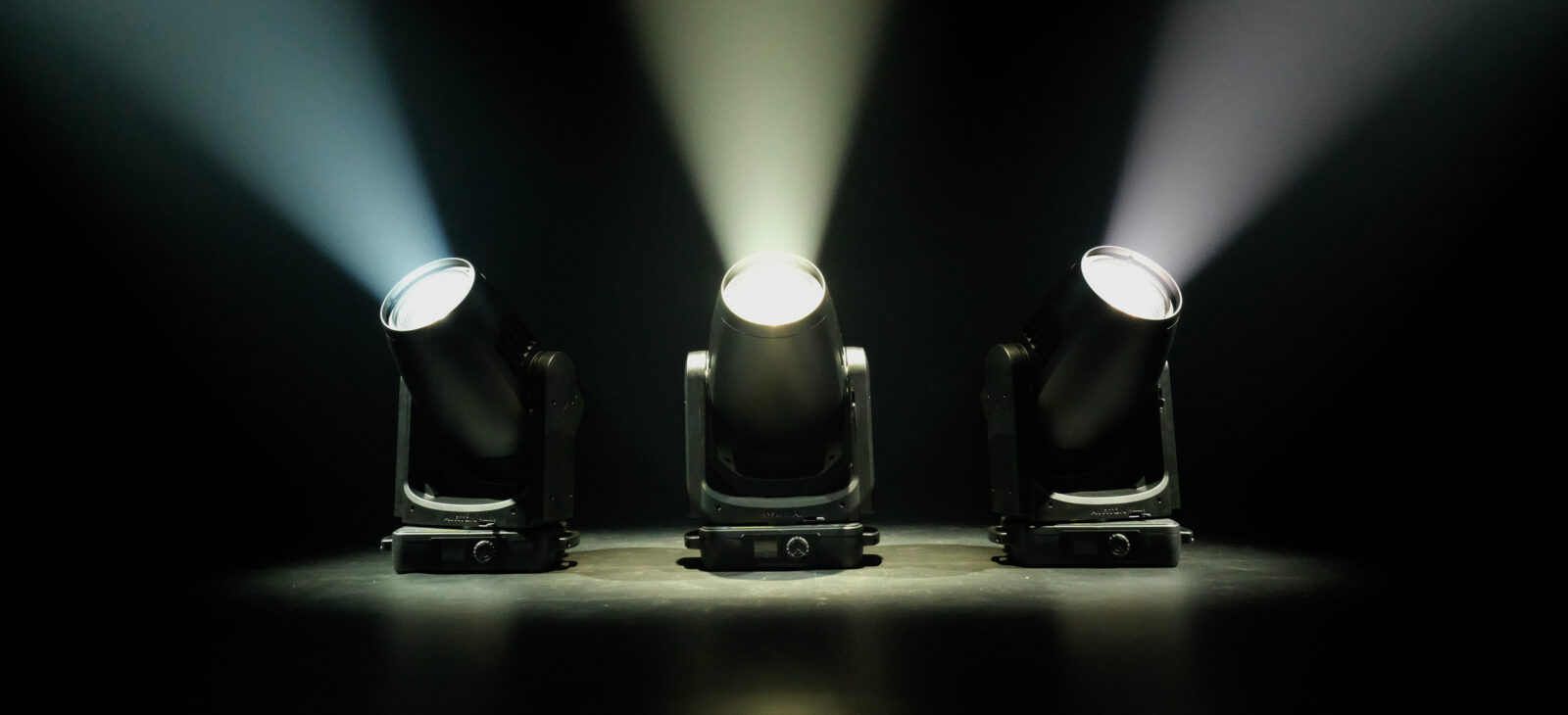

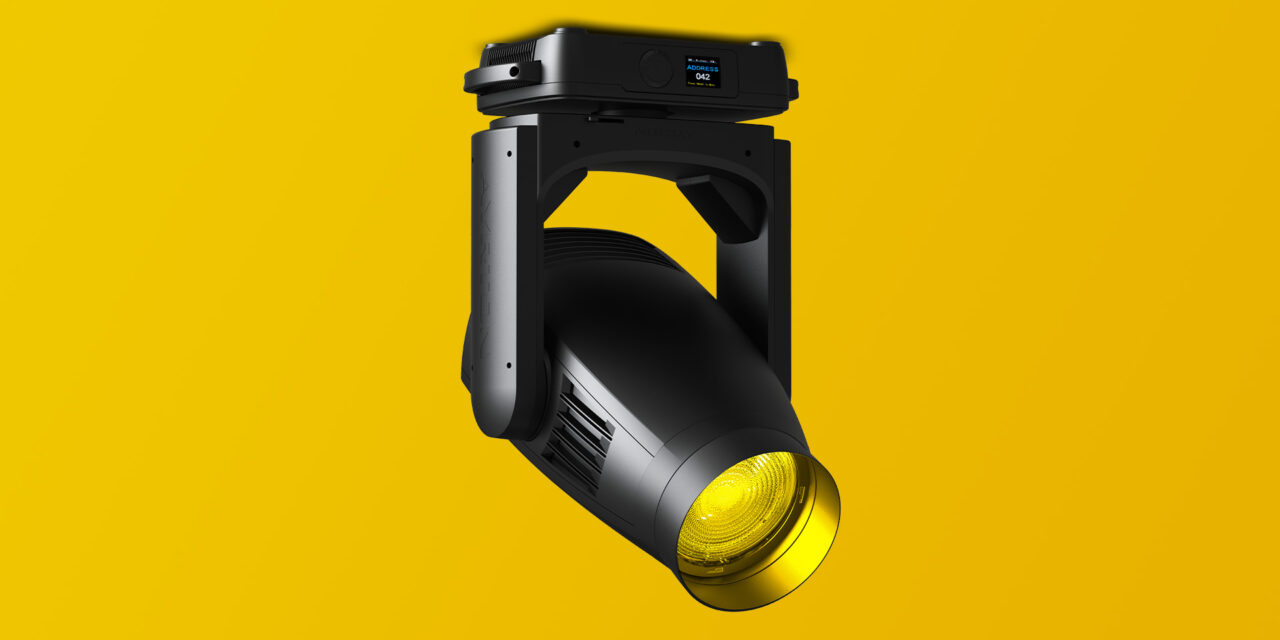

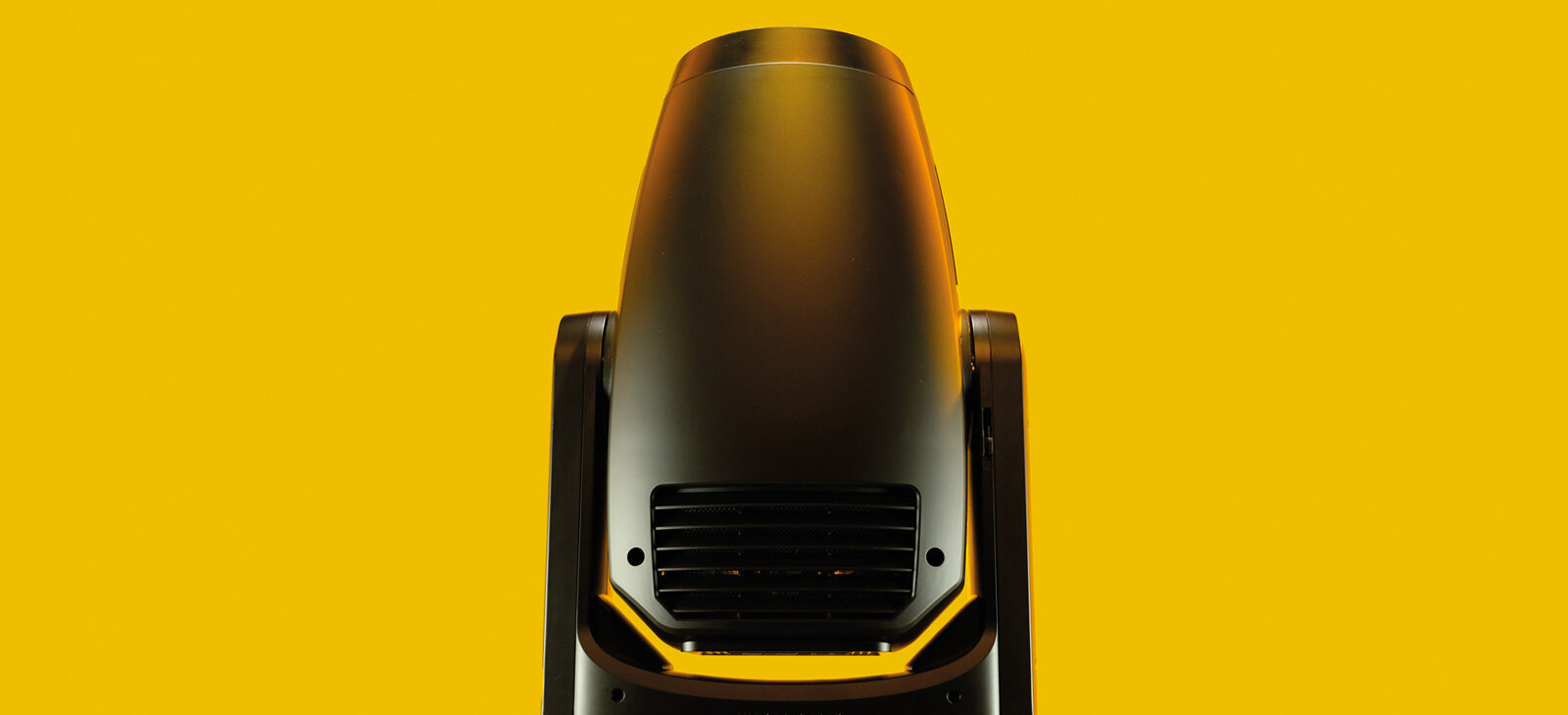

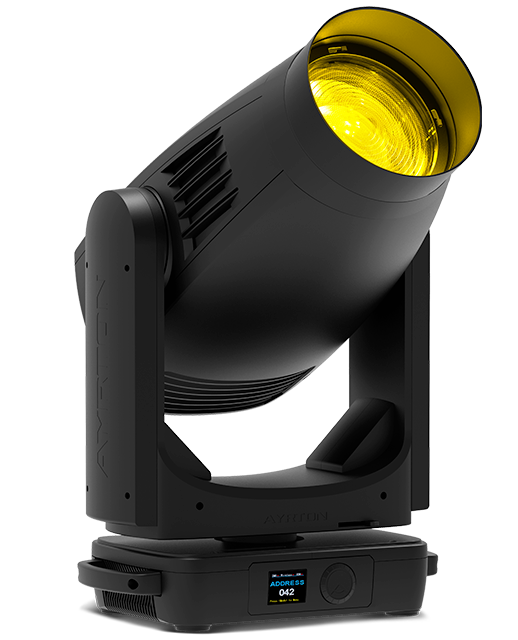

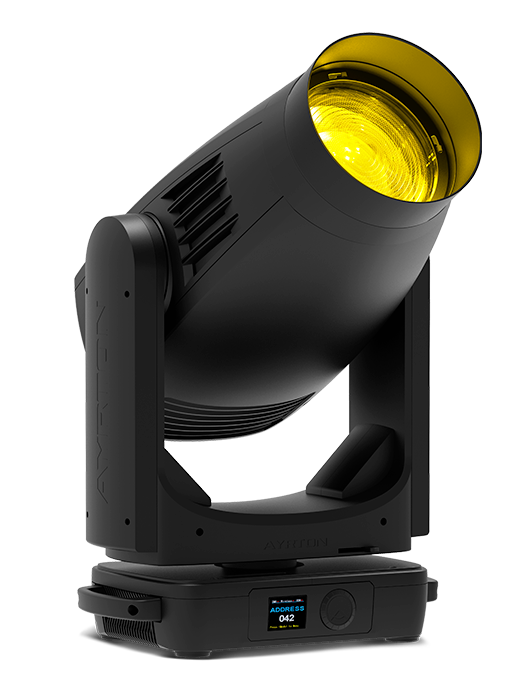

Huracán Wash

just for a thrill

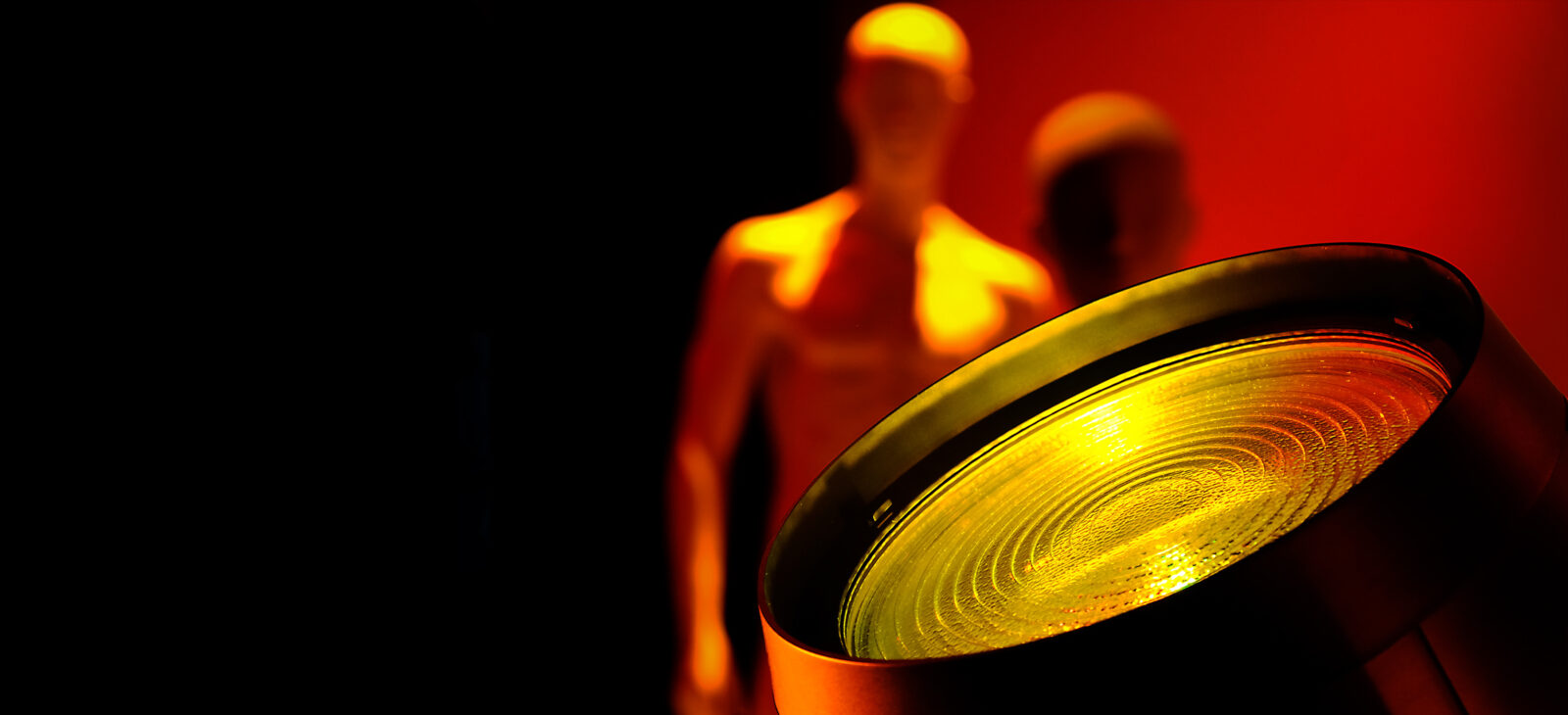

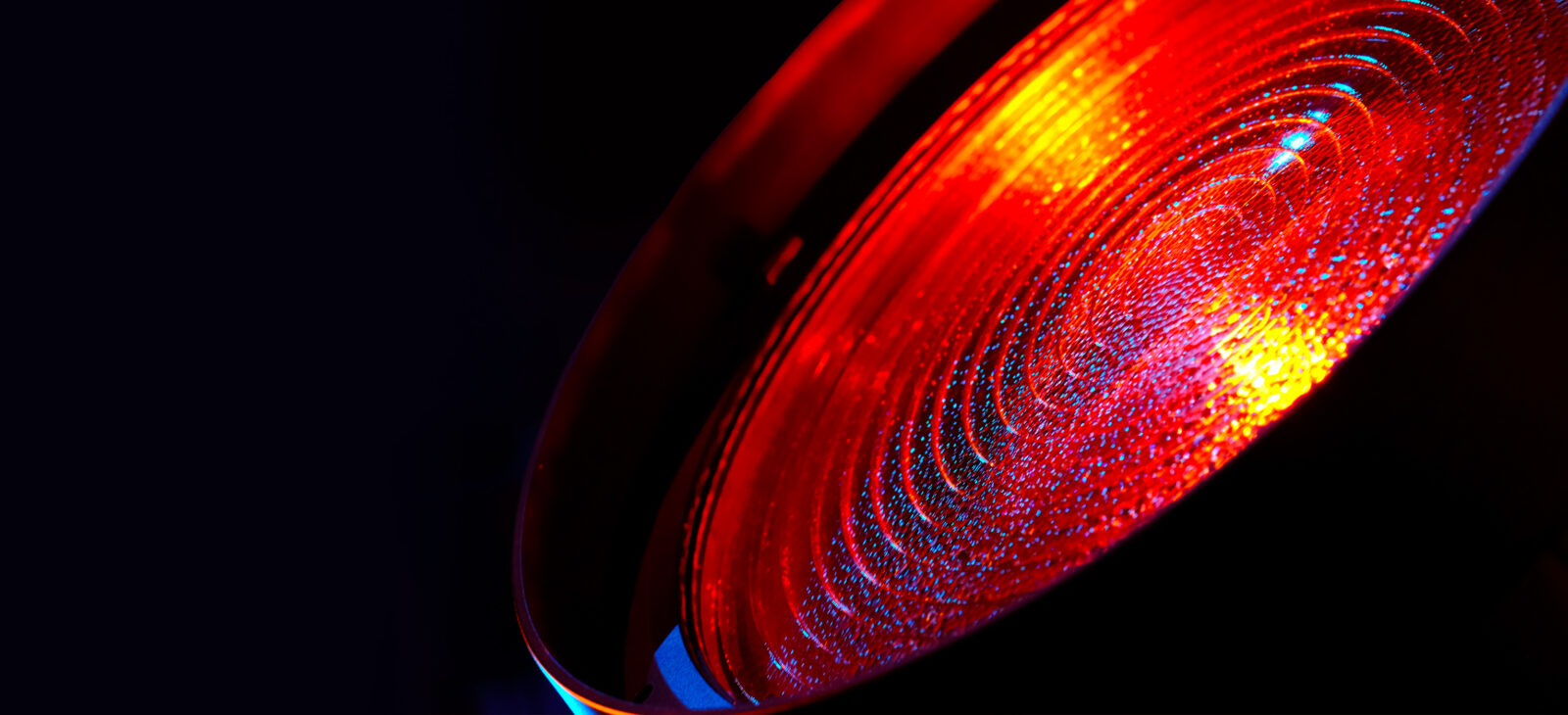

For the latest wash-type luminaire of the HURACÁN family, AYRTON has designed an entirely new Fresnel lens with an optical structure specially developed for use with framing barndoors,

also favouring use with geometric gobos or ovalisation lenses, without constraints. A subtle progressive diffusion system allows the diffusion level to be adapted according to the application and accessories or optical elements used. The Fresnel lens also significantly improves the colour mix and can obtain 10% more light than when using a conventional Fresnel lens F.O.S.. The proprietary optical system of HURACÁN WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. This new luminaire adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement. T.C.S.(patent pending).

HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST.

This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter. HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.

9 Series - Source 1000 W - 6500 K Huracán Wash ST
Lumens 52,000 Huracán Wash S
Native CRI greater than 95 Huracán Wash TC
Beam Aperture 6.2° to 75°
Front Lens 210 mm

Technical specifications

OPTICS

  • 13-element 12:1 zoom high-resolution optic system
  • Beam aperture: 6.2° (half peak) to 75° (one-tenth peak)
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 210 mm Fresnel frontal lens

LIGHT SOURCE

Huracán Wash S

  • 80,000-lumen white light engine
  • Total luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)
  • Colour temperature output: 7000 K
  • CRI: greater than 70

Huracán Wash ST

  • 68,000-lumen white light engine
  • Total luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)
  • Colour temperature output: 6500 K
  • CRI: greater than 80

Huracán Wash TC

  • 49,000-lumen white light engine
  • Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)
  • Colour temperature output: 6000 K
  • CRI: greater than 95

Huracán Wash (all versions)

  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving head range: 540° (pan), 260° (tilt)

COLOURS

  • Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
  • Variable CTB colour temperature correction
  • Variable CTO colour temperature correction
  • Variable CTP colour temperature correction
  • Fixed colour wheel with six complementary colours

GOBOS

  • Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Gobo diameter: 30.0 mm
  • Image diameter: 25.0 mm
  • Gobo thickness: 1.1 mm

FRAMING SYSTEM

  • 4 individually positionable barndoors on a 100% surface area in all positions
  • Rotation of barndoor module: +/- 60°

IRIS DIAPHRAGM

  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open

FROST

  • 0% to 100% variable linear frost

EFFECTS

  • CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
  • Indexable de-focusable rotating beam-shaping optic

DIMMER / STROBE

  • Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess-temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5-pin male and female connectors for DMX connection
  • Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
  • PowerCON TRUE1 male and female connectors for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX RDM-compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 39 to 61 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 1,470 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Super Silent Mode
  • Safety protection against temperatures excesses

HOUSING

  • Moving-head skeleton made of aluminium and steel plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (carbon)

INSTALLATION

  • Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety-cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -10° C (14° F)
  • Minimum usage distance: 3.0 m (9.84 ft)

COMPLIANCE

EU (EMC & LVD):

  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU

US (Safety & EMC)

  • UL 1573
  • FCC Part 15, Subpart B:2018

SIZE

  • Product: 494 x 788 x 294 mm (l x h x d)
  • Flight-case foam : 715 x 555 x 630 mm (l x h x d)

WEIGHT

  • Product: 42.5 kg

PRODUCT CODES

  • 011880: HURACÁN WASH S – CLASSICAL 9 SERIES
  • 011883: HURACÁN WASH ST – CLASSICAL 9 SERIES
  • 011885: HURACÁN WASH TC – CLASSICAL 9 SERIES
