PERSEO BEAM

emotion player

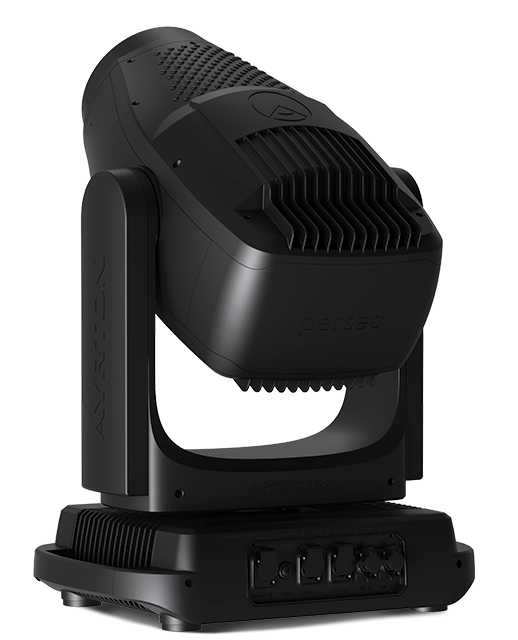

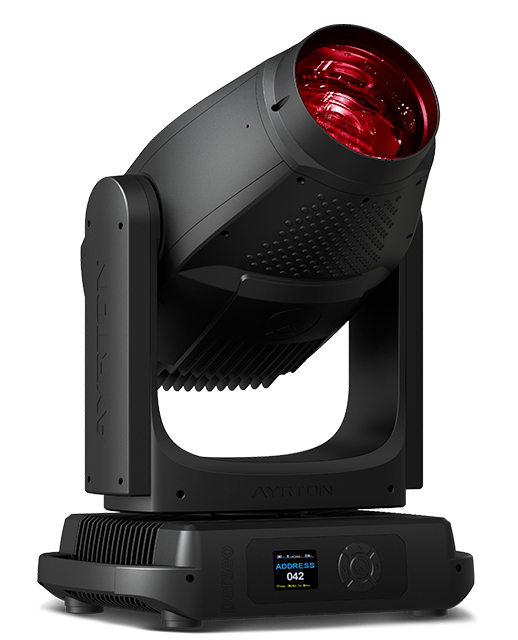

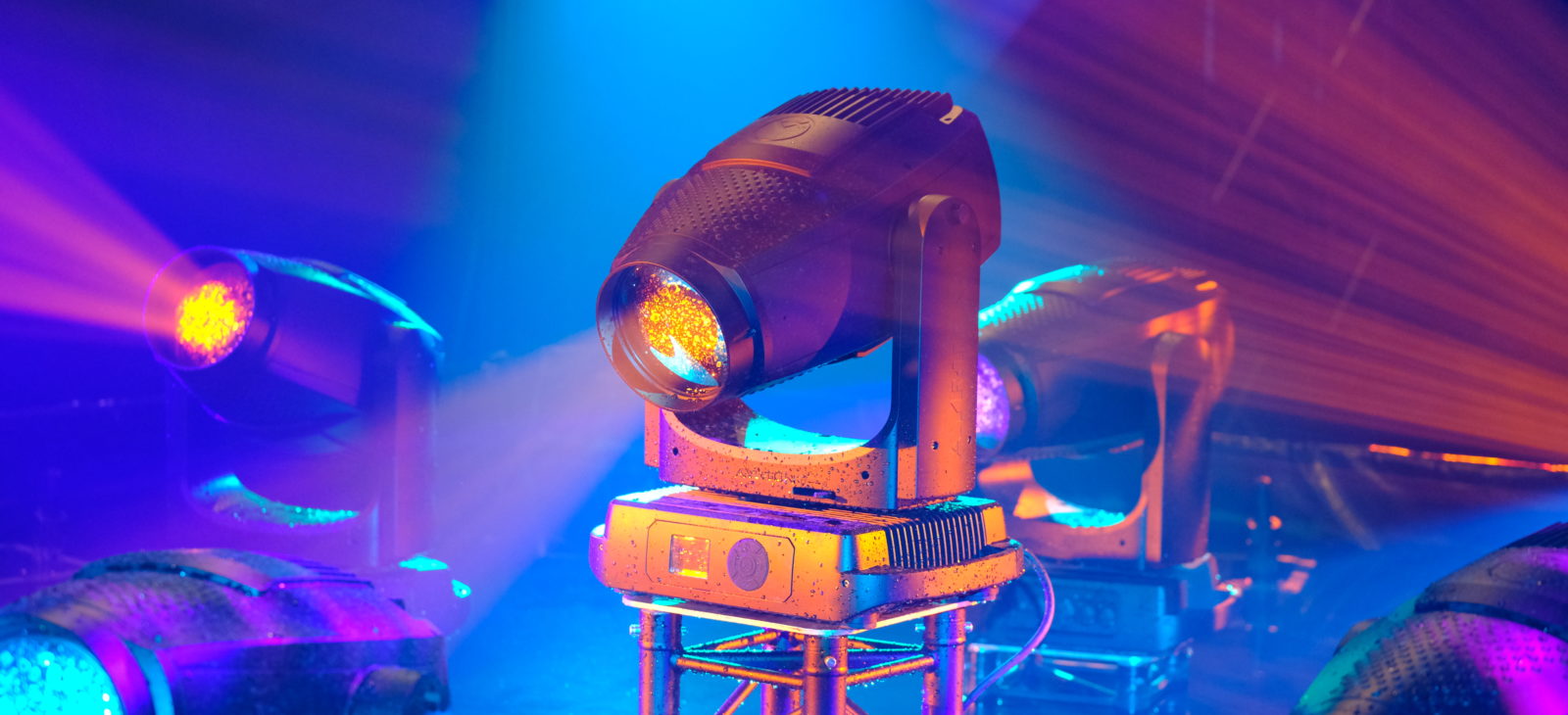

PERSEO BEAM is the first compact, waterproof multi-function beam effect LED luminaire.

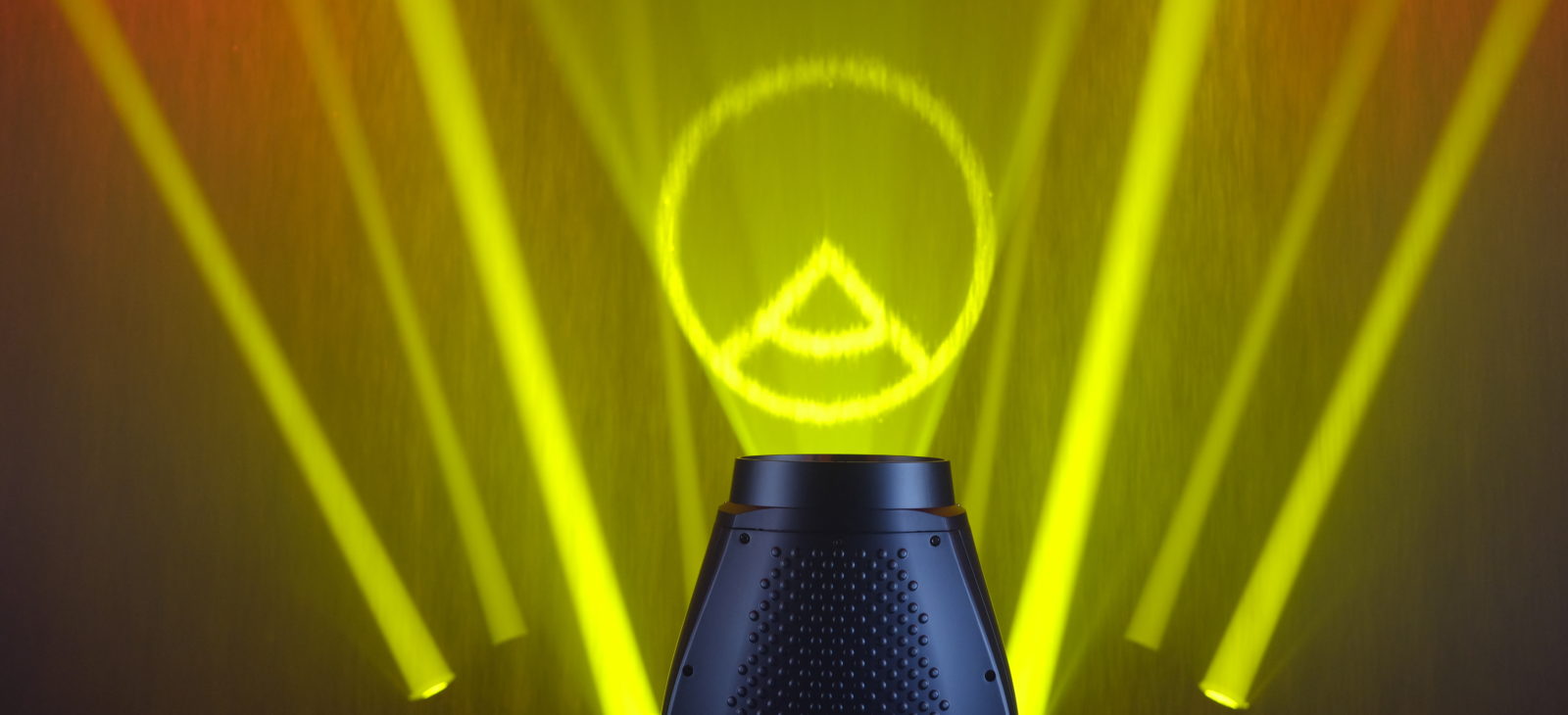

Well-suited for use indoors as well as outdoors, the fixture is equipped with an ultra-intensive 2° beam and 21x zoom ratio, making it an extraordinary tool that will help you achieve some incredibly exciting effects. PERSEO BEAM is endowed with unprecedented graphic capability, offering a wide choice of 48 fixed and rotating gobos distributed on two wheels, including 28 glass gobos for the projection of high-definition images and 20 metal gobos specifically created to sculpt light in “beam” mode. These gobos can be blended with four individually combinable rotating prisms that allow you to produce a multitude of volumetric lighting effects. An RGB/CMY multi-layer gobo lets you generate dynamic multicolour effects. An effect-wheel with continuous rotation in both directions and two frost filters complete the PERSEO BEAM tool palette. Continuous rotation of the pan movement multiplies the possibilities for creating complex effects.

PERSEO BEAM is equipped with a highly innovative colour section including a CMY colour mixing system, a progressive linear CTO,

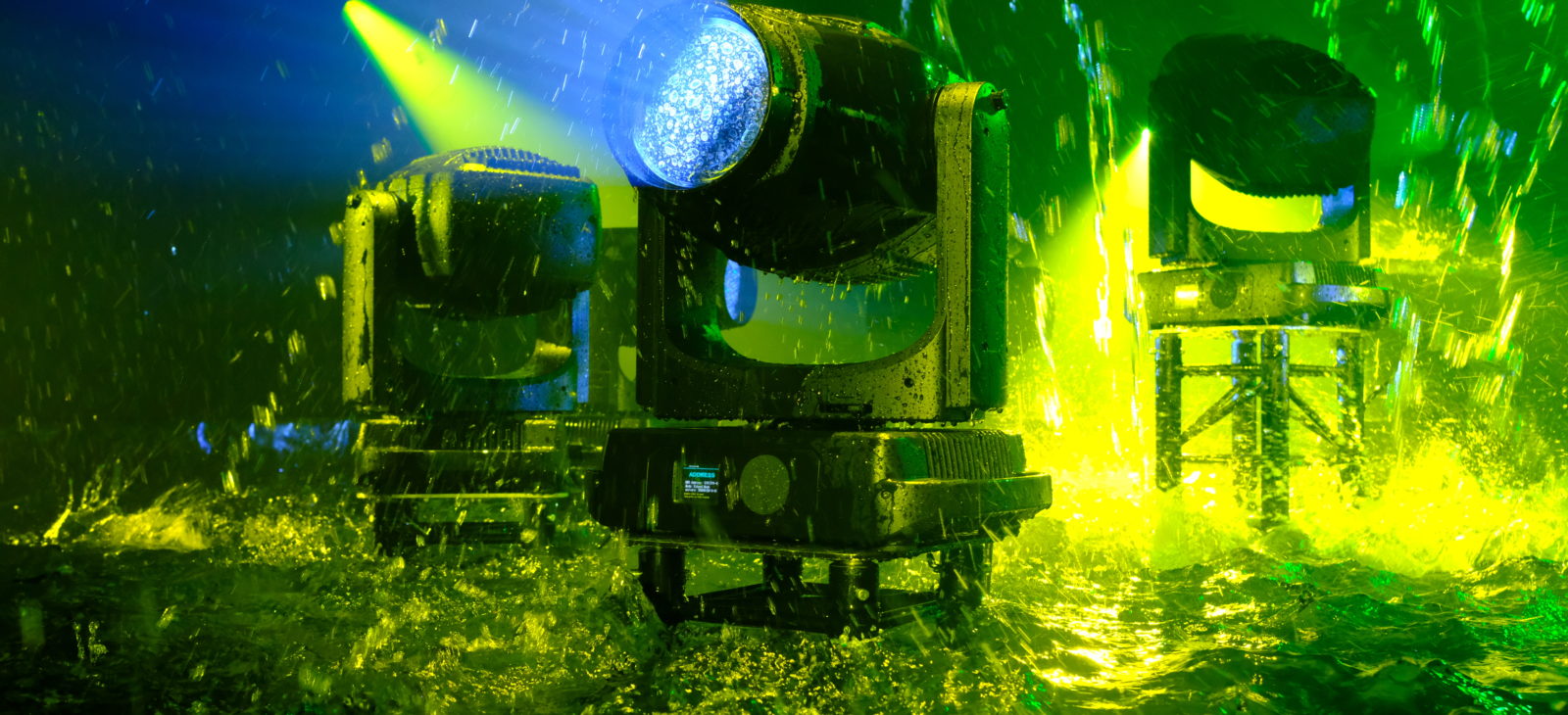

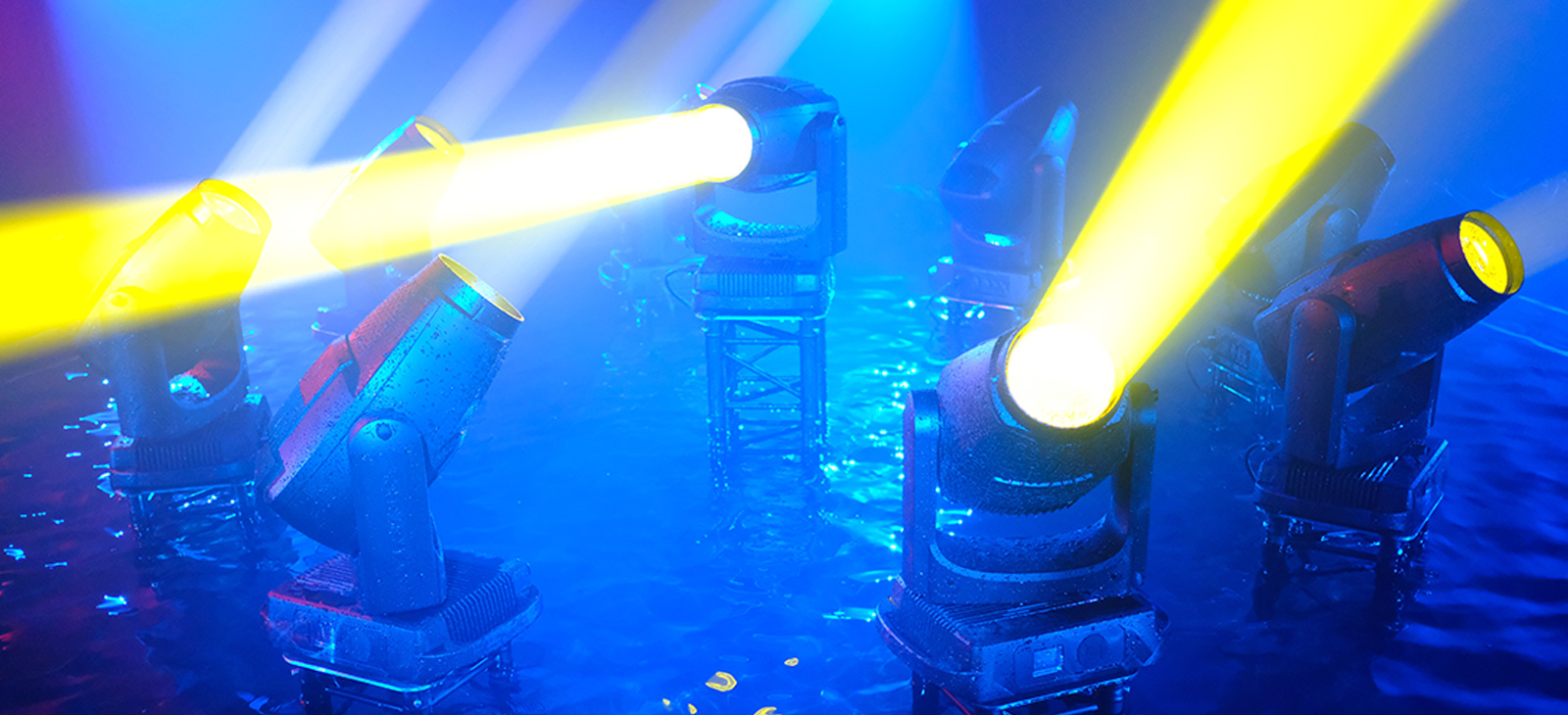

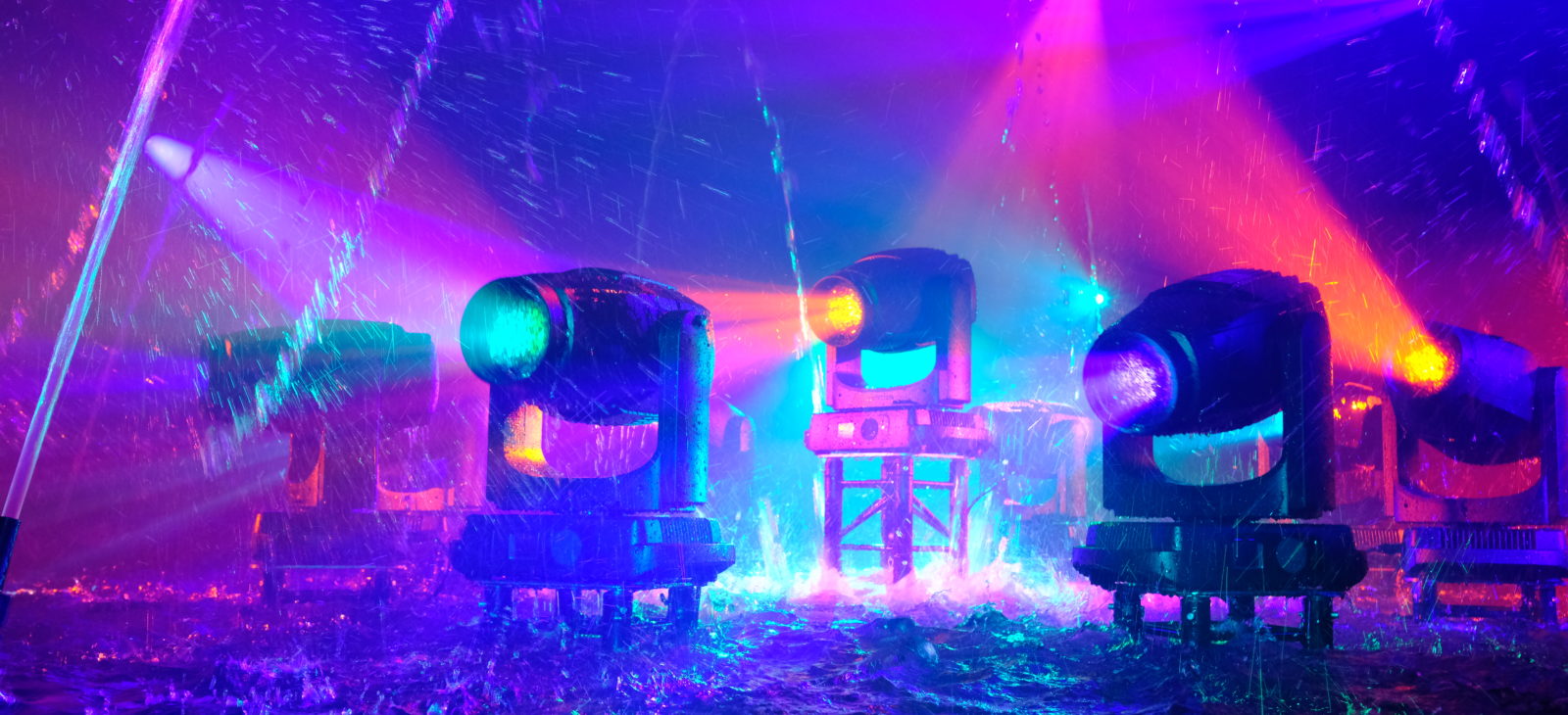

an instant-access multi-position colour wheel supplied with four colour-temperature correction filters, and 13 complementary-colour filters on two concentric circles (patent pending). Fitted with a 168 mm frontal lens, the proprietary optical system uses 13 lenses, producing a zoom range of 2° to 42°. A brand new ultra-compact 450 W monochromatic LED emitter specially developed for long-distance applications can obtain a luminous flux of 18,000 lumens at a colour temperature of 6800 K operating at a steady state. PERSEO BEAM borrows from the same minimalist design as PERSEO PROFILE, incorporating all the waterproof features while being easily accessible and lightweight. The luminaire was designed and developed to operate in the most extreme conditions and resist hot or cold temperatures, rain, sand, dust. This new creation by AYRTON allows you full expression without constraints or limits in a style that is your own.

5 Series - Source 450 W - 6800 K
Lumens 18,000
Native CRI greater than 70
Beam Aperture 2° to 42°
Front Lens 168 mm

Technical specifications

OPTICS

  • 13-element 21:1 zoom high-resolution optic system
  • Beam aperture: 2° to 42°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 168 mm frontal lens for greater performance

LIGHT SOURCE

  • 25,000 lumens, 9000 K white-light engine
  • Total luminaire output: up to 18,000 lumens                         (integrating sphere measurement, Fan mode AUTO)
  • Colour temperature output: 6800 K
  • CRI: greater than 70
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

  • Extremely accurate positioning
  • Moving-head operated with either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving-head range: infinite rotation (pan), 270° (tilt)

COLOURS

  • Sophisticated colour mixing system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with four colour temperature correction and 13 complementary colours

GOBOS

  • Indexable rotating gobo wheel with 9 high-precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Gobo diameter: 18.0 mm
  • Image diameter: 12.0 mm
  • Fixed multi-position gobo wheel with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending)
  • Image diameter: 12.0 mm

FROST

  • Heavy frost filter
  • Light frost filter

EFFECTS

  • Graphic animation effect-wheel with continuous rotation in both directions
  • Prism effect system comprising four combinable rotating prisms

DIMMER / STROBE

  • Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through a built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 5 menu buttons to set functions
  • Excess-temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • IP65 XLR 5-pin male and female connectors for DMX connection
  • IP65 RJ45 IN / OUT connectors for ArtNet™ connection
  • IP65 PowerCON TRUE1 male connector for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX RDM-compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with IP65 LCD display
  • Choice of 3 DMX modes (from 29 to 42 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 700 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Super Silent Mode
  • Safety protection against temperature excesses

HOUSING

  • Moving-head skeleton made of die-cast aluminium
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in die-cast aluminium
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP65 protection rating
  • Exterior finish: black (carbon)

INSTALLATION

  • Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety-cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
  • Minimum usage distance: 3 m (9.84 ft)

COMPLIANCE

EU (EMC & LVD):

  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU

US (Safety & EMC)

  • UL 1573
  • FCC Part 15, Subpart B:2018

SIZE

  • Product: 490 x 710 x 330 mm (l x h x d)
  • Flight-case foam: 655 x 590 x 555 mm (l x h x d)

WEIGHT

  • Product: 41.5 KG

PRODUCT CODES

  • 012470: PERSEO BEAM – 5 SERIES IP65 BEAM SPOT LUMINAIRE

Specifications subject to change without notice.
