WILDBEAM-R

THE MOST EFFICIENT COMPACT LED LUMINAIRE ON THE MARKET

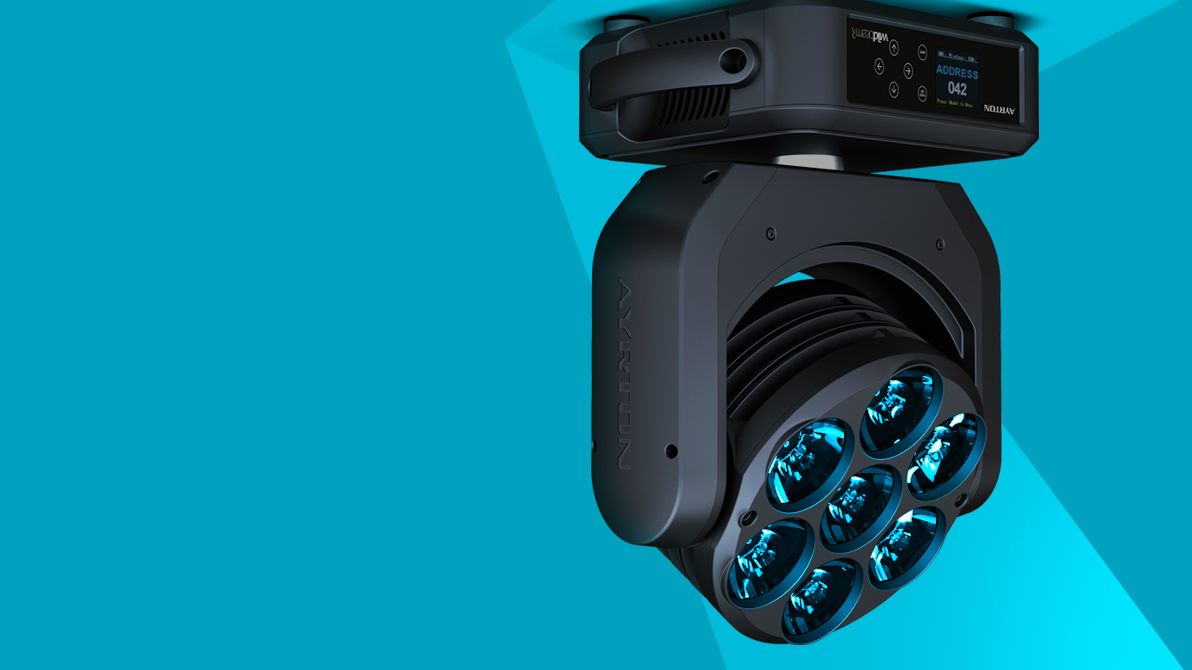

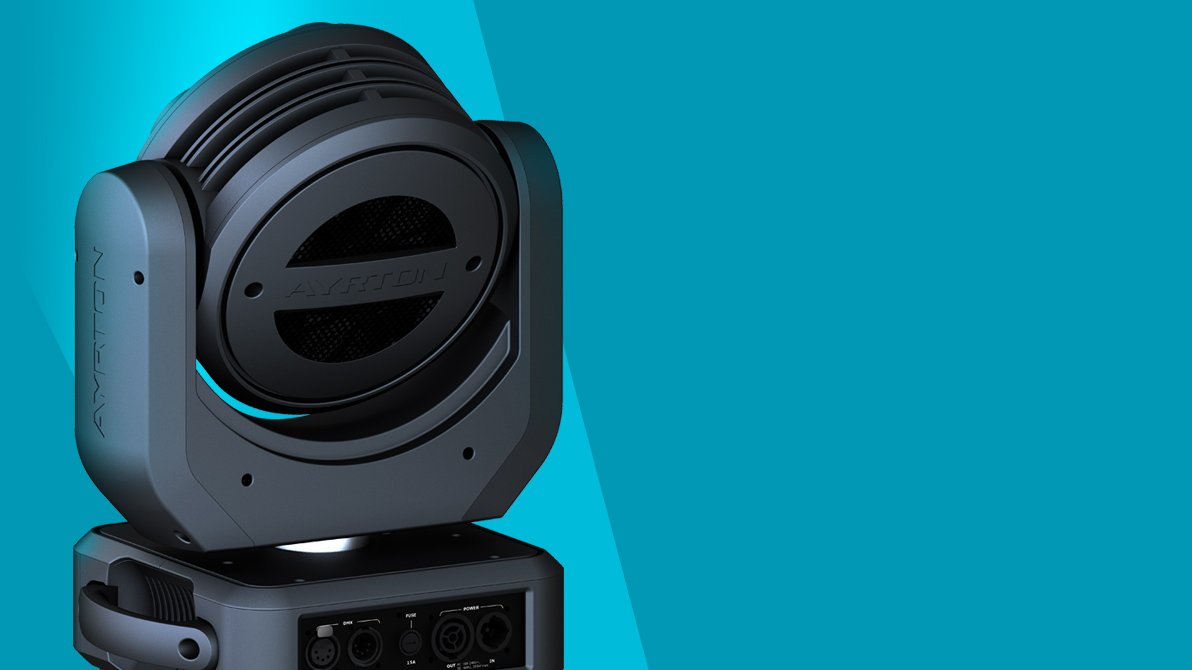

WILDBEAM™R, along with MAGICRING™R1, is the smallest luminaire in the RADICAL™ range. Highly compact, lightweight, super-fast and powerful, WILDBEAM™R is fitted with seven 15 Watt Osram Ostar RGBW LED sources, each paired with high yield 67 mm 4.5° collimated optics. Together these provide a 2,500 lumen shaft of light with a centre beam intensity of 262,500 candela. With a power consumption of only 130 Watt and a record-breaking 90% efficiency, this makes WILDBEAM™R the most efficient compact LED luminaire on the market. The distinctive arrangement of the optics and the individual control of each LED emitter affords numerous graphic effects. A multitude of dynamic, aerial colour effects can be created and the beam animated around a central point, while the crisp delineation of each component beam remains perfectly distinct.

Radically simple

An internal library of pre-programmed effects and colours is accessible through dedicated DMX channels for rapid use of the luminaire when programming time is limited.
For close-up applications, or if a wider beam is required, an optional holographic filter can be installed easily behind the front face.
WILDBEAM™R is equipped with new generation three-phase stepper motors that allow the quick and precise movement essential for WILDBEAM™R’s performance. These extremely compact new motors fit perfectly into the minimalist design of the luminaire.

VIDEO

CATALOGUE

TECHNICAL SPECIFICATIONS

OPTICS
• Beam aperture: 4,5°
• 85% optic efficiency
• High-efficiency 67 mm PMMA optics

LIGHT SOURCE
• 7 multi-chip 15 Watt LED sources
• Light output: up to 2,500 lumen
• Luminous intensity: 262,500 cd
• Rated sources life: up to 50,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8 or 16 bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning
• Moving-head range: 540° (pan), 270° (tilt)

COLOURS
• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed

DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FACILITIES
• Local DMX addressing of the luminaire and its optional parameters through its built-in LCD panel control
• Remote DMX addressing of the luminaire and its optional parameters through a standard RDM DMX controller
• Built-in pattern effects with speed and fade controls for scenic applications
• Information menu including hour counter, temperature, software version

HARDWARE FACILITIES
• Graphic LCD display for addressing and special functions settings, with flip function
• 6 menu buttons to set the functions
• Over temperature protection
• XLR 5 pin male and female connectors for DMX connection
• PowerCON TRUE1 male and female connectors for power connection

CONTROL
DMX 512 protocol, through DMX cable
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
Local control panel, with LCD display
Choice of 3 DMX modes (from 16 to 42 DMX channels)

POWER SUPPLY
• Electronic supply with active PFC
• 110 to 240 Volts – 50/60Hz
• Power 130 Watt max

COOLING SYSTEM
• Advanced cooling system
• Self adjusting variable speed fans for quiet operation (Auto mode)
• Selectable auto, stage & studio ventilation modes
• Safety protection against temperatures excesses

HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium, satin finish
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• IP20 protection rating
• Exterior finish: black (Carbon)

INSTALLATION
• Fastening brackets system: one Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: two ¼ turn locking fittings allowing installation of Omega bracket on luminaire
• Safety cable attachment point

OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45°C (113°F)
• Minimum permitted ambient temperature (Ta min): -10°C (14°F)
• Minimum usage distance: 1.25 m (4.1 ft)

COMPLIANCE
EU (EMC)
• EN 55015 (2006) – EN 55015 A2 (2009)
• EN 61547 (2009) – EN 61000-3-2 (2006)
• EN 61000-3-2 A2 (2009) – EN 61000-3-3 (2008)
EU (LVD)
• EN 60598-1 (2008) – EN 60598-2-17 (1989)
• EN 60598-2-17 A2 (1991)

SIZE
• Product: 288 x 379 x 220 mm (l x h x d)
• Flight-case foam: 350 x 410 x 280 mm (l x h x d)

WEIGHT
• Product: 8.7 KG

PRODUCT CODES
• 013150: WILDBEAM-R AUTOMATED LUMINAIRE

LEGAL
• WILDBEAM is AYRTON registered Trademark
• WILDBEAM-R is a patented model
