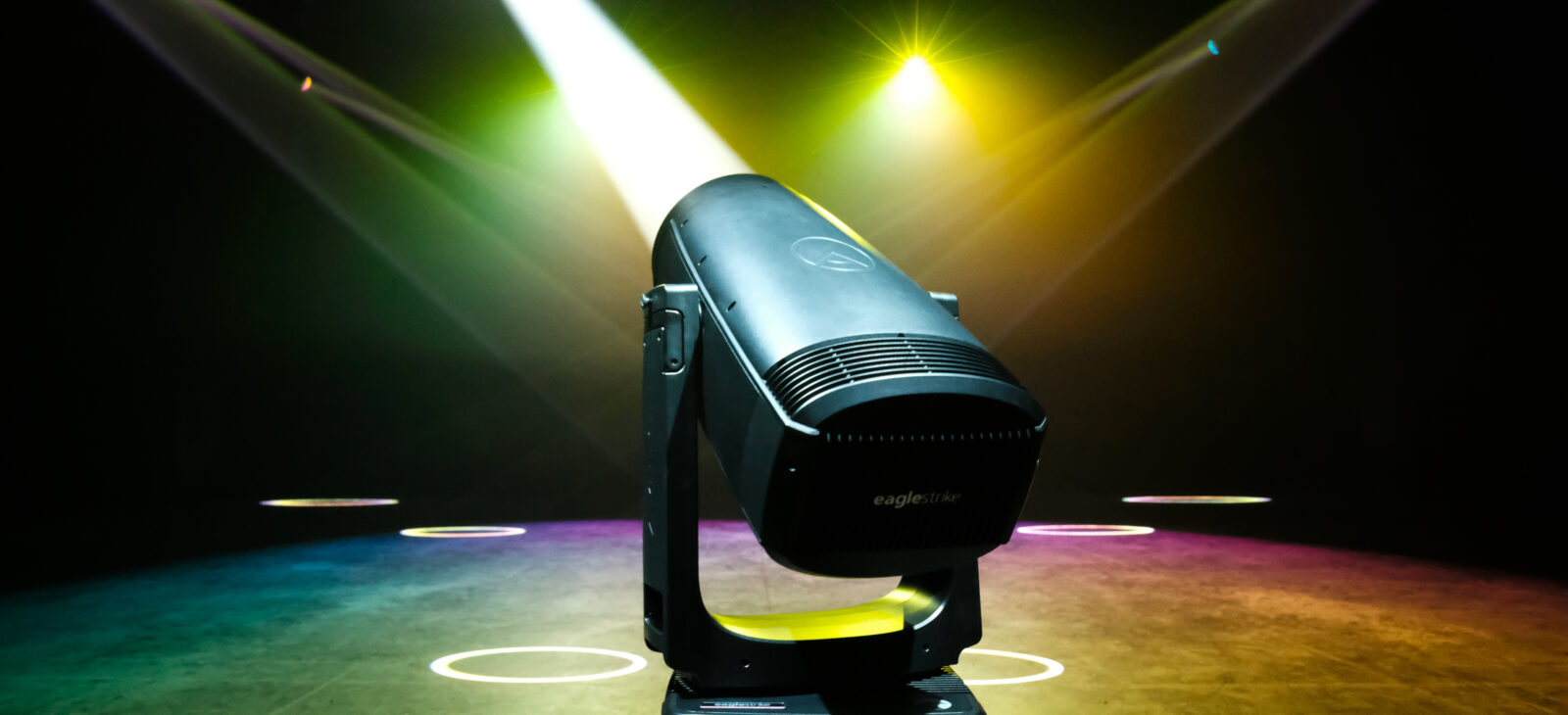

EagleStrike LT
followmenal

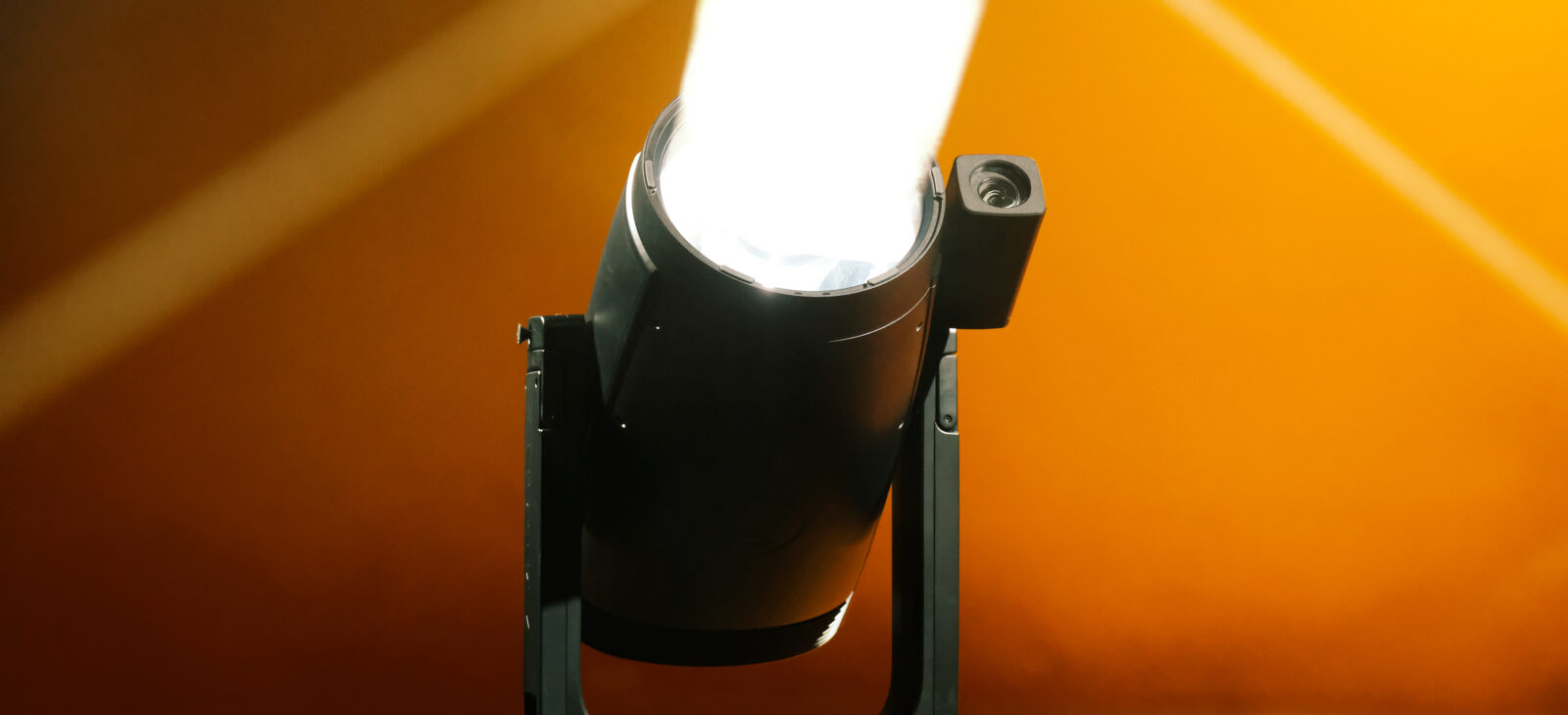

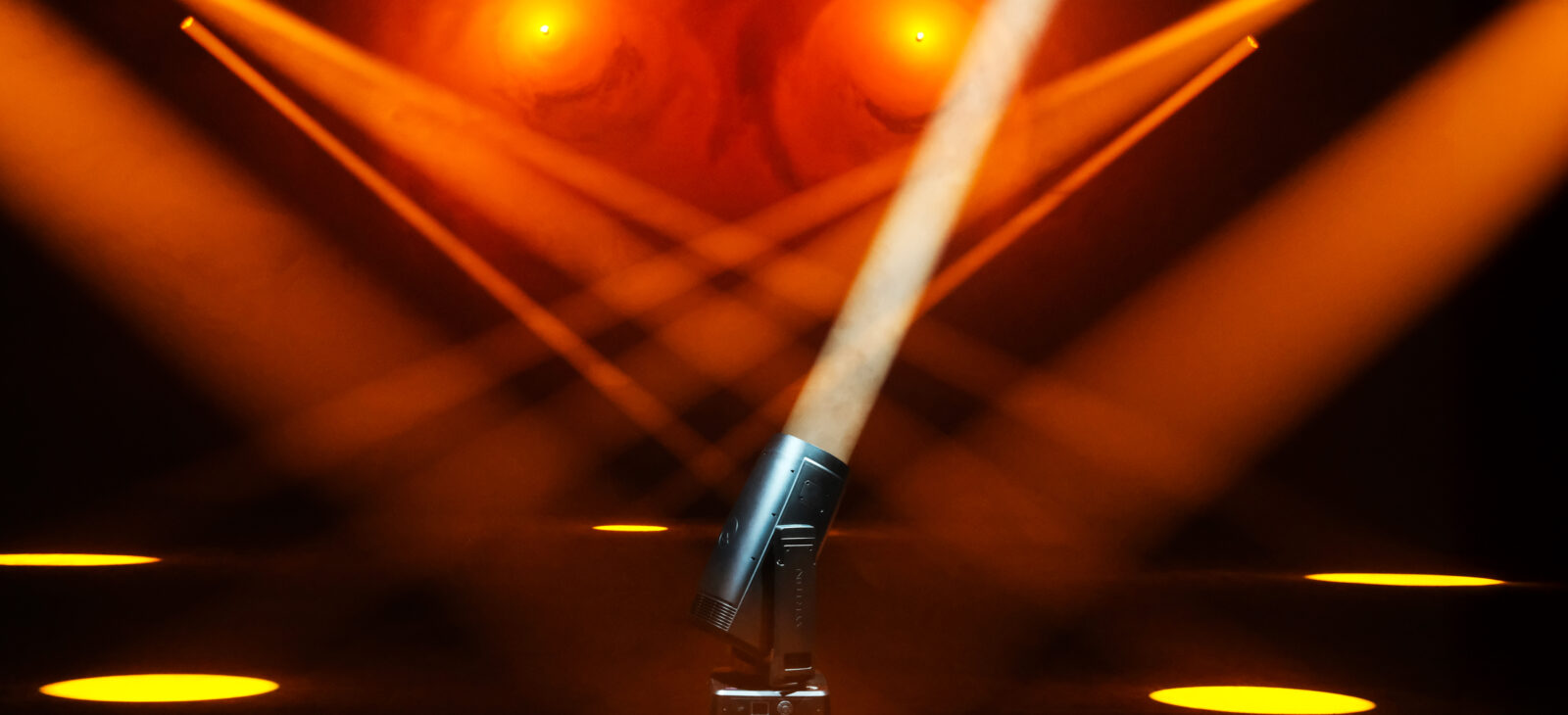

EagleStrike was born from a bespoke request for a signature luminaire. It stands as the first LED-source followspot in Ayrton’s range, engineered for intensive outdoor use across long distances where precision is paramount.
. An optional camera transforms EagleStrike into a fully automated tracking spotlight. To create this uncompromising and unmatched extreme-luminaire, Ayrton developed an oversized 270 mm front lens weighing 7.7 kg, delivering an ultra-intense 2.9 ° beam. Its proprietary 13-lens optical system offers a 15:1 zoom ratio and a working range of 2.9 ° to 43 °, with the ability to narrow the beam to 0.9 ° or 2.5 ° using dedicated gobo reducers. Equipped with a brand-new high-efficiency 1,200-watt LED module, EagleStrike outputs a luminous flux of 55,000 lm at a colour temperature of 6500 K, and achieves a record-breaking illuminance of over 100,000 lux at 10 metres. The fixture introduces an entirely new ultra-fast CMY flag-based colour mixing system, capable of matching the speed of Ayrton’s ‘ultimate’ series luminaires. A progressive CTO offers subtle tuning from 2900 K to 6500 K. The colour section includes six complementary colour filters, two CRI enhancement filters, one minus green, one gobo correction and one multi-colour filters.
EagleStrike features a full-framing system with precise blade positioning across 100 % of the field, and +/- 90 ° rotation, allowing users to frame any object regardless of the luminaire’s orientation.

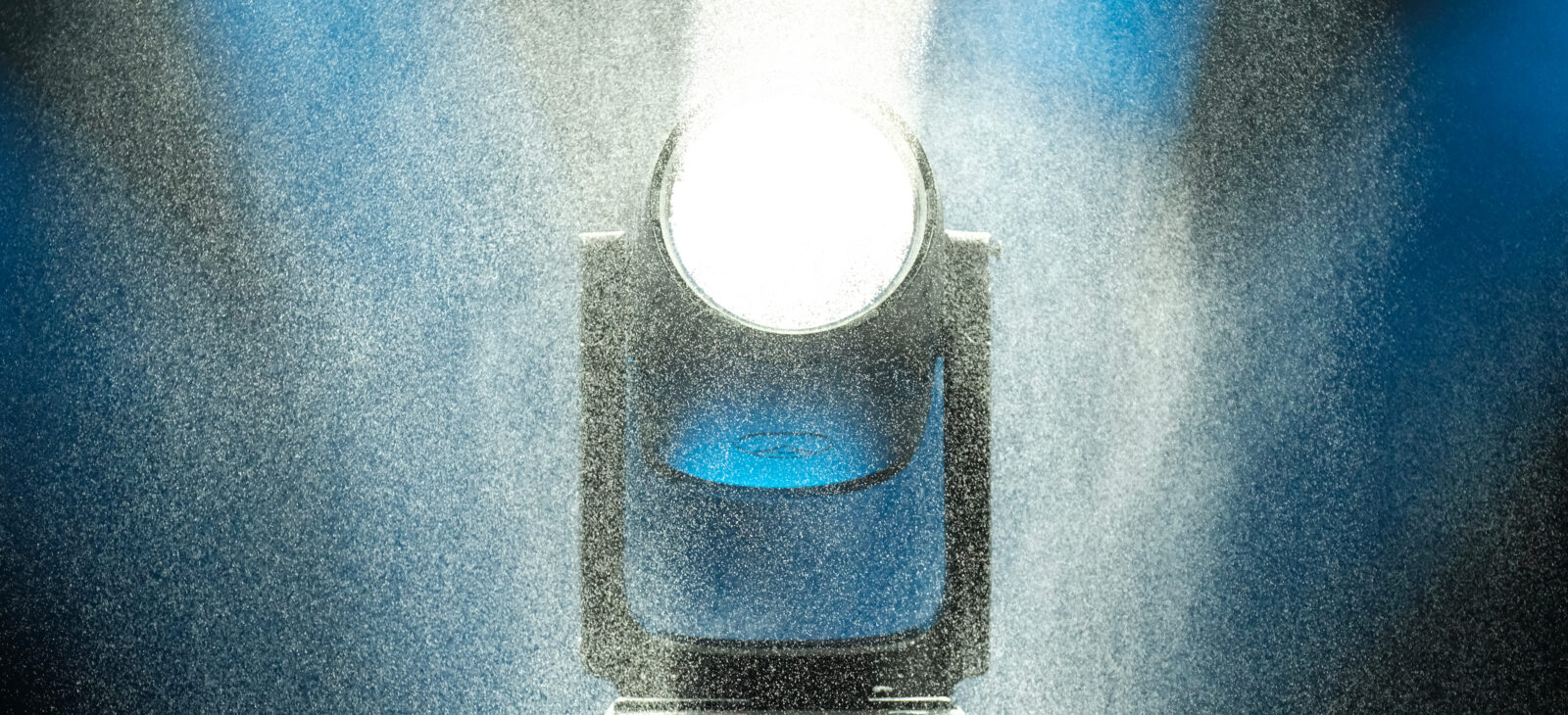

The effects section combines two overlaying rotating gobo wheels, each equipped with seven gobos, a 15-blade iris diaphragm, and a single-colour effects wheel. Designed with a range of optical tools for sculpting the light, EagleStrike includes two Frost filters—one with light diffusion that softens edges without altering the beam angle, and a high-diffusion variant for wash applications—as well as two combinable rotating image-multiplier prisms: a 4-facet linear and a 5-facet circular. Its minimalist design integrates all waterproofing features while maintaining full access to internal components. A next-generation oversized cooling system ensures high efficiency, featuring three submersible fans located outside the sealed housing. Continuous rotation on the pan axis expands creative potential and facilitates use in automatic followspot mode. EagleStrike will exceed your expectations
Performance
Technical specifications
OPTICS
- 13-element 15:1 zoom high-resolution optic system
- Beam aperture: 2.9 ° to 43 °
- Beam reducer : 0.9 ° & 2.5 °
- Tempered anti-reflective coated lenses

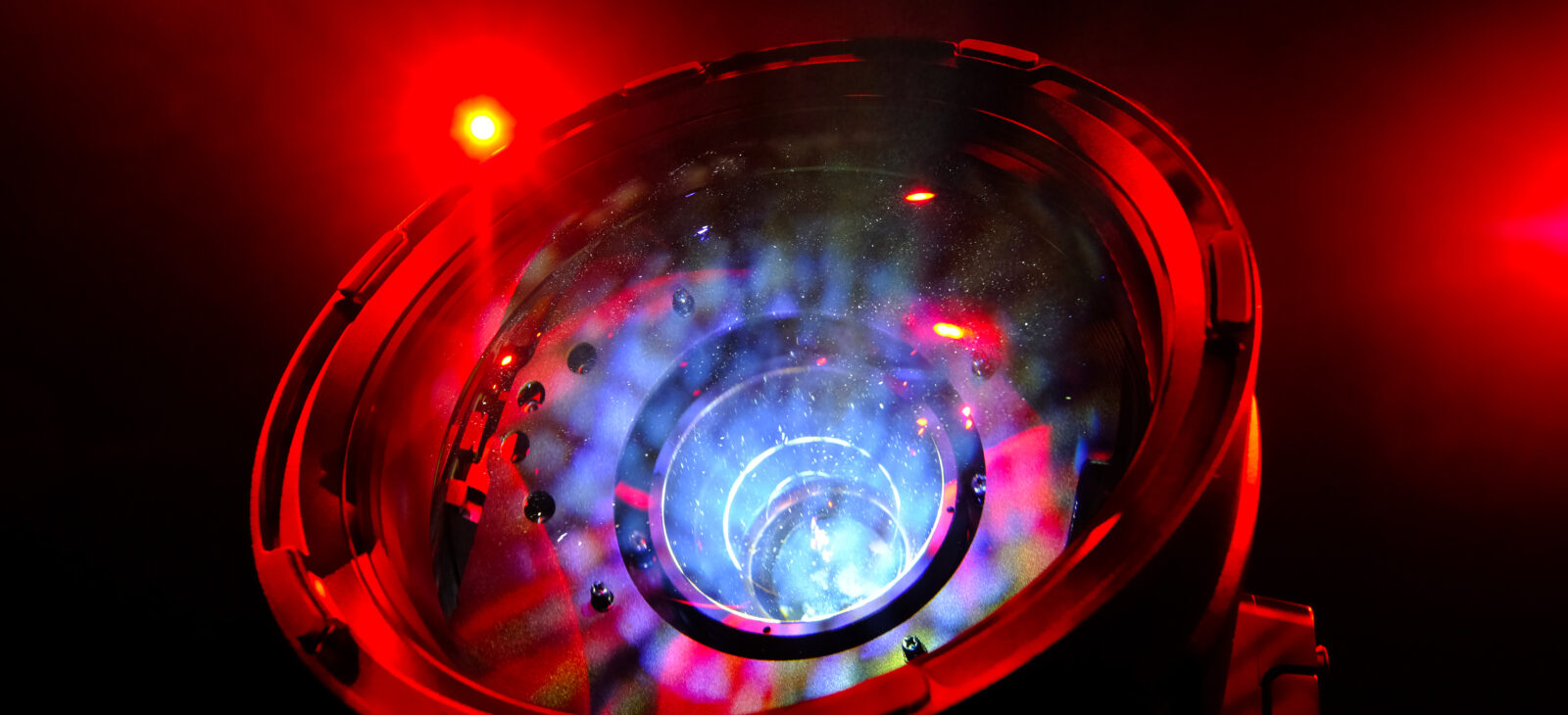

- Oversize 270 mm frontal lens for greater performance
LIGHT SOURCE
- 82,000 lumens white light engine
- Total luminaire output: up to 55,000 lumens (integrating sphere measurement, Stage Fan mode)
- Lux at 10 m: over 100,000 lx (narrow angle)
- Colour temperature output: 6500 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- Pan and tilt automatic repositioning
- Moving-head range: infinite (pan), 270 ° (tilt)
COLOURS
- Sophisticated colour mix system providing CMY colour mixing
- Variable CTO colour temperature correction
- Fixed colour wheel with six complementary colours
- Fixed colour wheel with two CRI optimisation filters, a minus green, a gobo correction and multicolour filters
GOBOS
- Indexable rotating gobo wheel with five high precision glass gobos, 2 beam reducers plus open position
- Indexable rotating gobo wheel with five metal gobos, 2 multicolor filters, plus open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 30 mm
- Image diameter: 19 mm
- Gobo thickness: 1.1 mm (Glass gobo), 0.5 mm (Metal gobo), 2.2 mm (Multicolour gobo)
FRAMING SYSTEM
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the shutter blades module: +/- 90 °
IRIS DIAPHRAGM
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
FROST
- Light frost (1 °) to soften the edge of the beam
- Heavy frost (5 °) for Wash effects
EFFECTS
- Focusable graphic animation effect-wheel with continuous rotation in both directions
- 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
HARDWARE FEATURES
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet and sACN connection
- IP65 RJ45 for optional NDI Camera
- IP65 PowerCON TRUE1 male connector for power connection
- Option for an IP65 NDI Camera holder
CONTROL
- DMX 512 protocol, through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 2 DMX modes (from 44 to 66 DMX channels)
POWER SUPPLY
- Electronic power supply with active PFC
- 120 to 240 Volts – 50/60Hz
- Power: 1,450 W maximum
- Power: 1,295 W typical consumption at 230 V
COOLING SYSTEM
- Advanced high-performance cooling system
- IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes including Super Silent Mode
- Safety protection against excess temperature

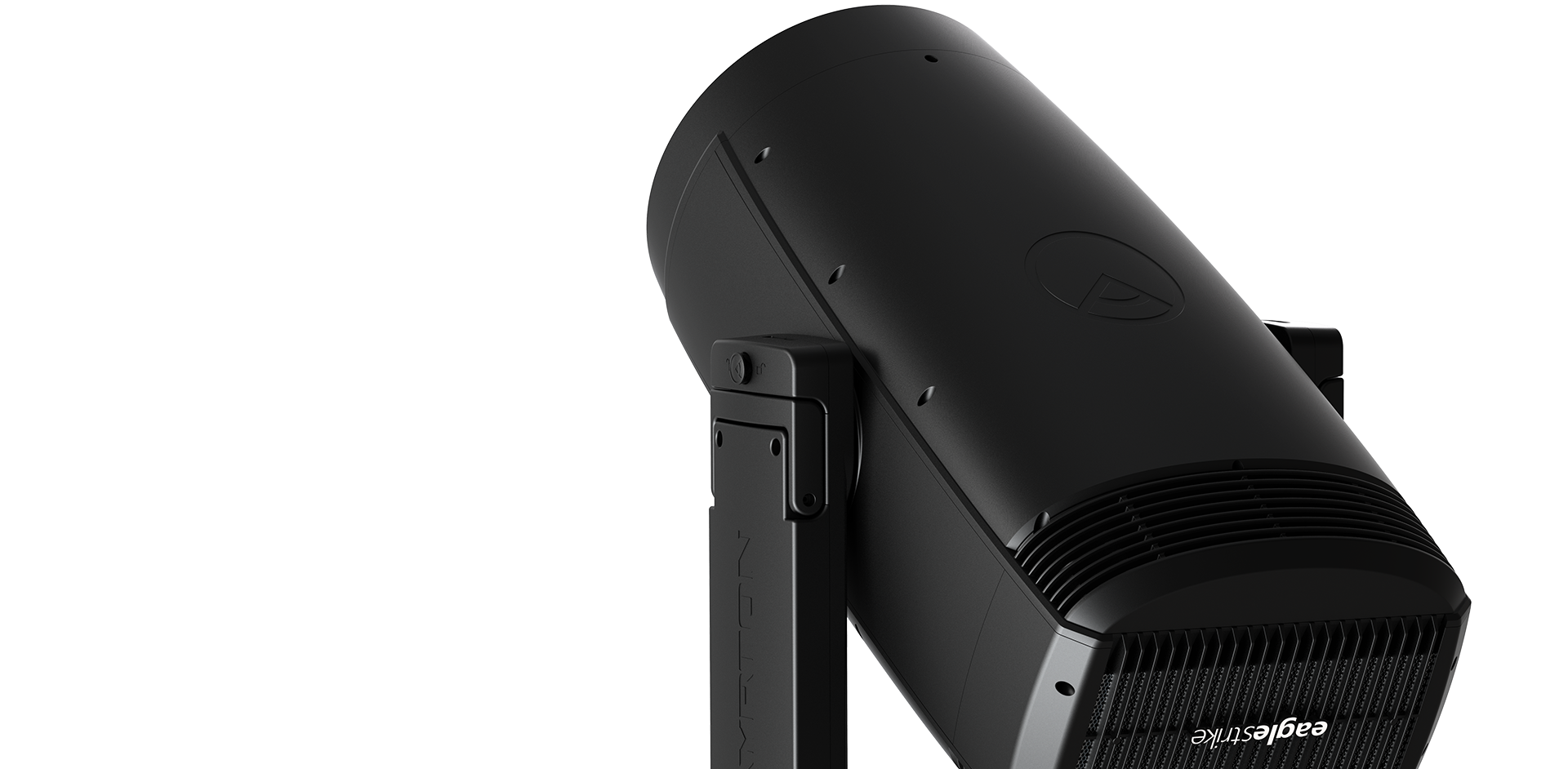

HOUSING
- Moving-head skeleton made of aluminium and steel metal plates
- Head in die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Four-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
- Minimum usage distance: 6 m (19.68ft)
COMPLIANCE
EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573
- FCC Part 15, Subpart B:2023
Substance regulations
- RoHS
- REACH
- CP65
SIZE
- Product: 450 x 898 x 413 mm (l x h x d)
- Flight-case foam: 770 x 690 x 560 mm (l x h x d)
WEIGHT
- Product: 54.7 kg
PRODUCT CODES
- 012840: EagleStrike – Classical IP65 9 Series
- 042840: EagleStrike – Camera Enclosure
