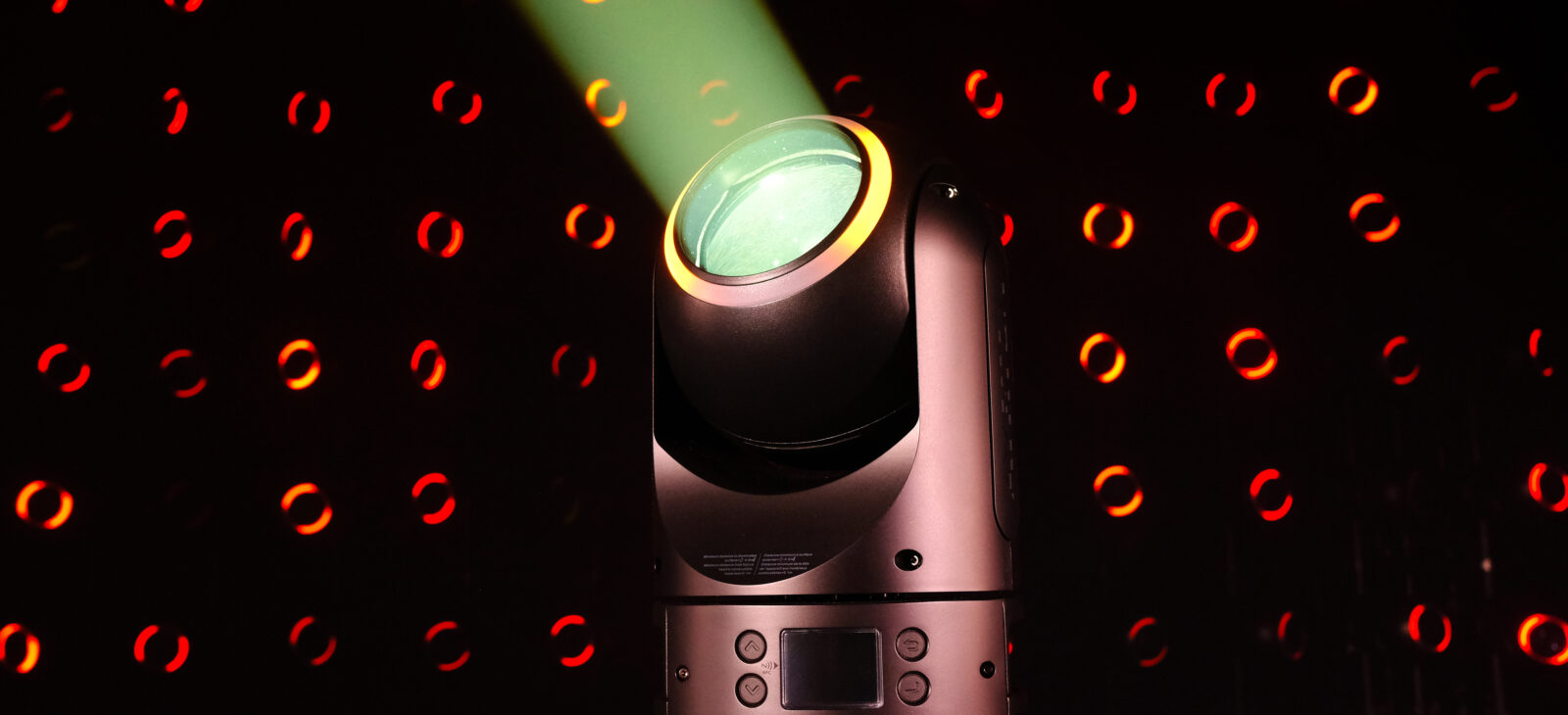

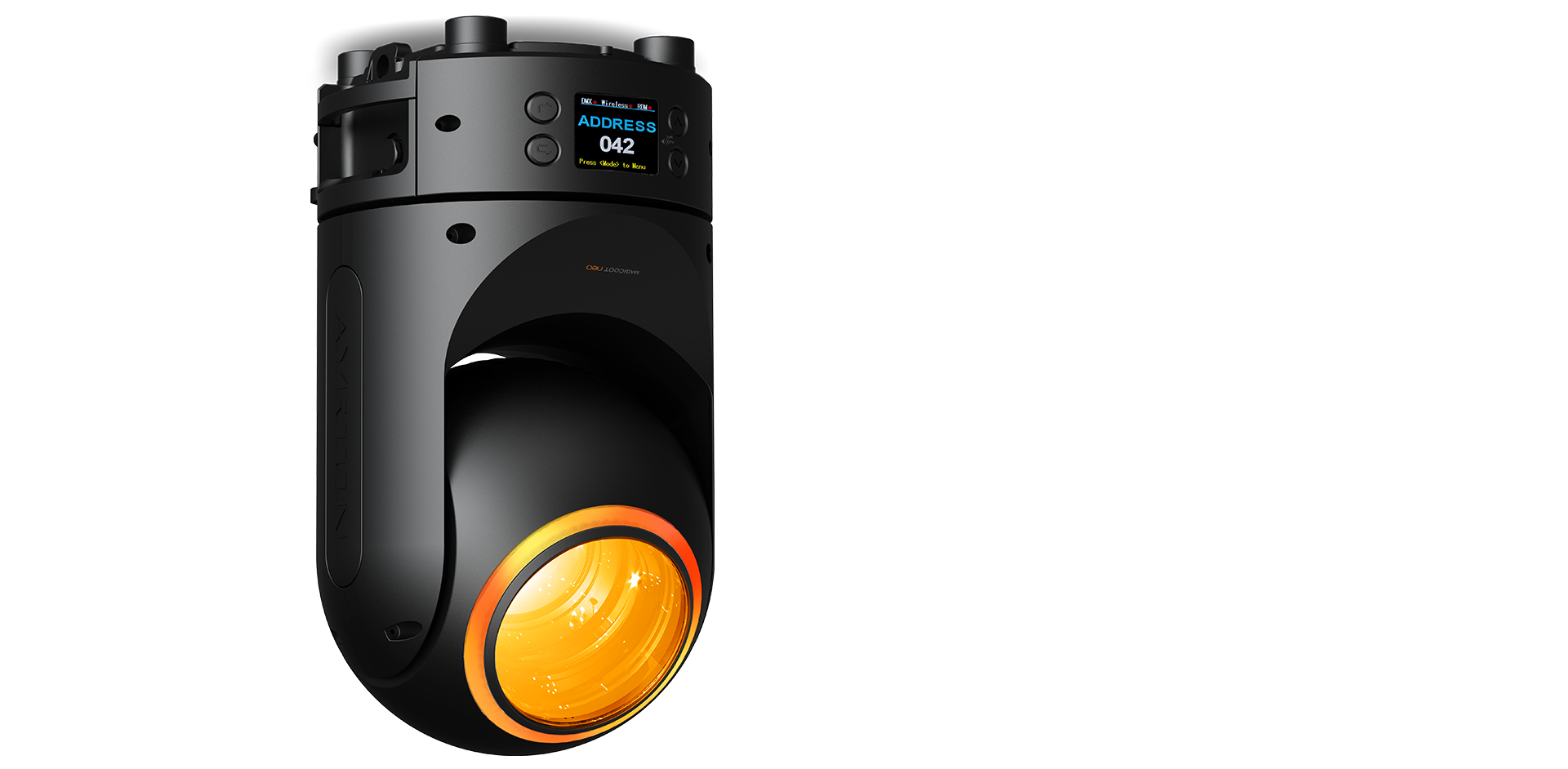

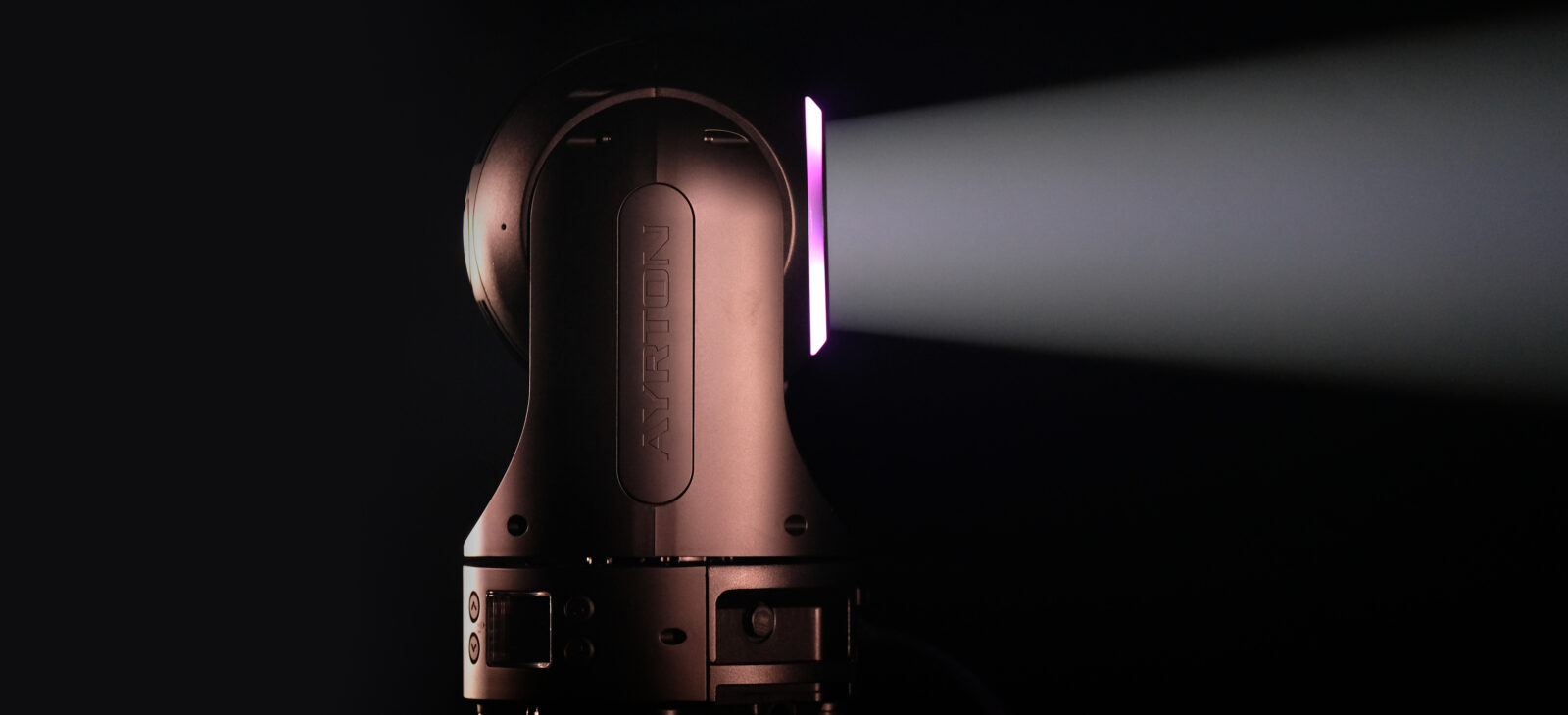

MagicDot Neo
inspiring sphere

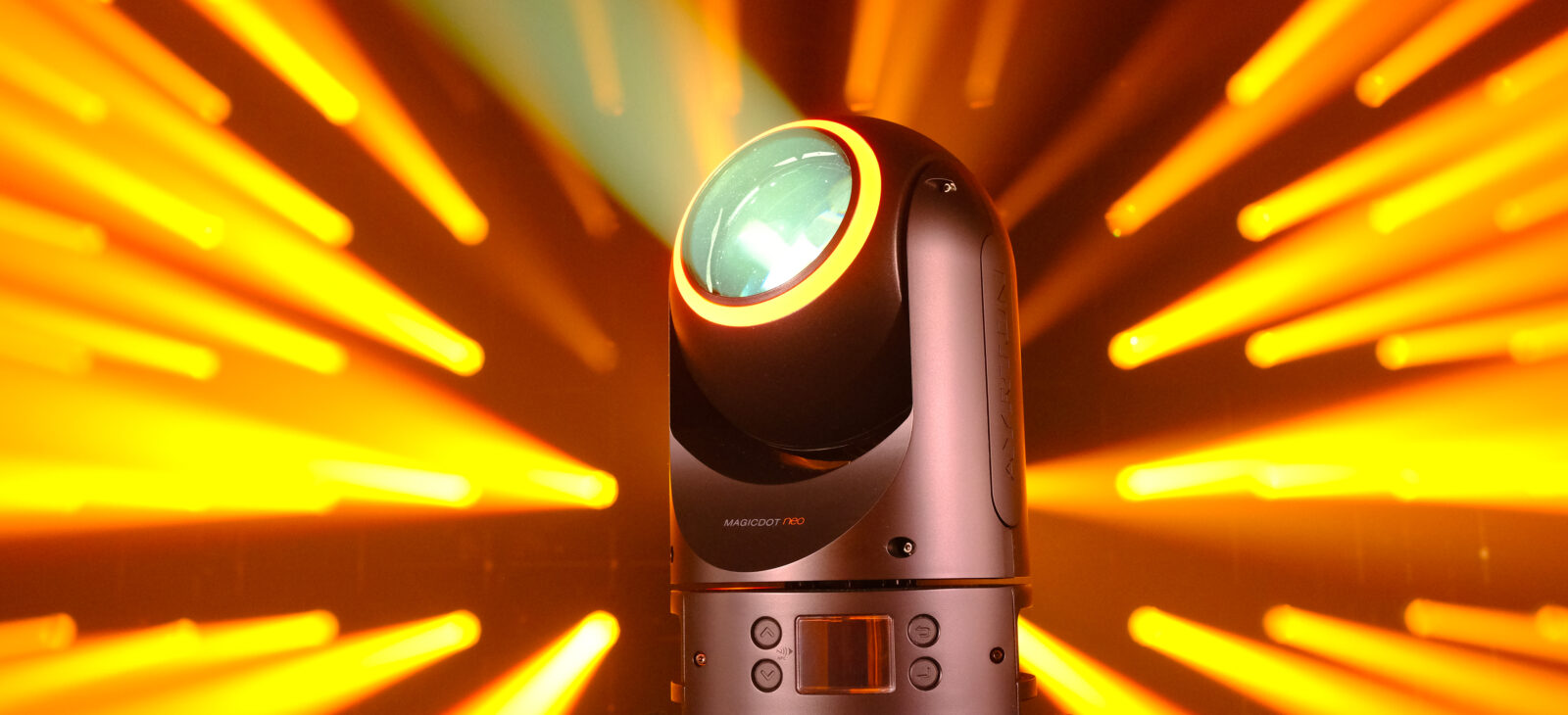

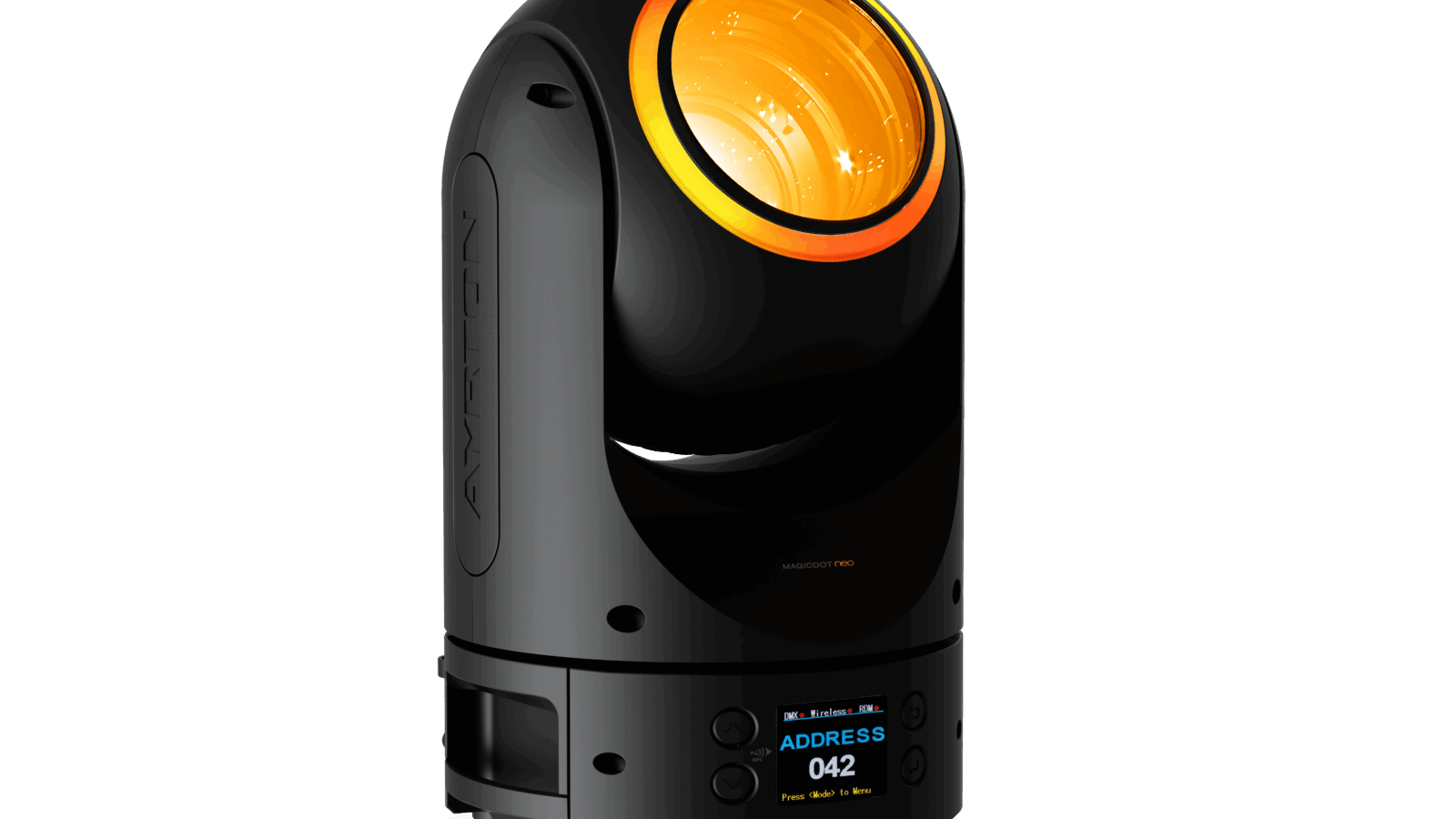

Very compact, lightweight, ultra-fast and powerful, MagicDot Neo represents the ultimate evolution of this innovative family of fixtures.
Designed for stage lighting and engineered for mixed indoor and outdoor use—even in saline environments—it features a brand-new 120 W multi-chip RGB-L LED source paired with a high-efficiency 100 mm optic, delivering a total output of 3,000 lm for just 160 W of power consumption. The high output of this LED source required a bespoke cooling solution based on a phase-change heat pipe. MagicDot Neo switches from Beam to Wash in an instant, offers a 10:1 zoom ratio and covers a wide beam angle from 3 ° to 30 °. Continuous dual rotation on the pan and tilt axes allows fixtures to be clustered so that each light source can be individually controlled in every direction, and the minimal spacing between units makes previously impossible configurations achievable.

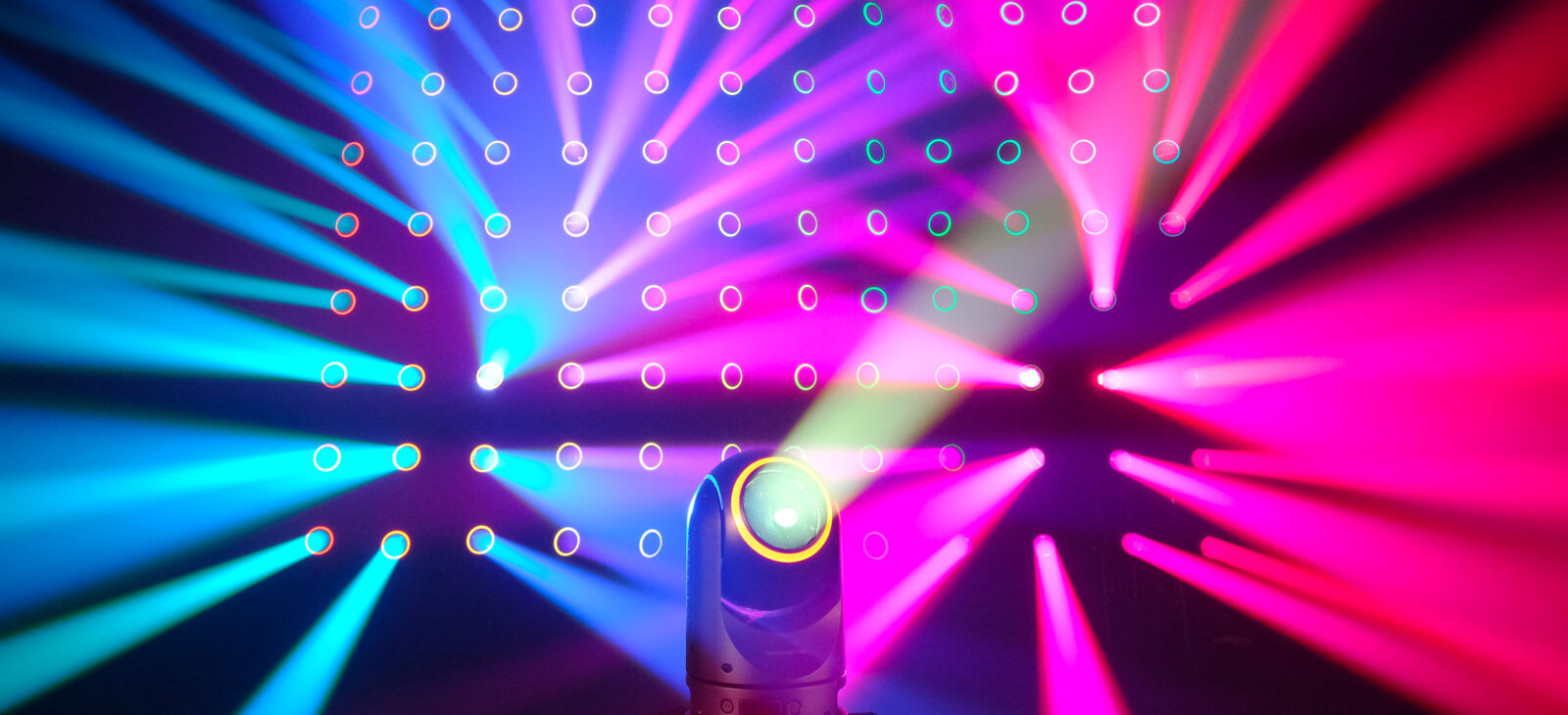

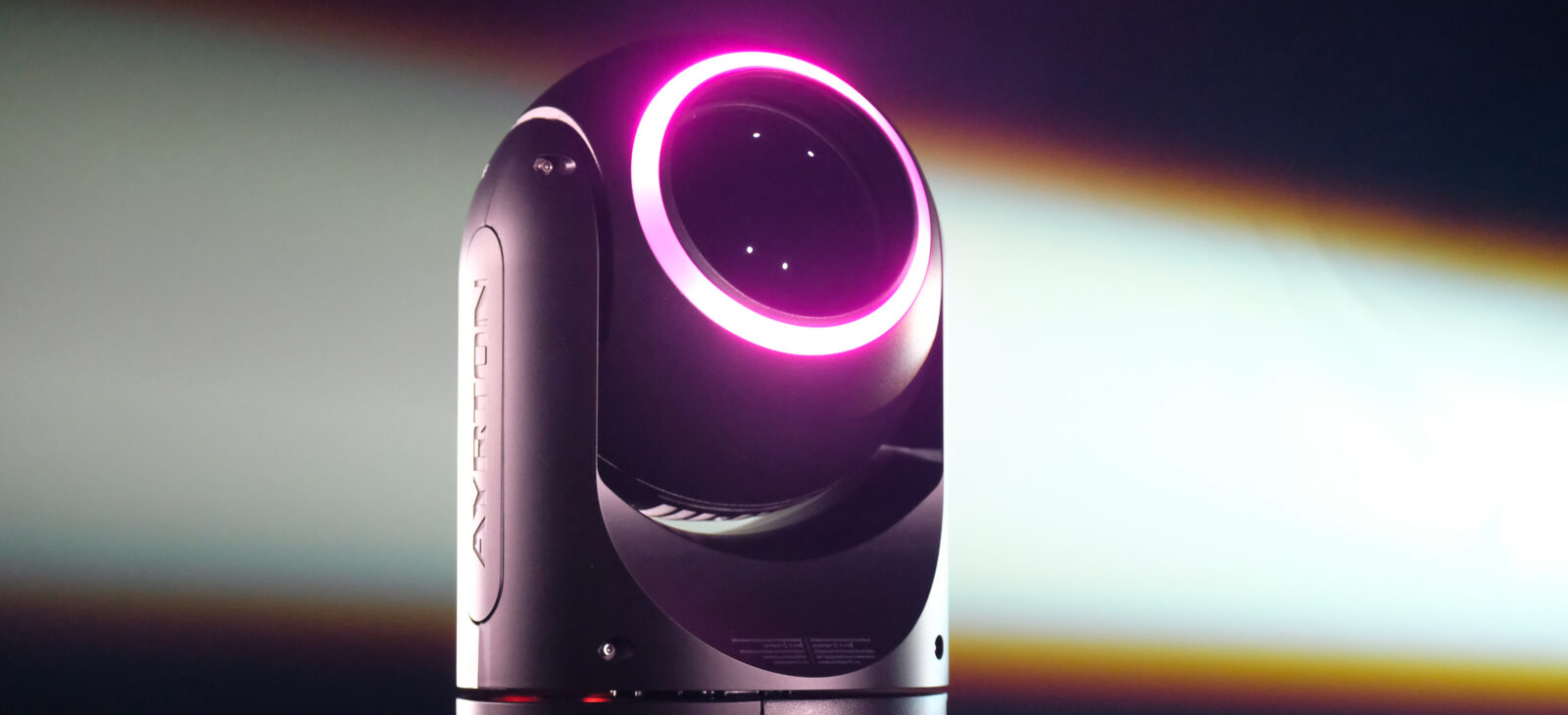

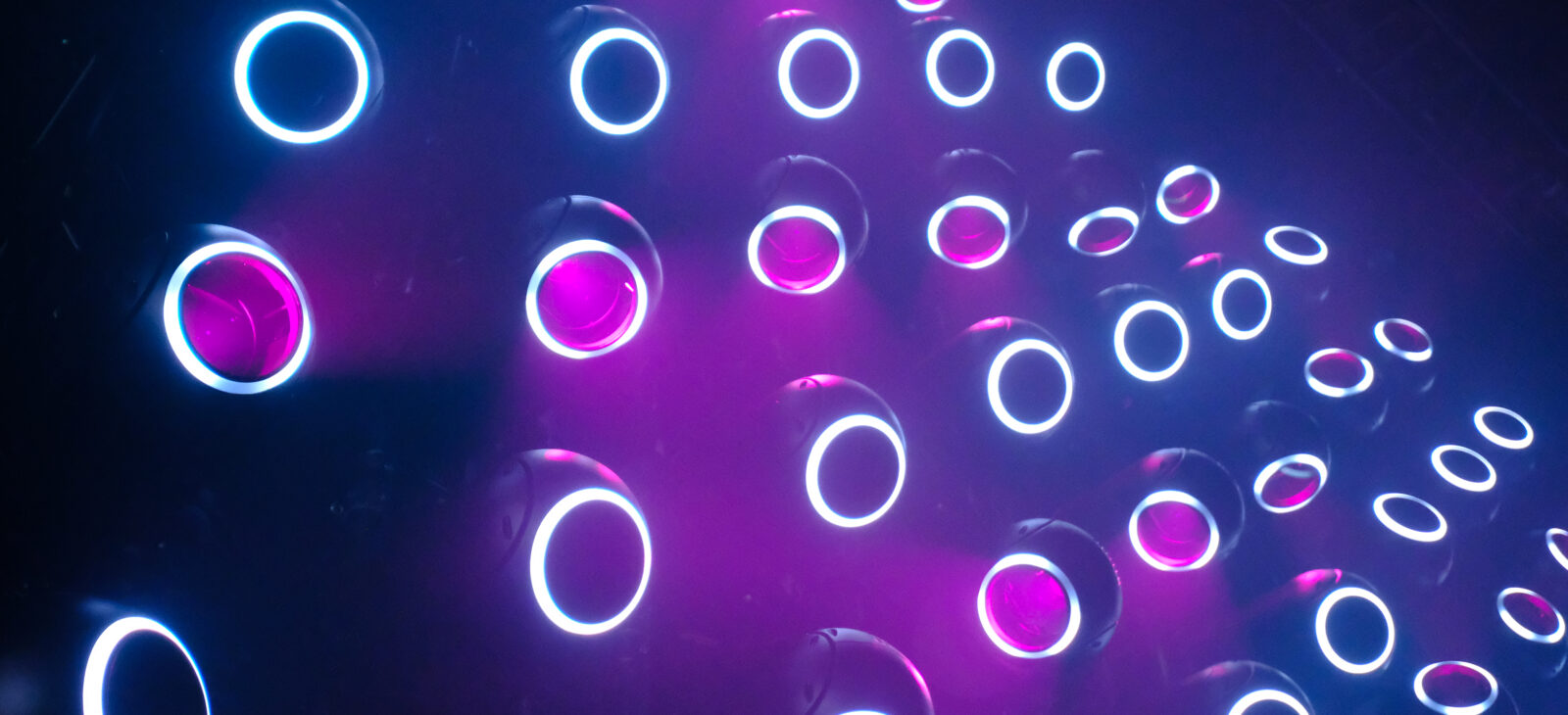

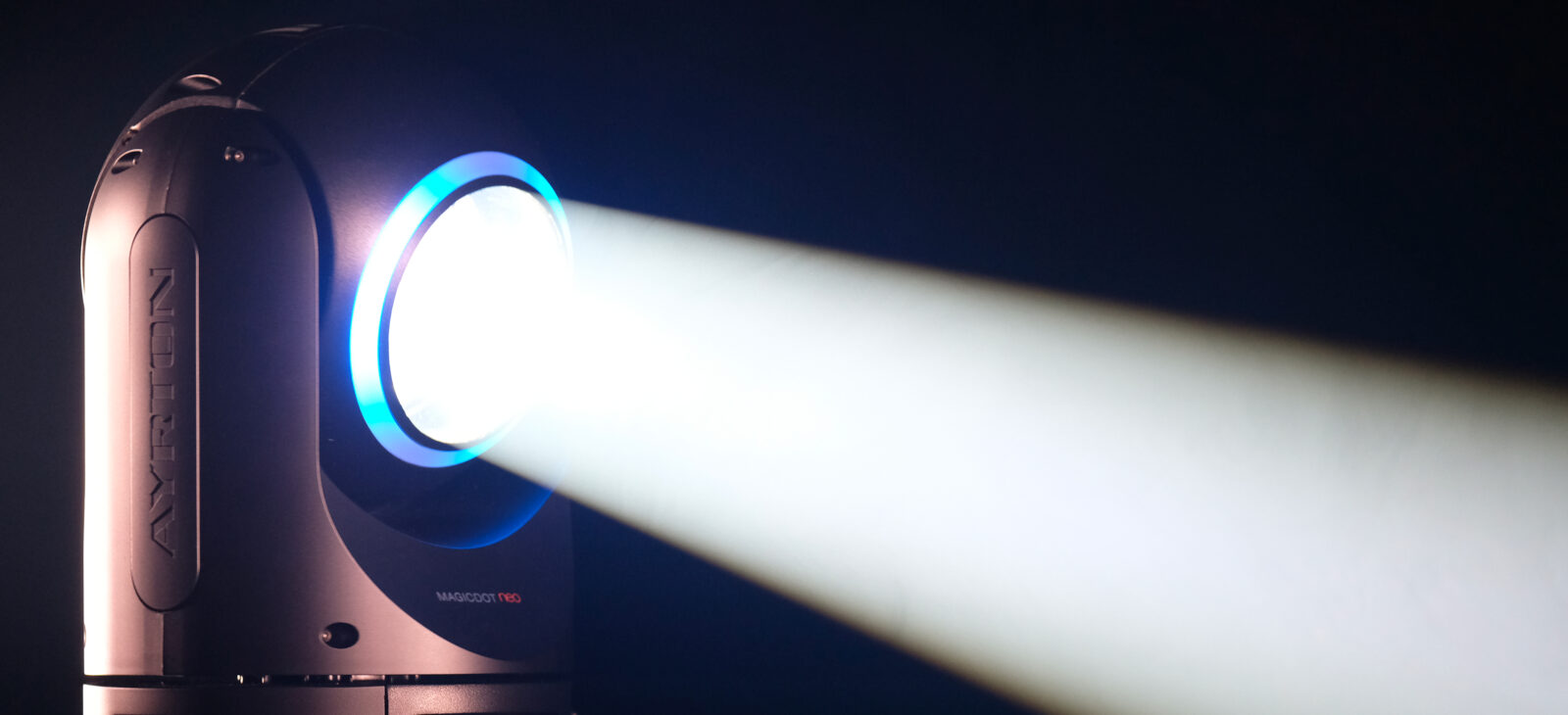

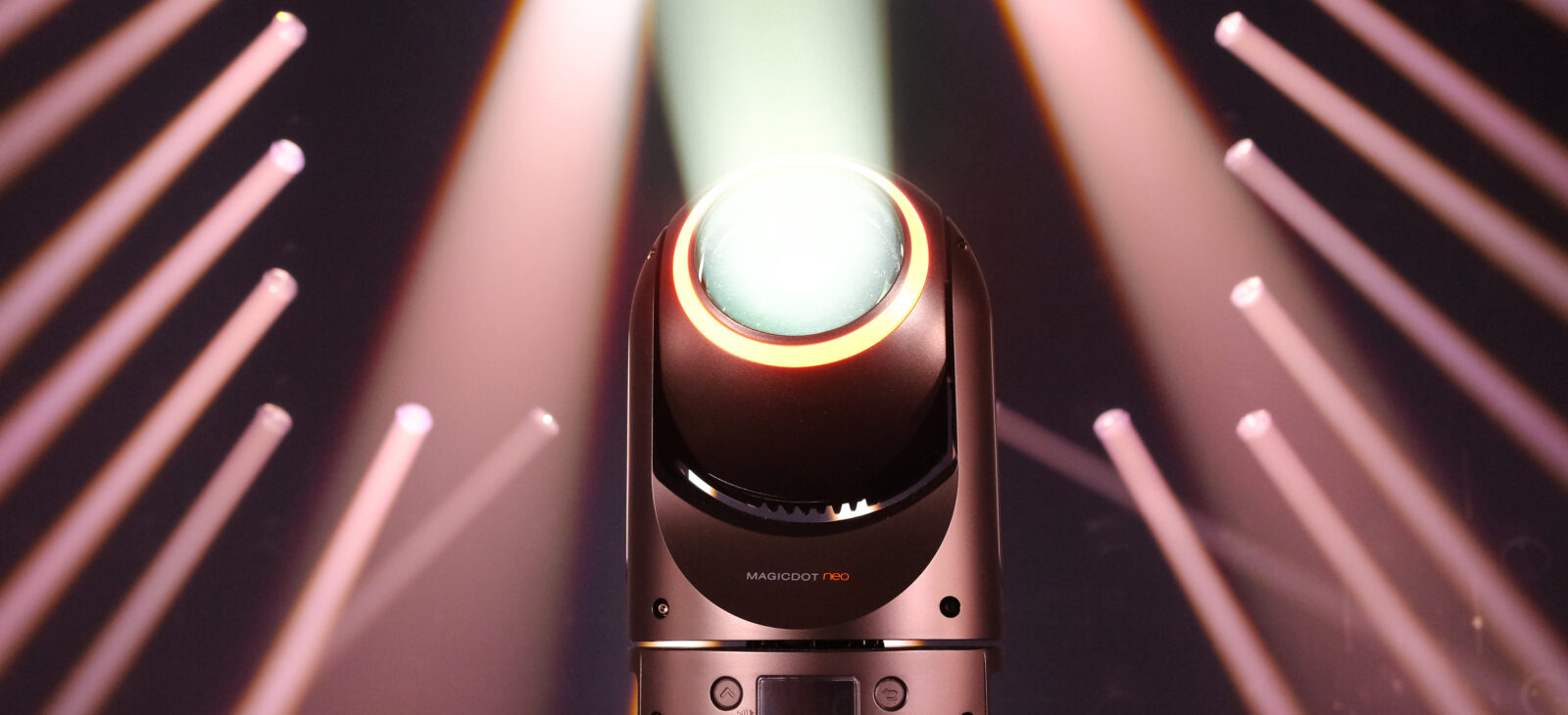

The intense beam, combined with the High-Definition Liquid effect—featuring 60 RGB LEDs around the beam’s periphery—creates mesmerising multi-colour effects.
MagicDot Neo generates organic light and astonishingly complex volumetric effects, enabling truly breathtaking stage presentations. Extensive Ethernet connectivity supports unlimited system configurations. By drastically reducing the thickness of aluminium components, optimising the cooling system, simplifying lens mounts and integrating low-density optical parts, the overall weight has been significantly reduced to just 6.6 kg. The fixture’s performance stems from its singular design, extreme miniaturisation and minimalist cylindrical form. Enter a new creative sphere that is as inspiring as it is radical. An elegant, meticulously crafted projector with a unique visual signature, MagicDot Neo is the obvious choice—a technological powerhouse in a compact package, capable of delivering spectacular stage effects.
Performance
Technical specifications
OPTICS
- 2-elements 10:1 zoom
- Beam aperture: 3 ° to 30 °
- Fast motorised linear zoom
- 100 mm front lens
LIGHT SOURCE
- 5,000 lm RGB-L LED source
- Total luminaire output: up to 3,000 lm
- Illuminance at 5m : 16,000 lux
- CRI: up to 86
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
- Highly accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
- Pan and tilt automatic repositioning
- Moving-head range: infinite pan and tilt rotation
COLOURS
- Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
- Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
- 4.29 billion colours (8-bit resolution)
- Virtual CTC channel, from 2500 to 8000K
- Virtual Tint channel
EFFECTS
- Liquid Effect with 60 individual pixels
- Built-in pattern effects with speed and fade controls
DIMMER / STROBE
- Electronic dimmer from 0 to 100%
- Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES

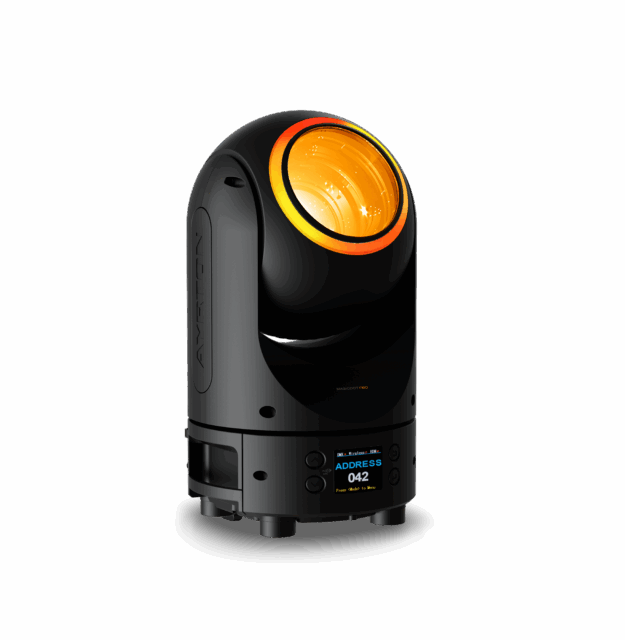

- Graphic LCD display with flip function
- 4 menu buttons to set functions
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio

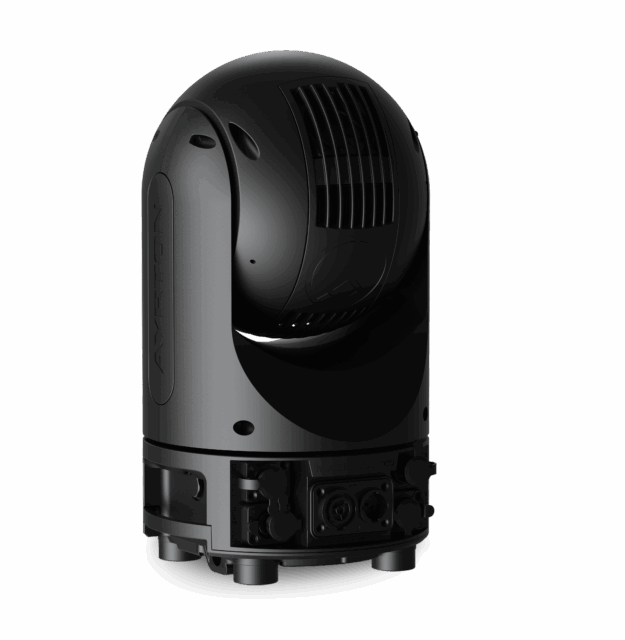

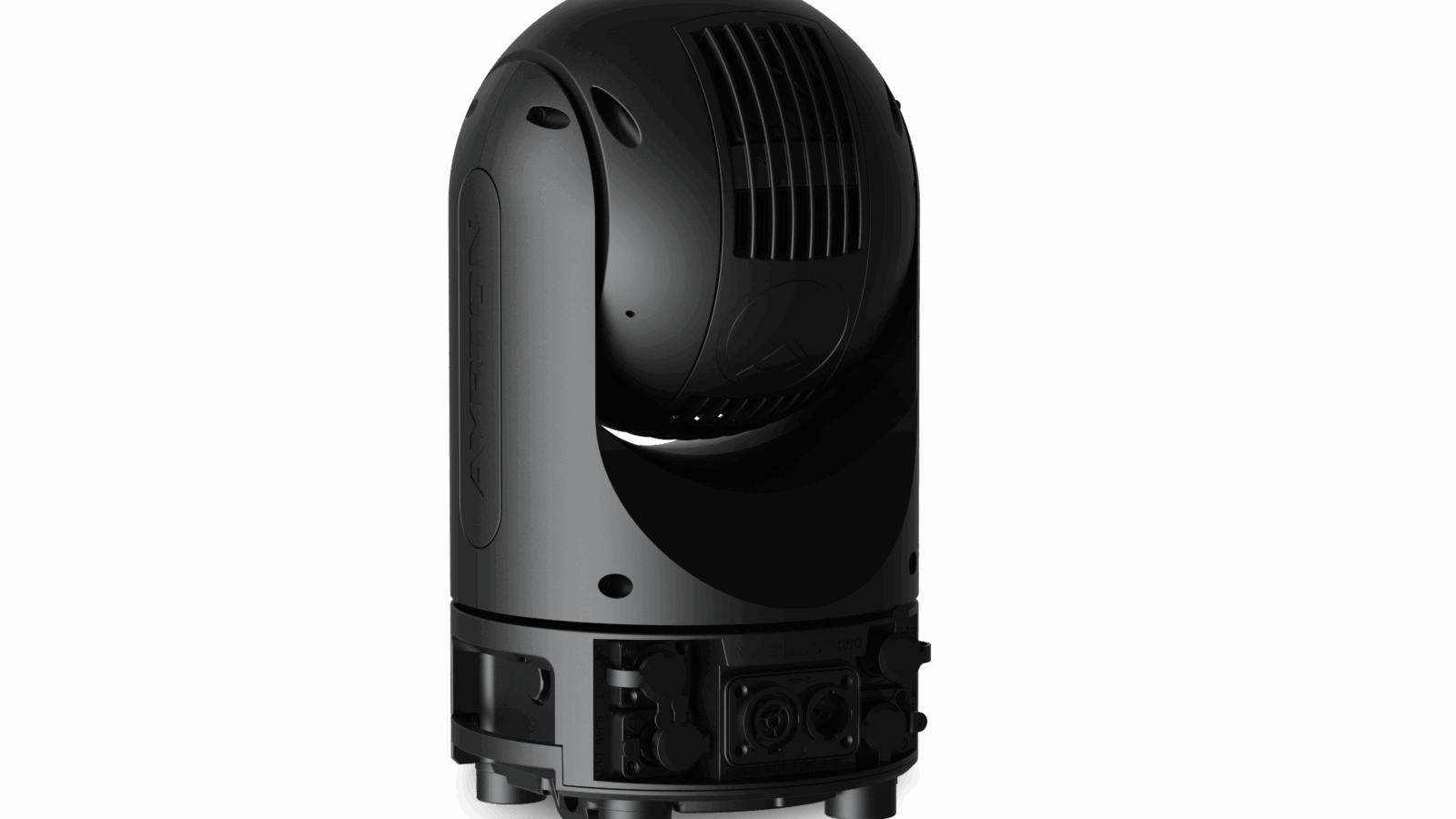

- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet connection
- IP65 PowerCON TRUE1 TOP male and female connectors for power connection
CONTROL
- DMX 512 protocol, through IP65 DMX cable or wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet & sACN protocol through IP65 Ethernet cable
- Local control panel, with IP65 LCD display
- Footprint of 35 DMX channels
POWER SUPPLY
- Electronic power supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 160 W maximum
COOLING SYSTEM
- Advanced liquid cooling system
- IP68 Self-adjusting variable speed fans
- Selectable ventilation user modes
- Excess temperature protection
HOUSING
- Moving-head skeleton made in die-cast aluminium
- Base in die-cast aluminum
- Heatsinks in aluminium and copper
- Moulded covers ABS PC (V0 class)
- Two handles for transportation
- Four heavy-duty feet

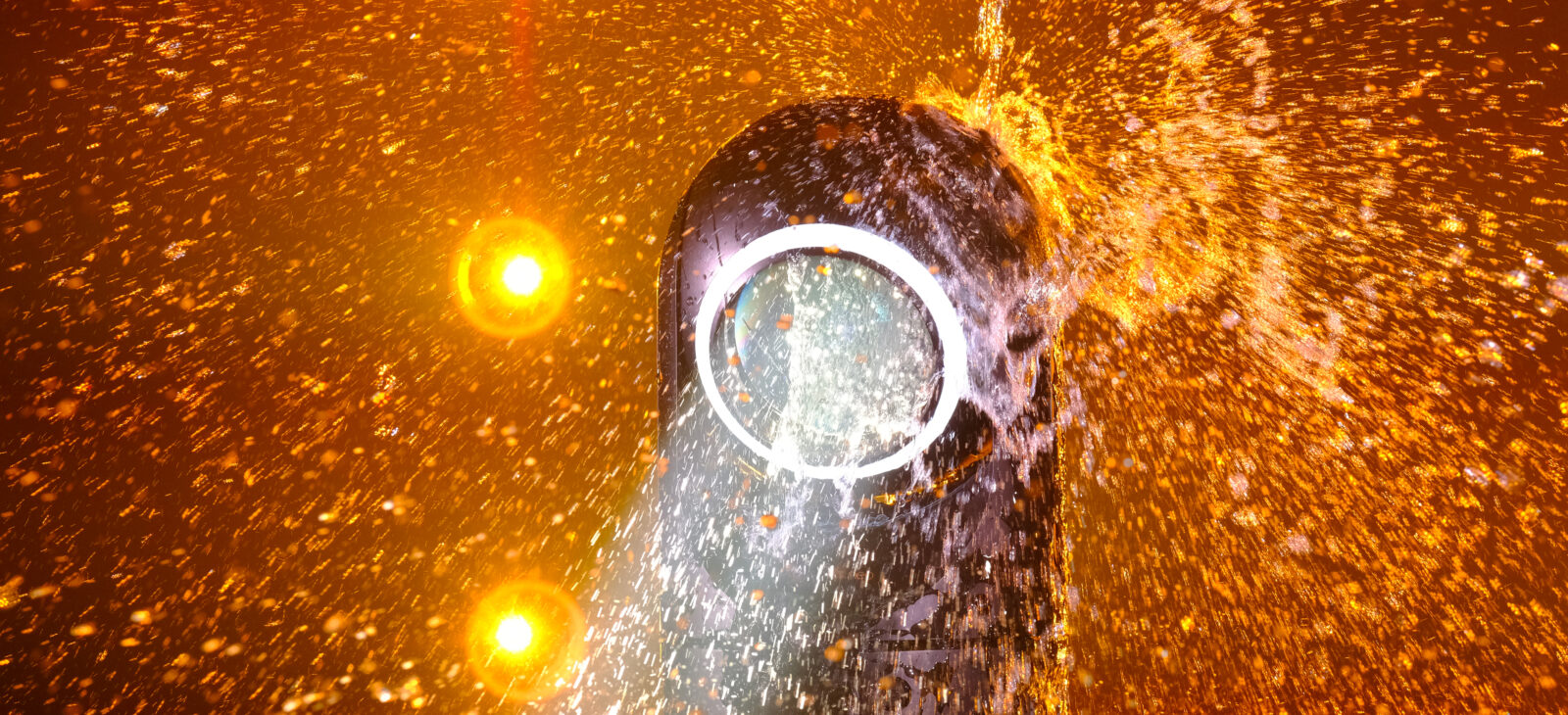

- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening brackets system: One Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: Two ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum temperature (Ta max): 45 °C (113 °F)
- Minimum temperature (Ta min): -20 °C (-4 °F)
- Minimum usage distance: 0.5 m (1.64 ft.)
COMPLIANCE
EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573 & FCC Part 15: 2020-f
Substance regulations
- RoHS
- REACH
- CP65
SIZE
- Product: 197 x 353 x 197 mm (l x h x d)
- Flight-case foam (dual): 500 x 310 x 250 mm (l x h x d)
WEIGHT
- Product: 6.6 kg
PRODUCT CODES
- 015180: MagicDot Neo – Classical IP65 Creative Series
