VERSAPIX-RS

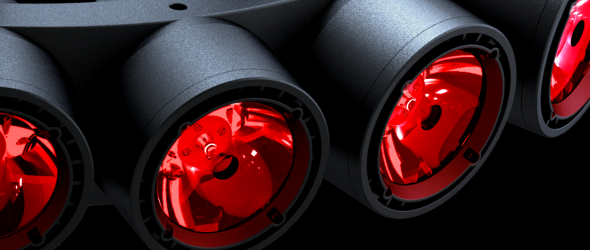

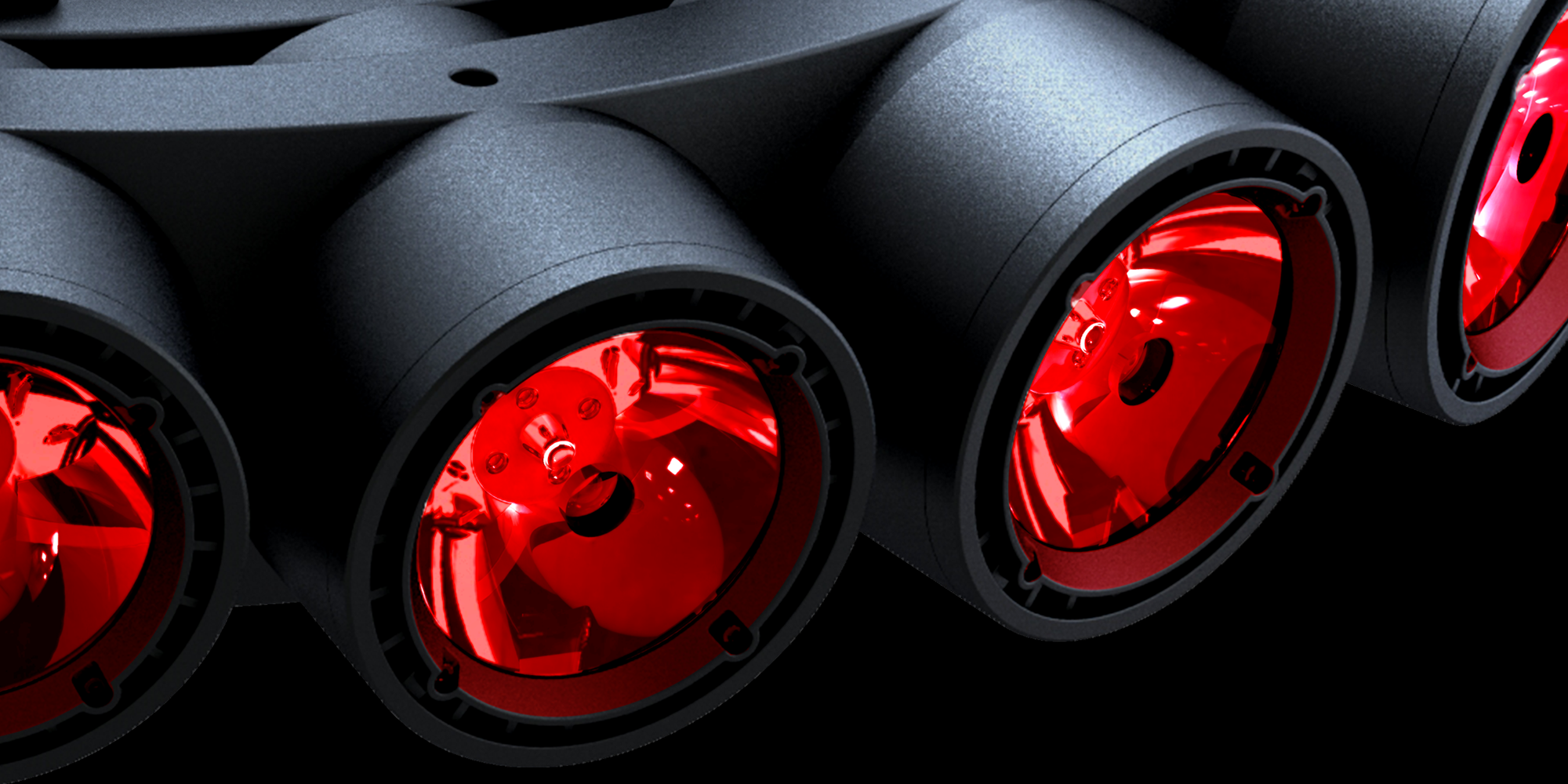

VERSAPIX, a contraction of versatile and pixel, is a veritable fan of light. Brilliantly evolved from the VERSAPIX 100 concept first introduced in 2012, the VERSAPIX-RS is the first in the new ultra-radical “RS” product series. A new 40 W reduced-scale multi-chip RGBW LED emitter has been combined with innovative 94 mm diameter high-efficiency optics.
Once again pushing the limits, this luminaire can generate an ultra-powerful 3.5° beam with a record-breaking centre-beam intensity of 200 candela per lumen. With three times more power and six times more centre-beam intensity, the VERSAPIX-RS offers infinite possibilities for creating 3D volumetric lighting effects regardless of the ambient light conditions.

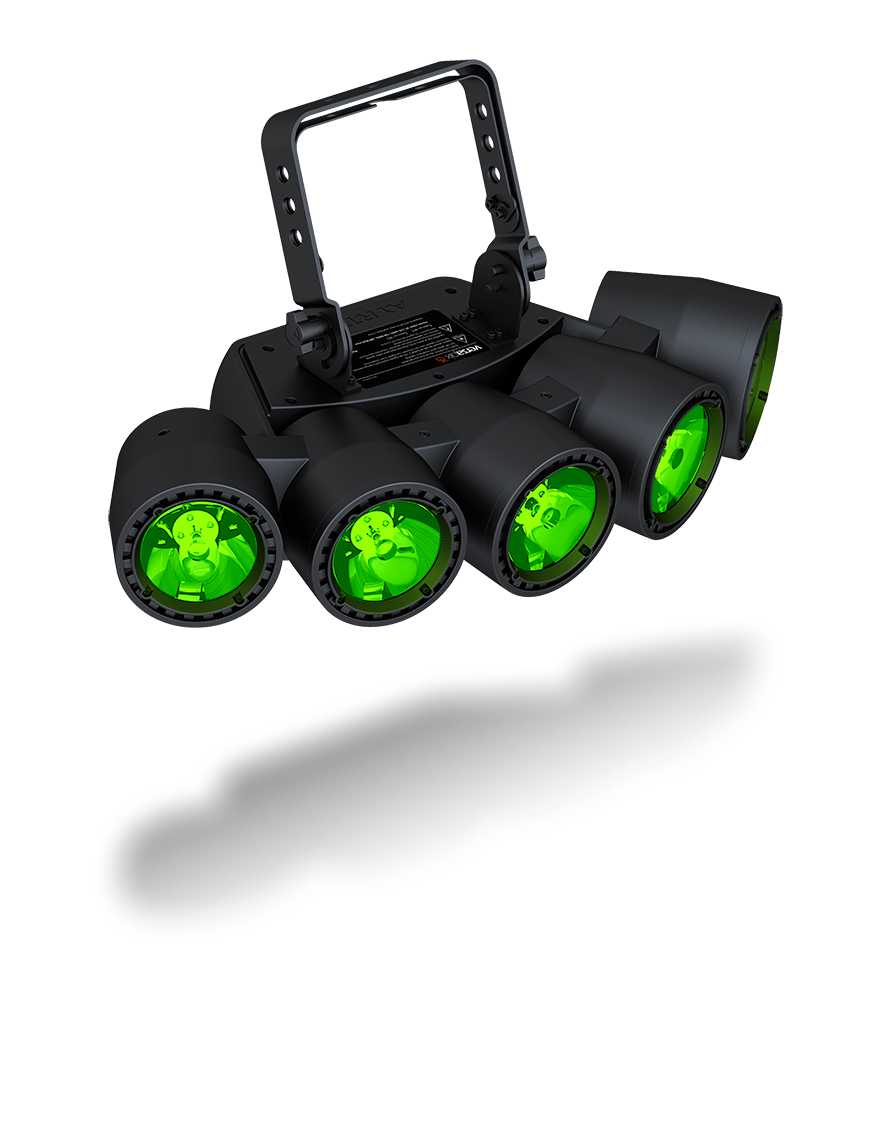

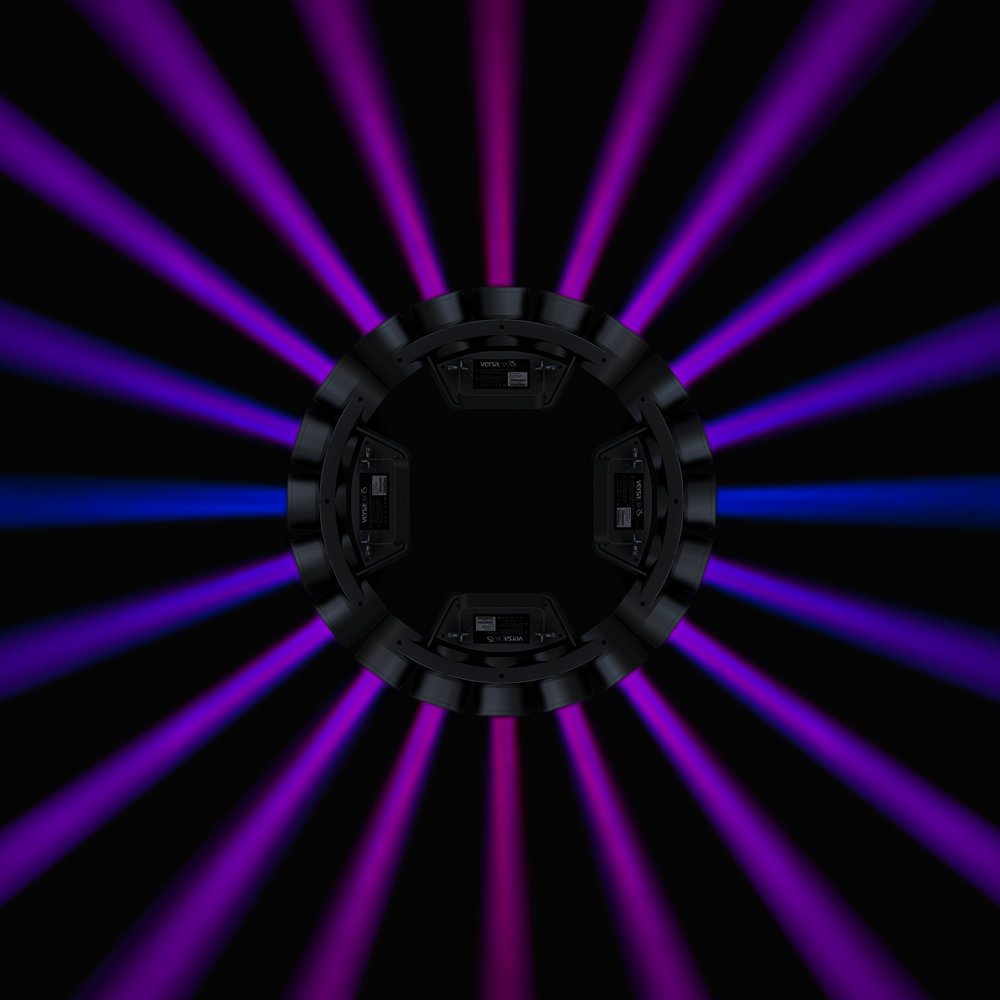

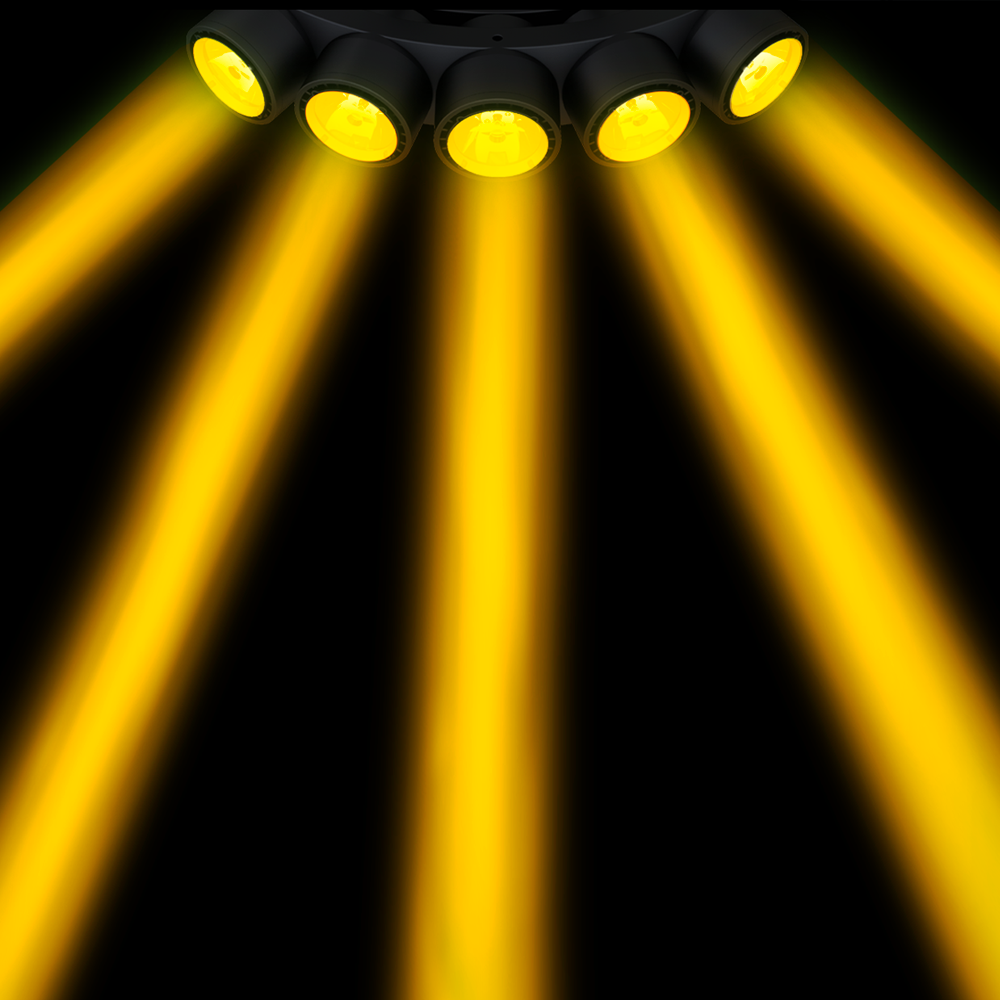

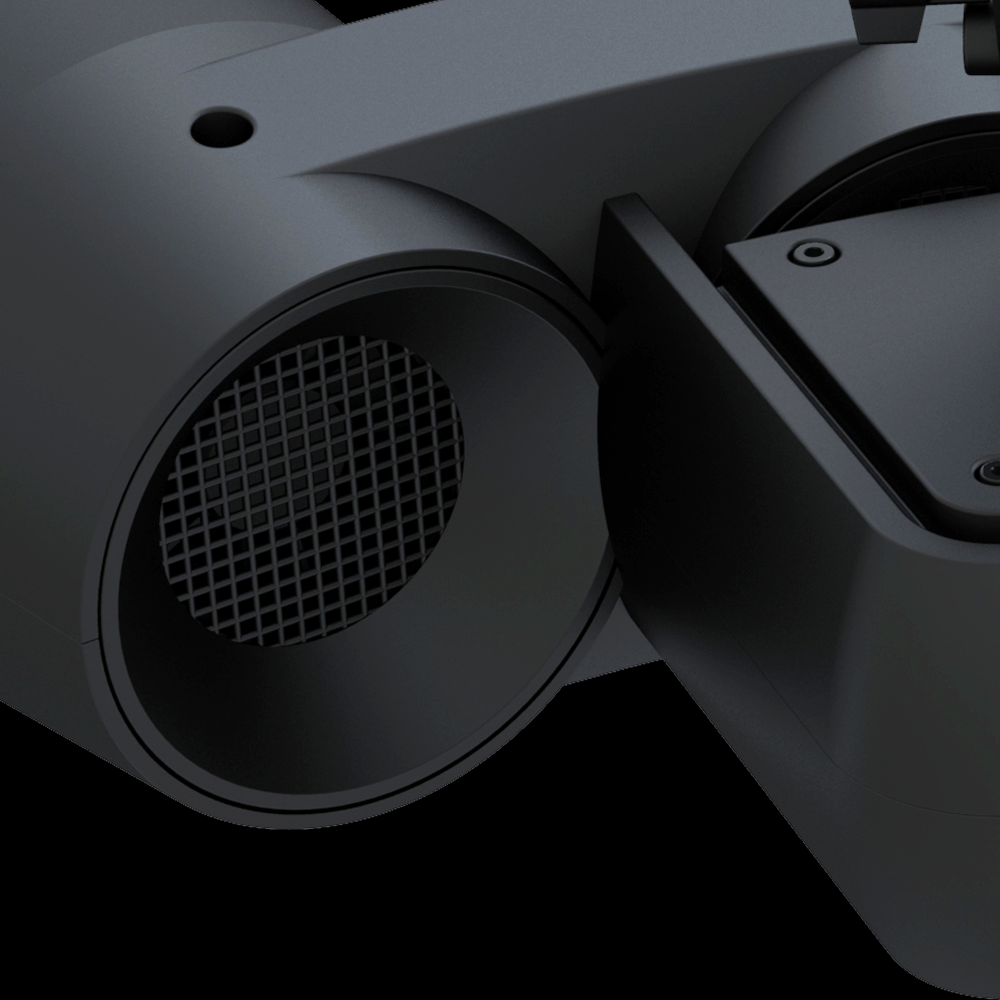

Because of its configuration and power, the VERSAPIX-RS required the development of a specific new cooling system for each of the emitters that evacuates the air at the edges of the optics while preventing haze and dust contamination (patent pending). The VERSAPIX-RS, the most mobile of the fixed luminaires, was designed to be modular, with five emitters in a fan-shaped 90° arrangement, enabling independent control of each of the emitters. This offers a range of installation possibilities, such as combining the luminaires to create complex shapes (disks, spheres, cylinders, etc.) or using individual luminaires in a variety of architectural configurations. With the VERSAPIX-RS, your imagination is the limit.

Performance

Light Source 5 x 35 W - RGBW
Lumens 4,000
Beam Aperture 3.5°
Collimator Lenses 5 x 94 mm

Technical specifications

Optics

  • Beam aperture: 3.5°
  • 82% optic efficiency

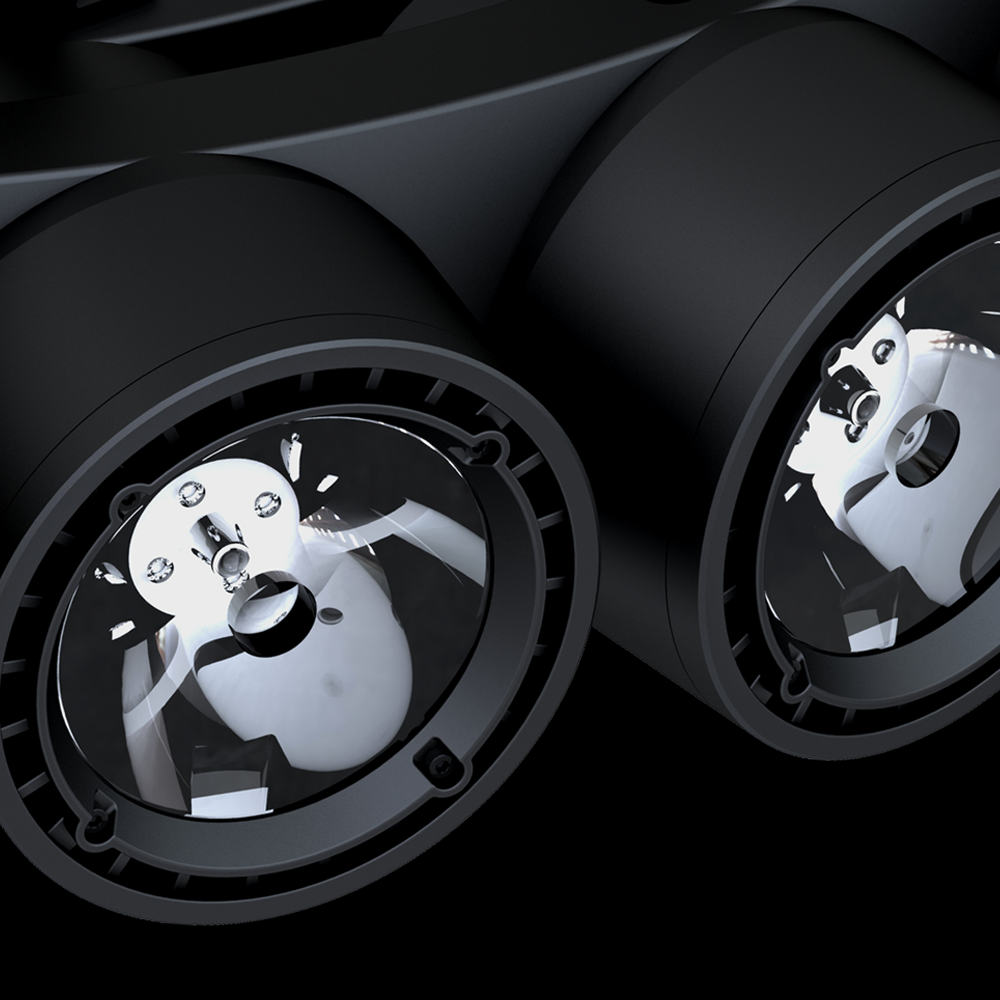

  • 5 x 94 mm PMMA collimator optic

Light source

  • 5 x 1,000 lumens RGBW High-Power LED source
  • Light output: up to 4,000 lumens
  • Rated life (L70): up to 40,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

Colours

  • Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
  • Light beam with no colour shadows, and rich saturated and pastel colour-hues
  • 4.29 billion colours (8 bit resolution)
  • Virtual colour wheel, including most usuals white colour temperature presets
  • Dynamic colour macro effect with variable speed

Effects

  • 2D & 3D graphical effects capabilities
  • Effects can be coupled with beam, wash or matrix applications
  • Built-in pattern effects with speed and fade controls for scenic applications

Dimmer / strobe

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

Hardware features

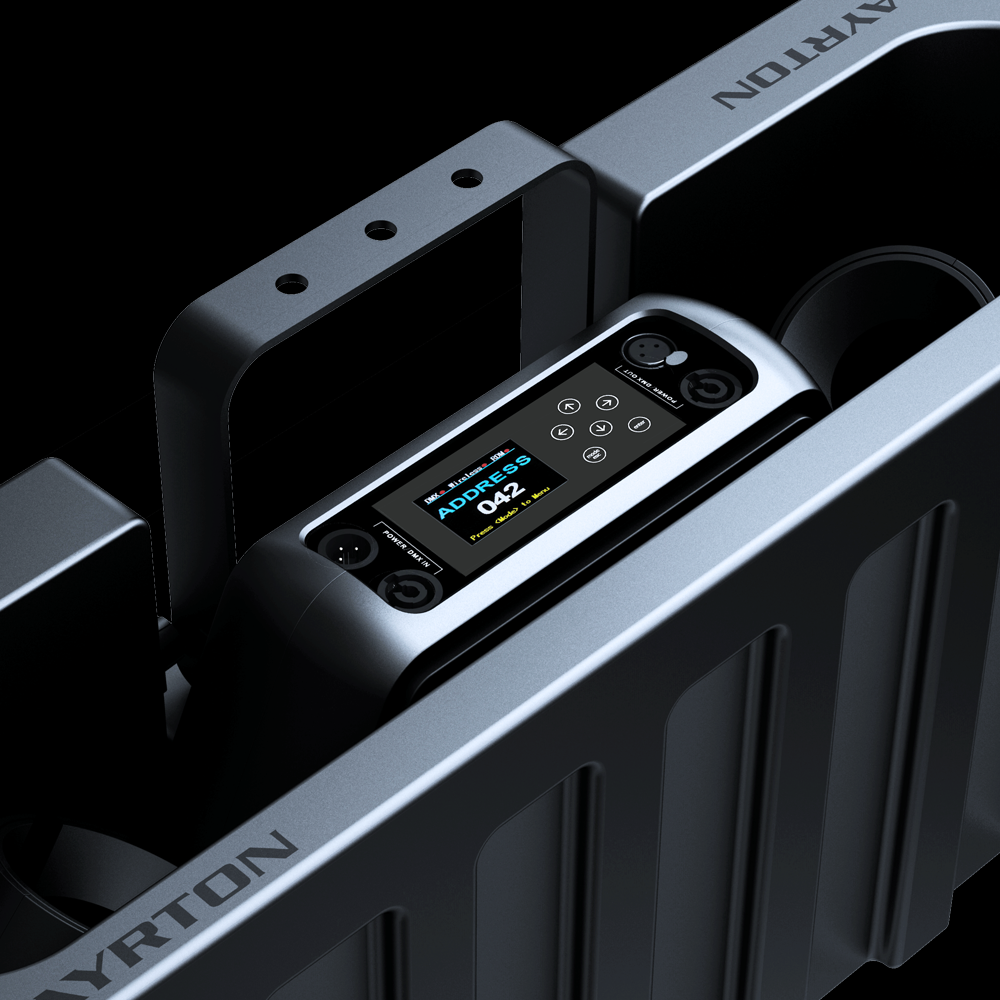

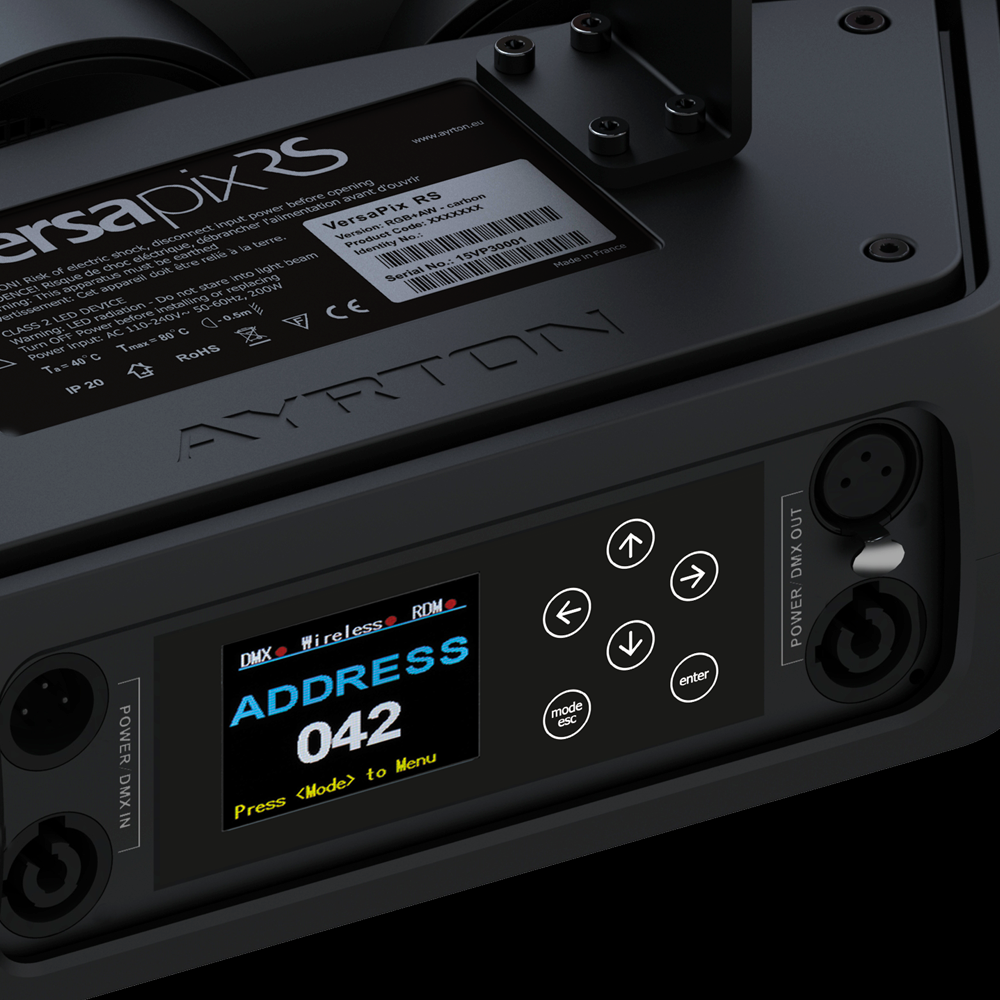

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 6 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • powerCON TRUE1 male and female connectors for power connection

Control

  • DMX 512 protocol, through DMX cable or wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 3 DMX Modes (from 6 to 29 DMX channels)

Power supply

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Power 250 W maximum

Cooling system

  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses

Housing

  • Body made of aluminium and steel metal plates
  • Heatsinks in aluminium, satin finish
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Single yoke in aluminium
  • IP20 protection rating
  • Exterior finish: black (Carbon)

Installation

  • 4 fixing points for multiple products assembly
  • 1 rotating handles to ajust yoke
  • Self-alignment via optional positionning system
  • Safety cable attachment point

Operating parameters

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
  • Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
  • Minimum usage distance: 5.0 m (16.40 ft)

Compliance

EU (EMC):

  • EMC Directive 2014/30/EU

EU (LVD):

  • LVD Directive 2014/35/EU

Size

  • Product: 676 x 300 x 285 mm (l x h x d)
  • Flight-case foam: 750 x 325 x 220 mm (l x h x d)

Weight

  • Product: 8.7 kg

Product codes

  • 018550: VERSAPIX-RS CREATIVE SOLUTION
