MagicDot-XT

creative solution

MagicDot™XT is a radical variant of the revolutionary MagicDot-R. It is fitted with the Ayrton’s new and proprietary 126 mm diameter optic – which distinguishes the “XT” product line.

Weighing in at 550 grammes, this new high-efficiency lens is the world’s largest collimator! Combined with an ultra-powerful, low-etendue, RGBW multichip LED emitter, MAGICDOT-XT pushes the limits of technology even further with a 2° full beam and centre-beam luminous intensity of 580 candelas per lumen – six times greater efficiency than MAGICDOT-R. With an active phase-change liquid cooling system that employs a heat pipe, this luminaire can be used continuously without significant loss of output.

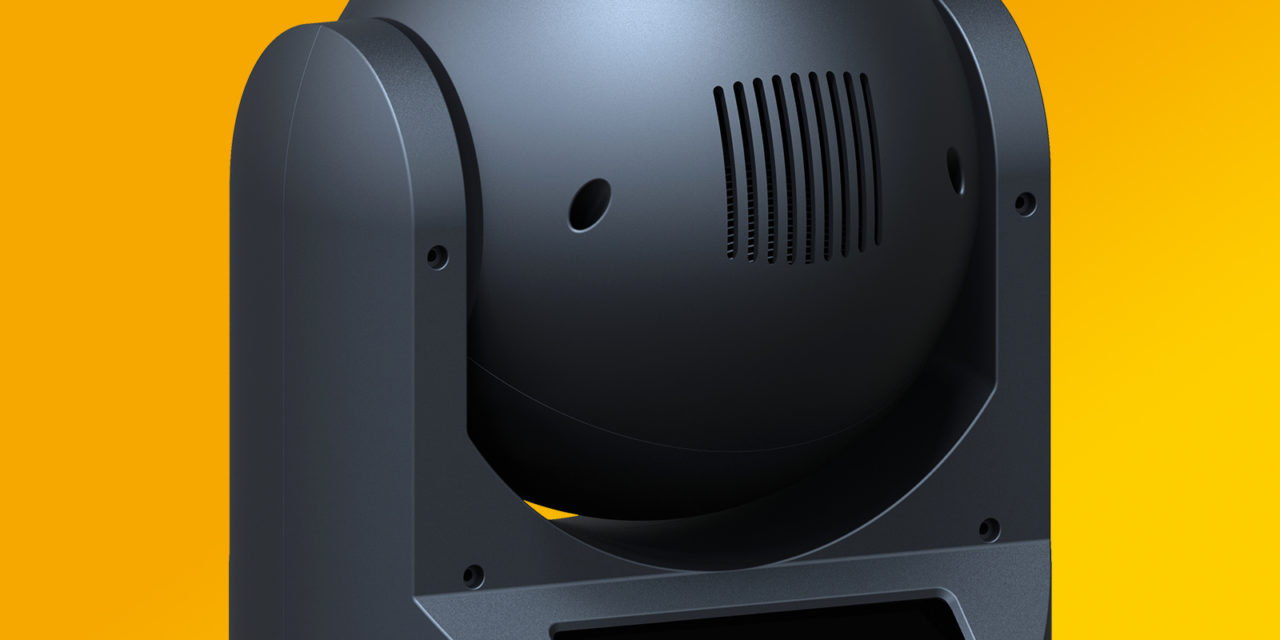

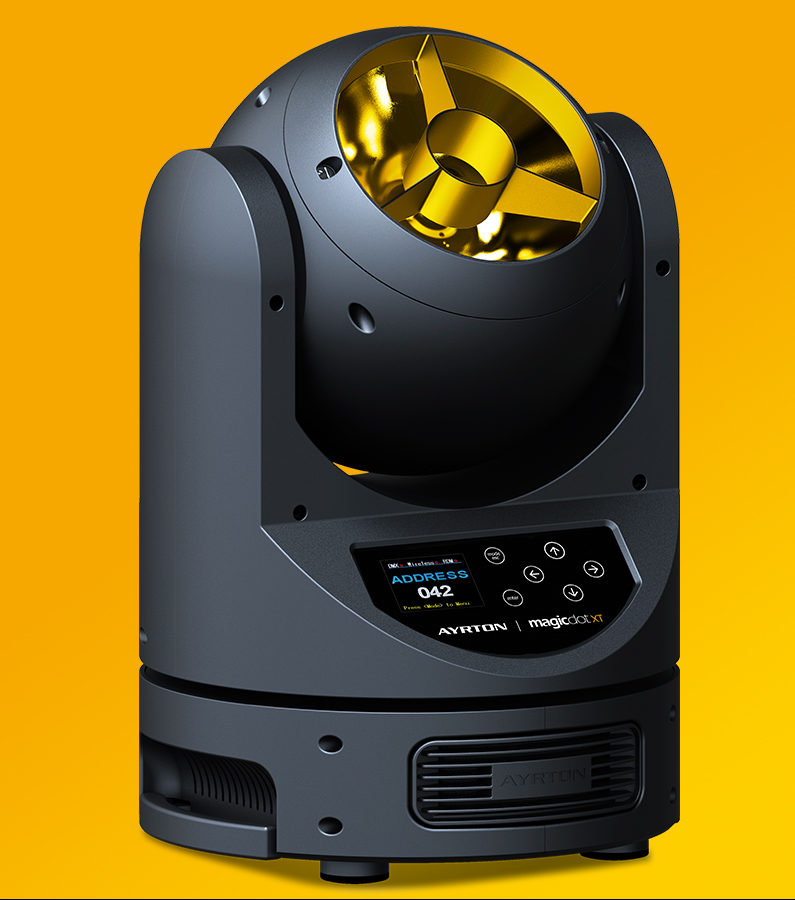

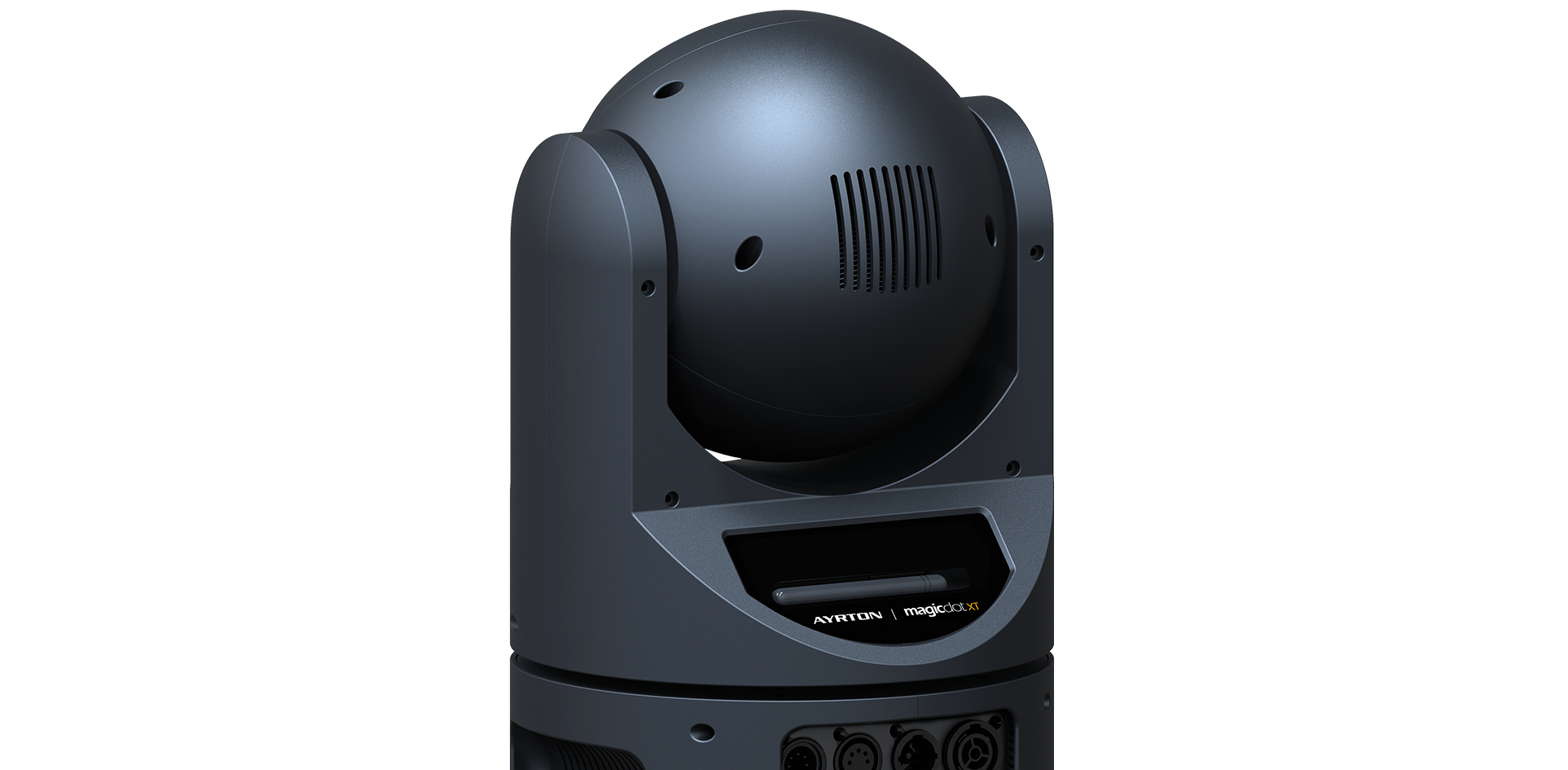

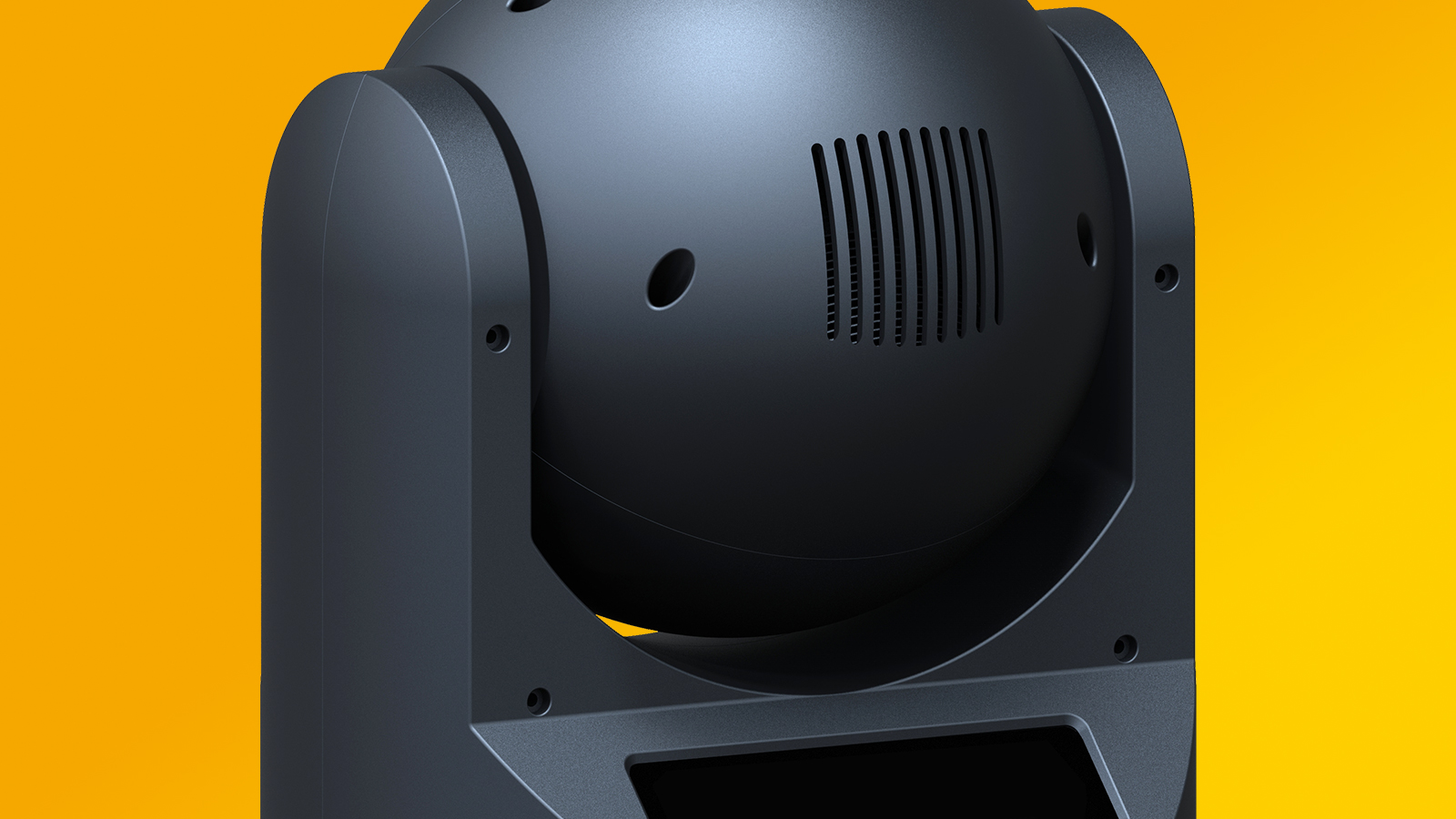

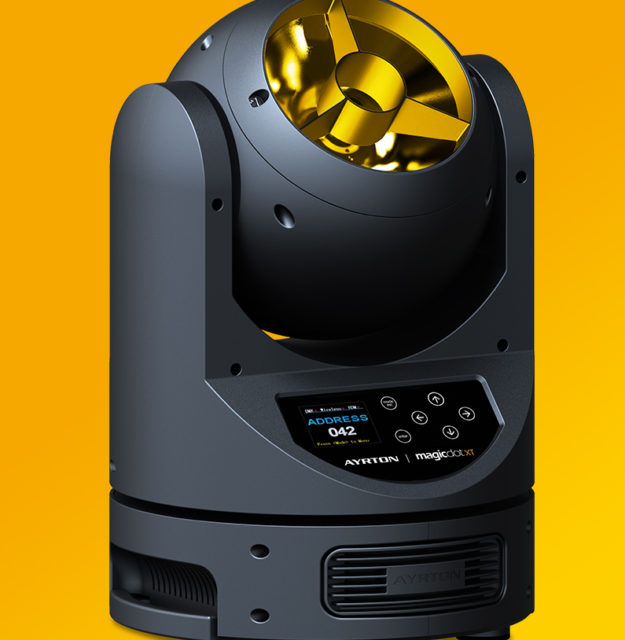

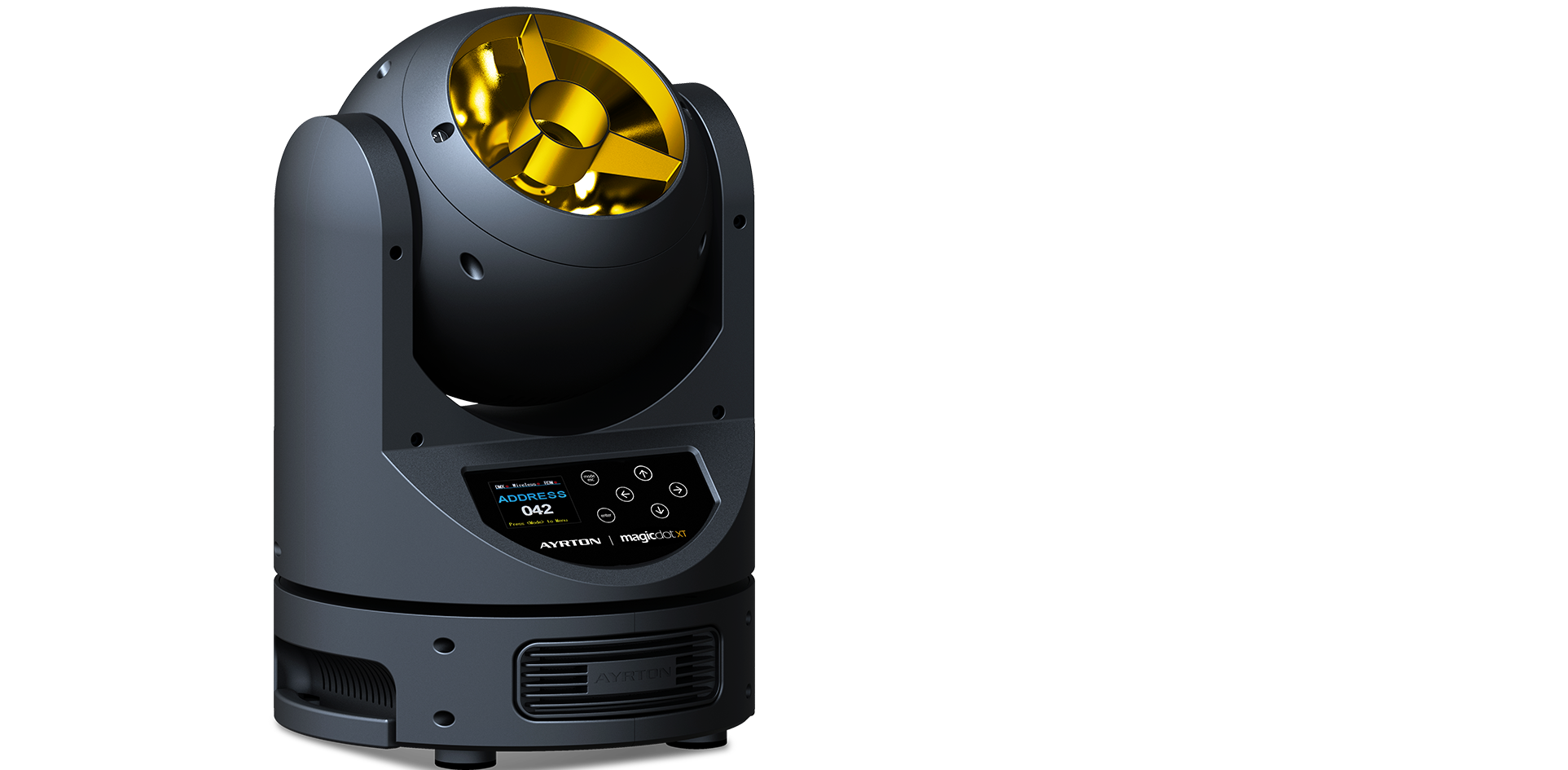

The minimalist cylindrical design of the MagicDot-XT is a scaled-up version of MagicDot-R.

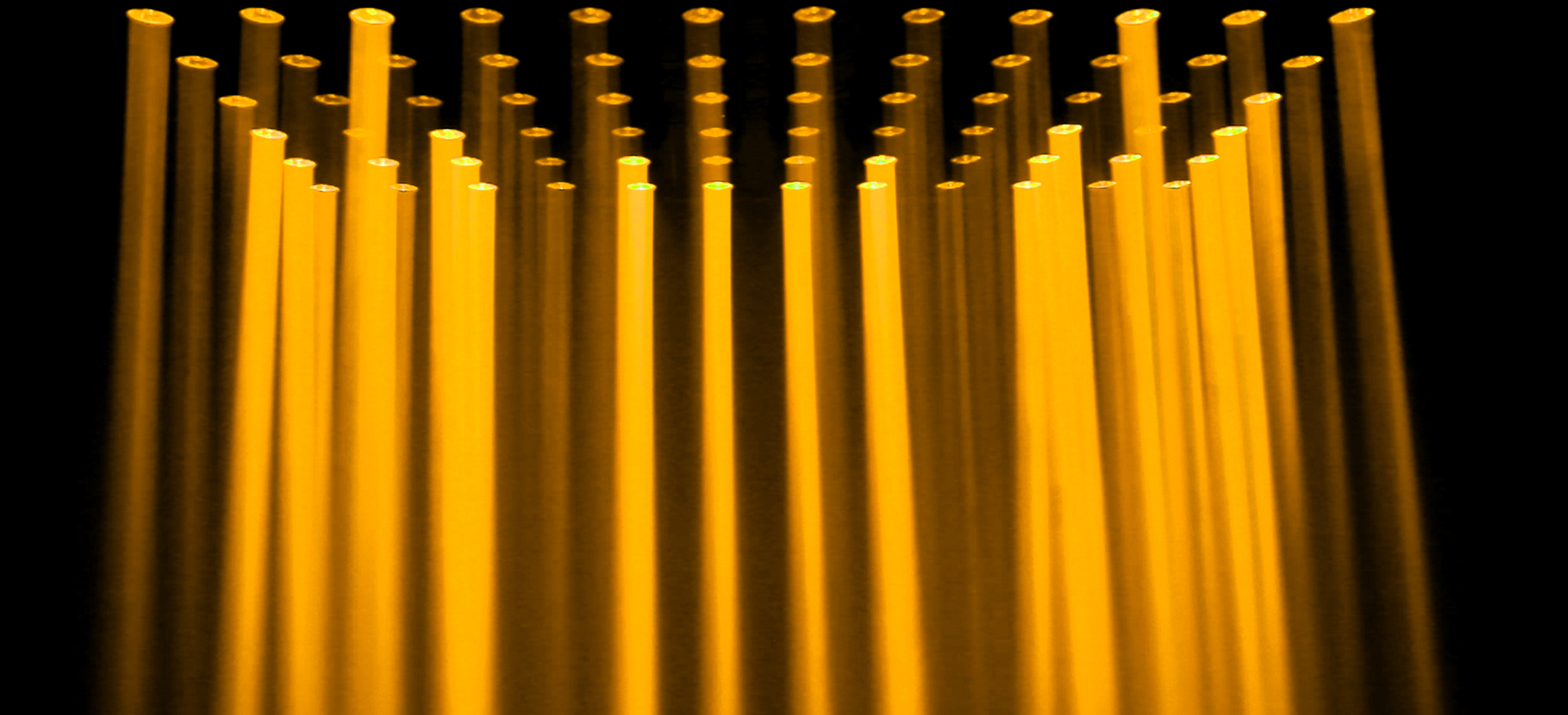

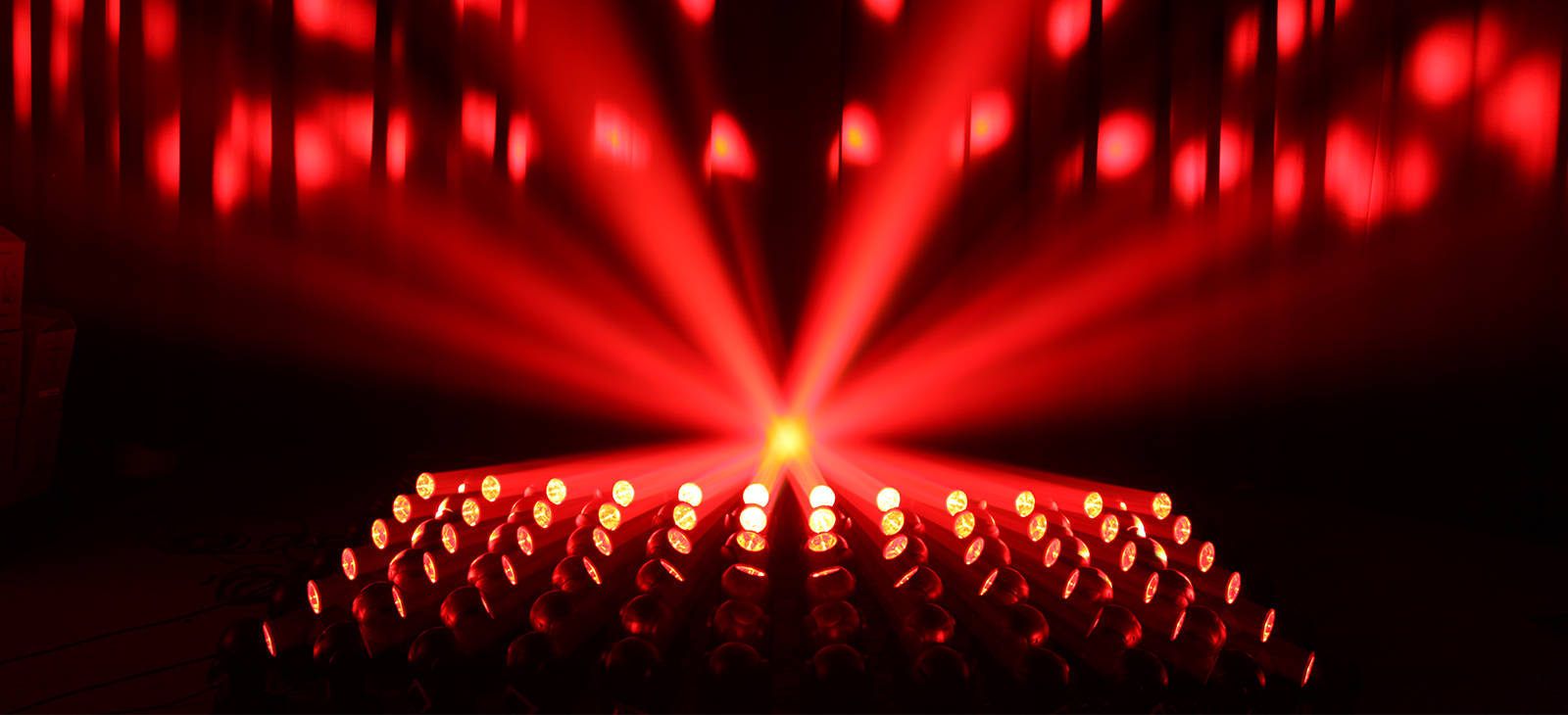

The new luminaire sports all same features, including ultra-rapid movement and continuous, unlimited, rotation on pan and tilt. The compact footprint permits multiple MAGICDOT-XT luminaires to be installed with a minimum amount of space between them. In addition to standard DMX-RDM connectors, MAGICDOT-XT can be controlled via wireless CRMX TiMo™ RDM from LumenRadio™.

Performance

Light Source 35W - RGBW
Lumens 850
Luminous Intensity 580,000
Beam Aperture
Collimator Lens 126mm

Technical specifications

Optics

  • Beam aperture: 2°
  • 85% optic efficiency
  • 126mm PMMA collimator optics

Light source

  • 1,000 lumens RGBW High-Power LED source
  • Total luminaire output: up to 850 lumens
  • Luminous intensity: 580,000 cd (narrow beam)
  • Rated sources life: up to 25,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

Movement

  • Extremely accurate positioning
  • Moving-head operated via either 8 or 16 bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
  • PAN and TILT automatic repositioning
  • Moving-head range: infinite PAN and TILT rotation

Colours

  • Sophisticated 4 colours RGBW mixed, reaching high Colour
  • Rendering Index
  • Light beam with no colour shadows, and rich saturated and pastel colour-hues
  • 4.29 billion colours (8 bit resolution)
  • Virtual colour wheel, including most usuals white colour temperature presets
  • Dynamic colour macro effect with variable speed

Dimmer / strobe

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

Hardware features

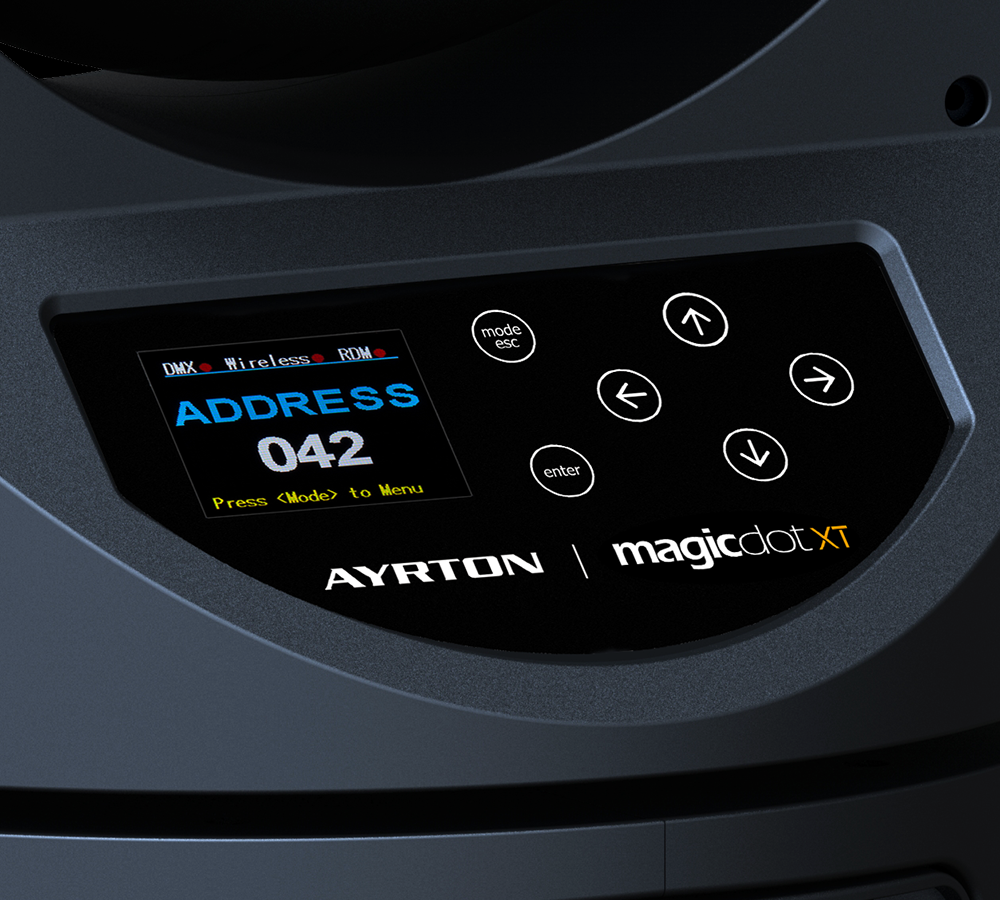

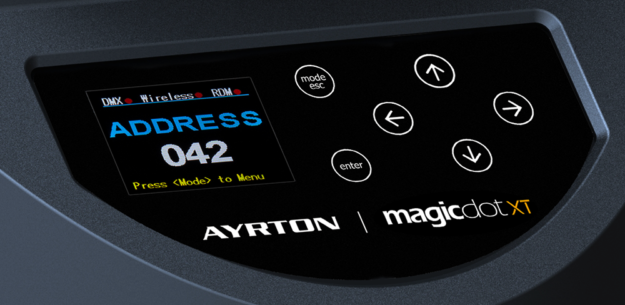

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 6 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • PowerCON TRUE1 male and female connectors for power connection

Control

  • DMX 512 protocol, through DMX cable or wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
  • Choice of 2 DMX modes (from 15 to 17 DMX)

Power supply

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power 100 Watt max

Cooling system

  • Advanced cooling system based on heatpipe technology
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses

Housing

  • Moving-head skeleton made of aluminium and steel metal plates
  • Heatsinks in aluminium and copper, satin finish
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two sides handles for transportation

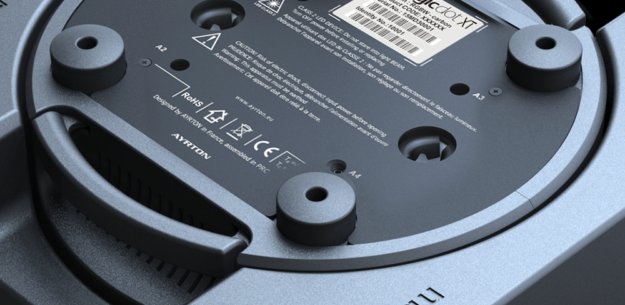

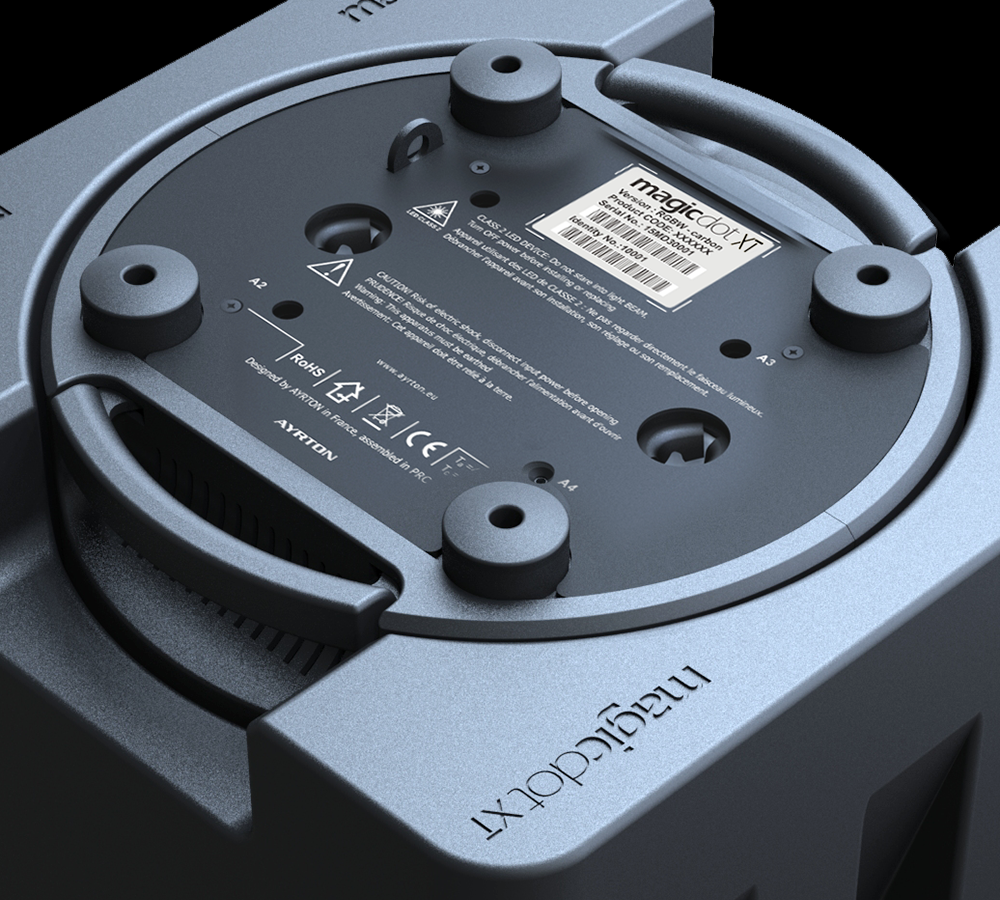

  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

Installation

  • Fastening brackets system: one Omega 1/4 turn brackets designed for use with standard clamps
  • Mounting points: two 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

Operating parameters

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 2.0 m (6.56 ft)

Compliance

EU (EMC):

  • EMC Directive 2014/30/EU

EU (LVD):

  • LVD Directive 2014/35/EU

Size

  • Product: 235 x 360 x 235 mm (l x h x d)
    Flight-case foam: 290 x 355 x 290 mm (l x h x d)

Weight

  • Product: 6.2 KG

Product codes

  • 015170: MAGIDOT-XT CREATIVE SOLUTION
