MagicDot-SX

creative solution

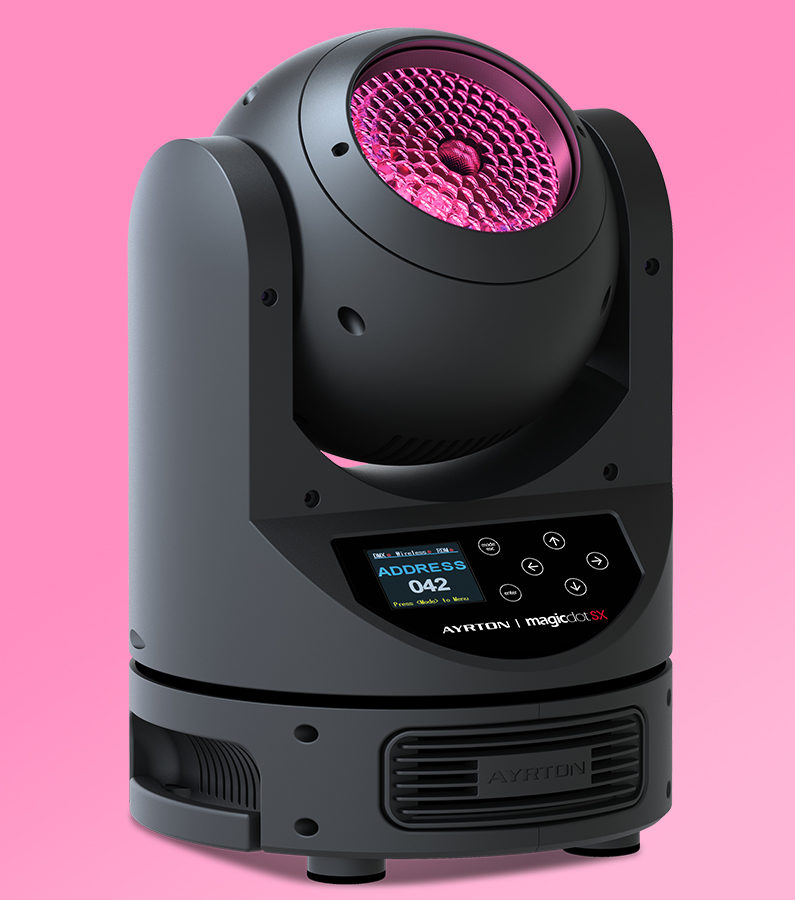

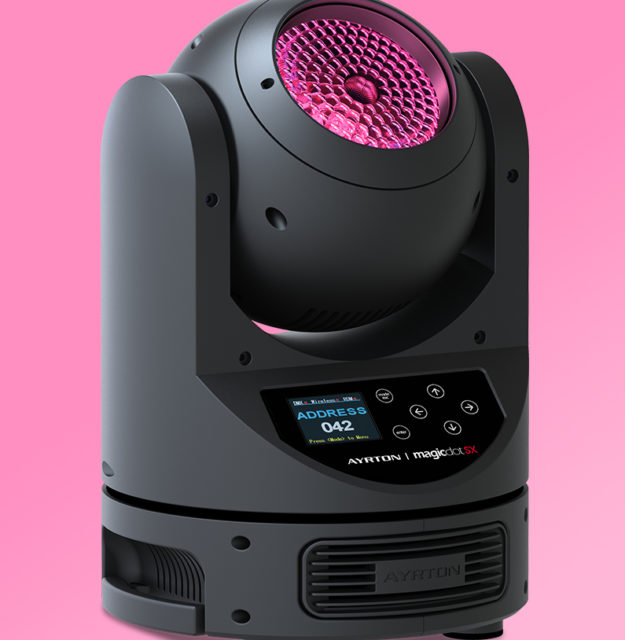

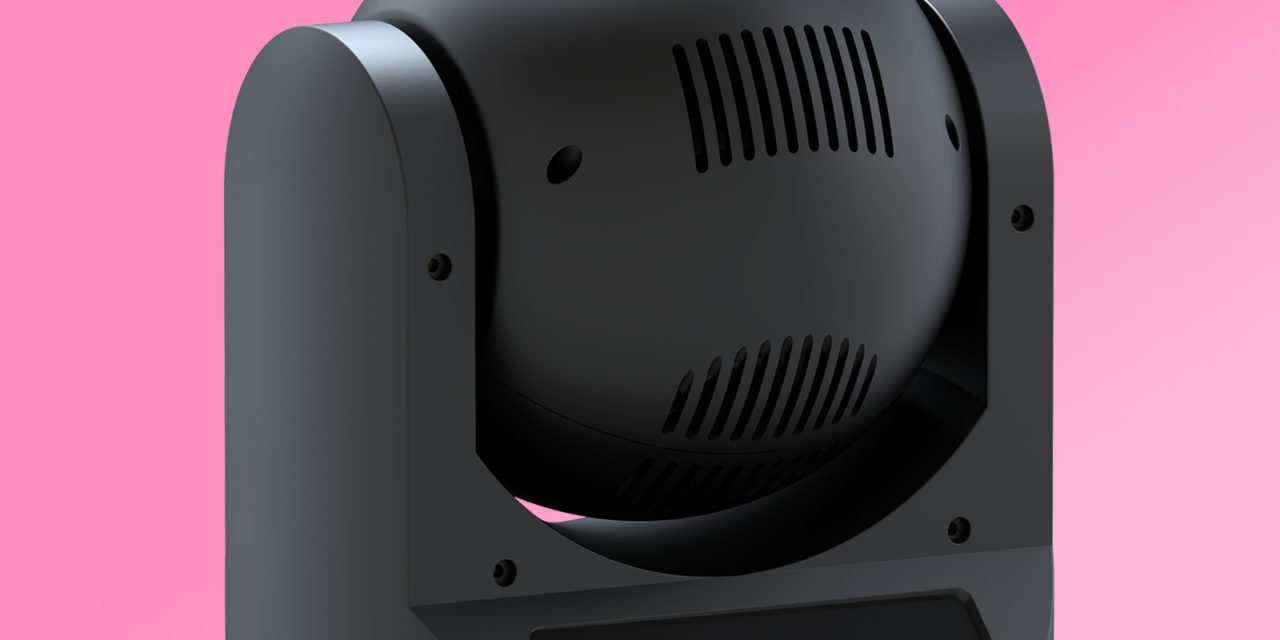

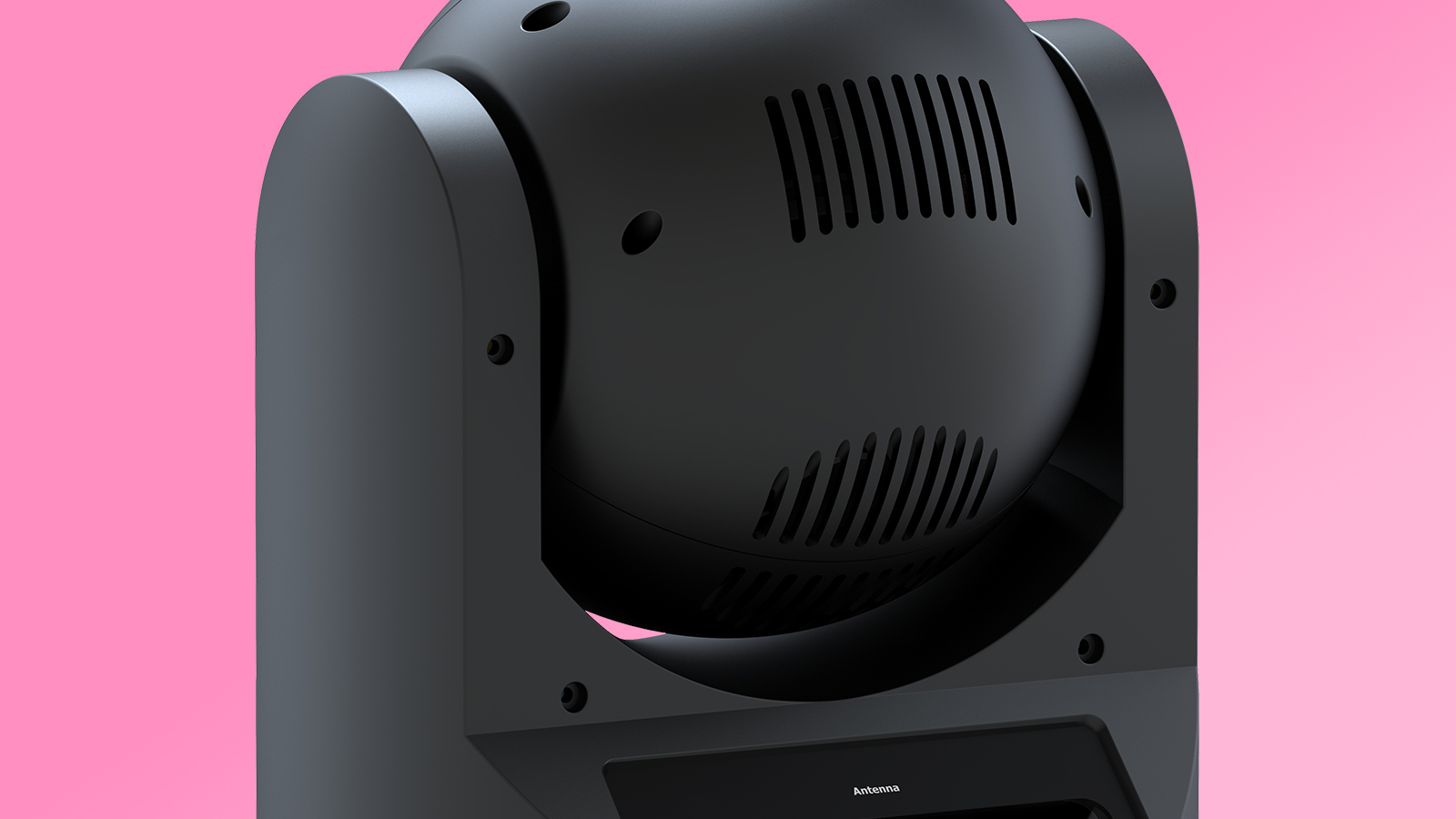

MagicDot™SX is an optically evolved, multipurpose, variant of MagicDot-R, with the same form factor, dimensions and features, including ultra-rapid beam movement and continuous, unlimited, rotation on pan and tilt.

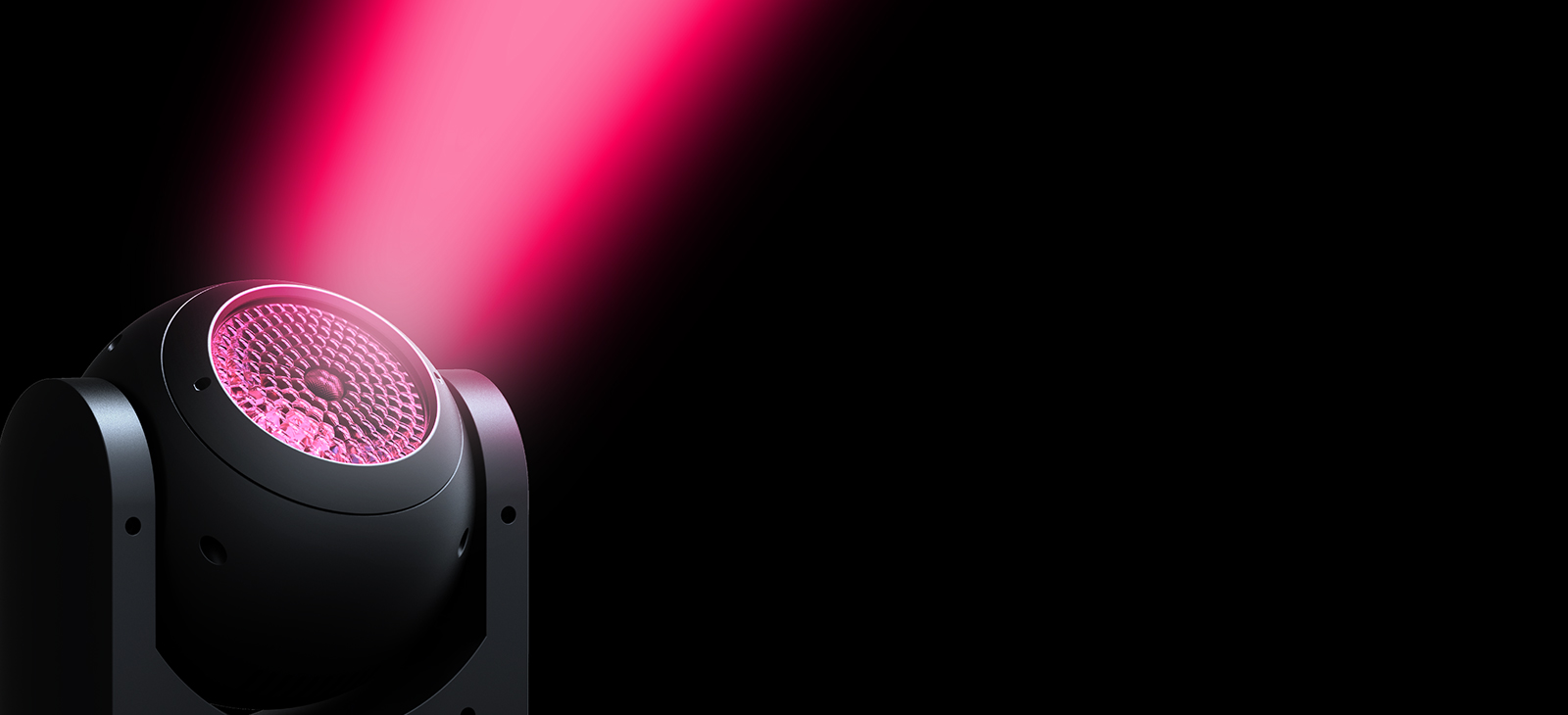

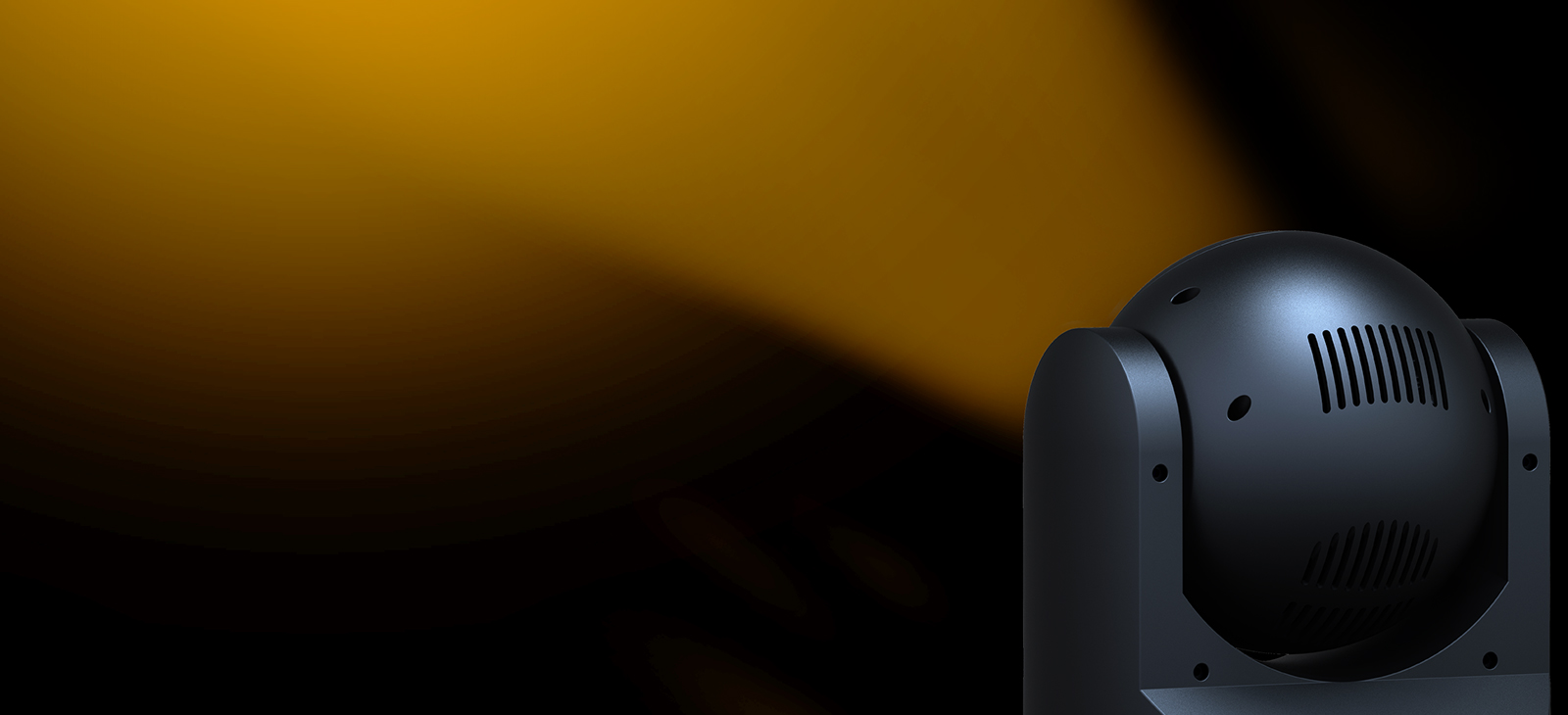

The compact footprint allows multiple MAGICDOT-SX luminaires to be installed with a minimum amount of space between them (patent pending). This new luminaire replaces the 4.5° fixed-focus optics with a revolutionary new 8:1 optical zoom that has a fixed transmitting lens, no visible moving parts and a incredible zoom range of 5° to 40° (patent pending). The short stroke of the zoom system permits MAGICDOT-SX to switch from intense Beam mode to sweeping Wash mode virtually instantaneously.

MagicDot-SX delivers up to 75% optical efficiency in a tight beam, when the 94 mm-diameter collimator is positioned close to the transmitting lens.

This ensures great compatibility and graphical interactivity with MAGICDOT-R units. In addition to DMX-RDM control, MAGICDOT-SX can be controlled via wireless CRMX TiMo RDM from LumenRadio™. MAGICDOT-SX is a versatile tool that meets a vast array of needs both in stage and architectural applications.

Performance

Light Source 60W - RGBW
Lumens 1,500
Luminous Intensity 136,000 cd
Beam Aperture 5° to 40°
Collimator Lens 94mm

Technical specifications

Optics

  • 2 elements 8:1 zoom high-resolution optic system
  • Beam aperture: 5° to 40°
  • Fast motorised linear zoom
  • 75% optic efficiency
  • 94mm PMMA collimator optics

Light source

  • 2,000 lumens RGBW High-Power LED source
  • Total luminaire output: up to 1,500 lumens
  • Luminous intensity: 136,000 cd (narrow beam)
  • Rated sources life: up to 25,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

Movement

  • Extremely accurate positioning
  • Moving-head operated via either 8 or 16 bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
  • PAN and TILT automatic repositioning
  • Moving-head range: infinite PAN and TILT rotation

Colours

  • Sophisticated 4 colours RGBW mixed, reaching high Colour
  • Rendering Index
  • Light beam with no colour shadows, and rich saturated and pastel colour-hues
  • 4.29 billion colours (8 bit resolution)
  • Virtual colour wheel, including most usuals white colour temperature presets
  • Dynamic colour macro effect with variable speed

Dimmer / strobe

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

Hardware features

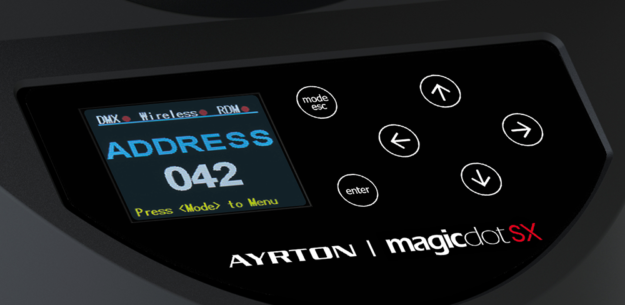

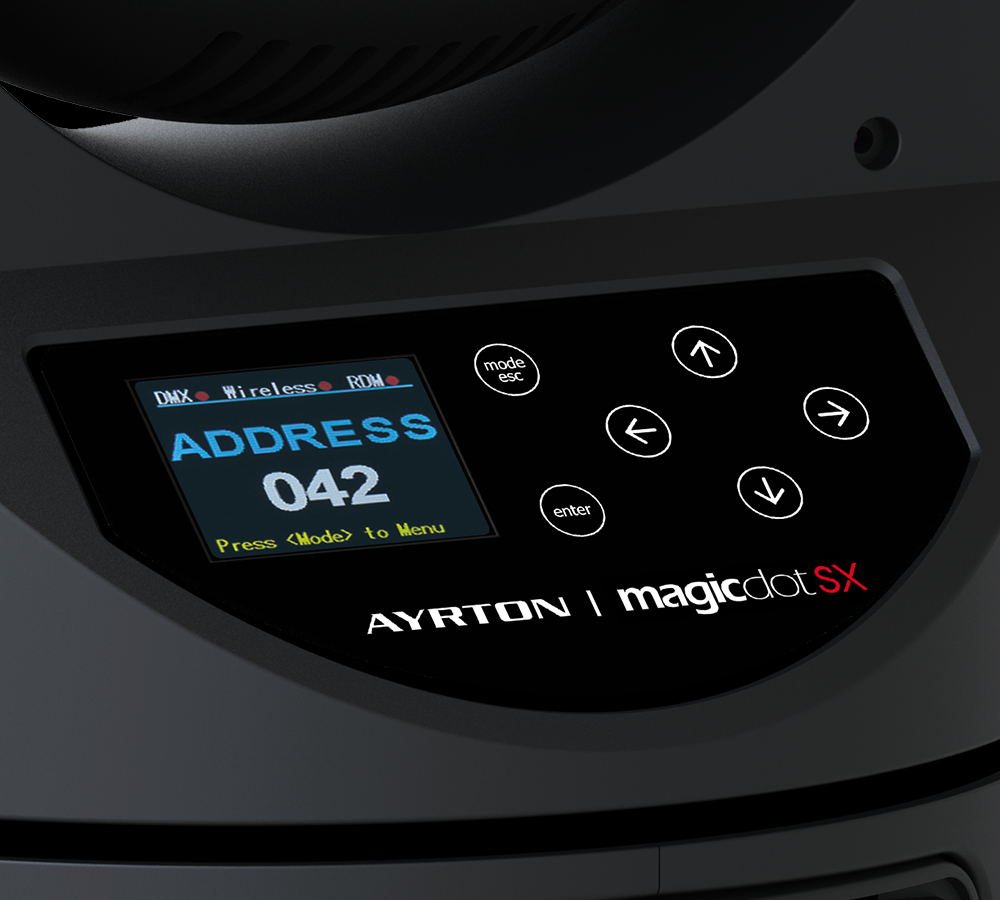

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 6 menu buttons to set the functions
  • Excess temperature protection

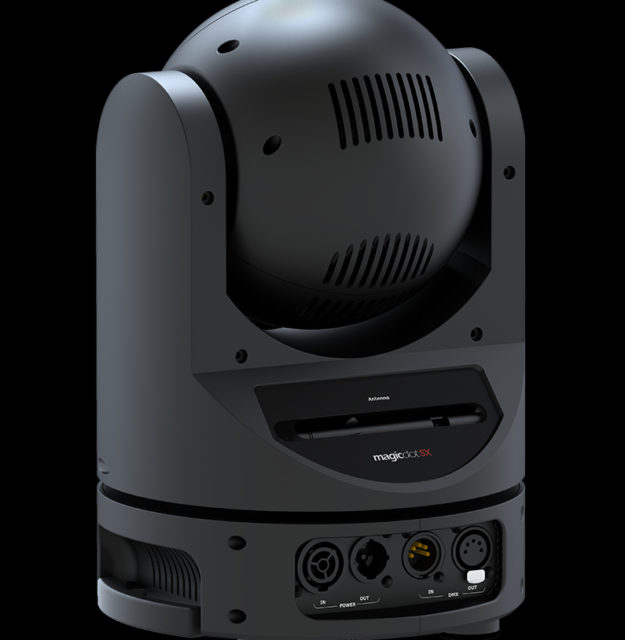

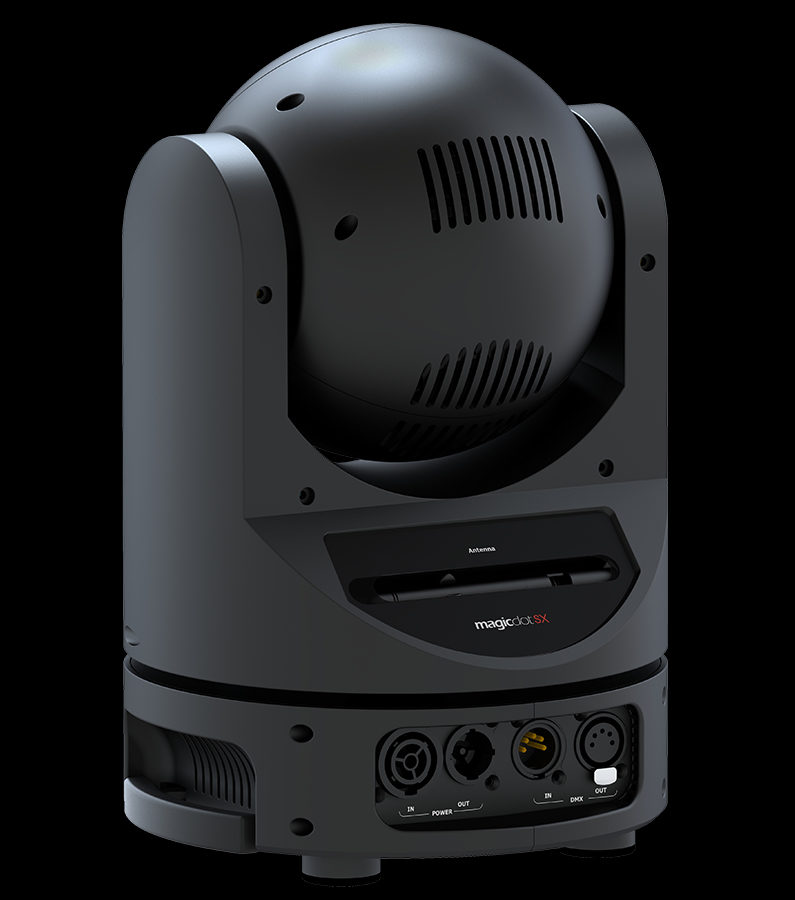

  • Integrated wireless CRMX RDM receiver from LumenRadio™

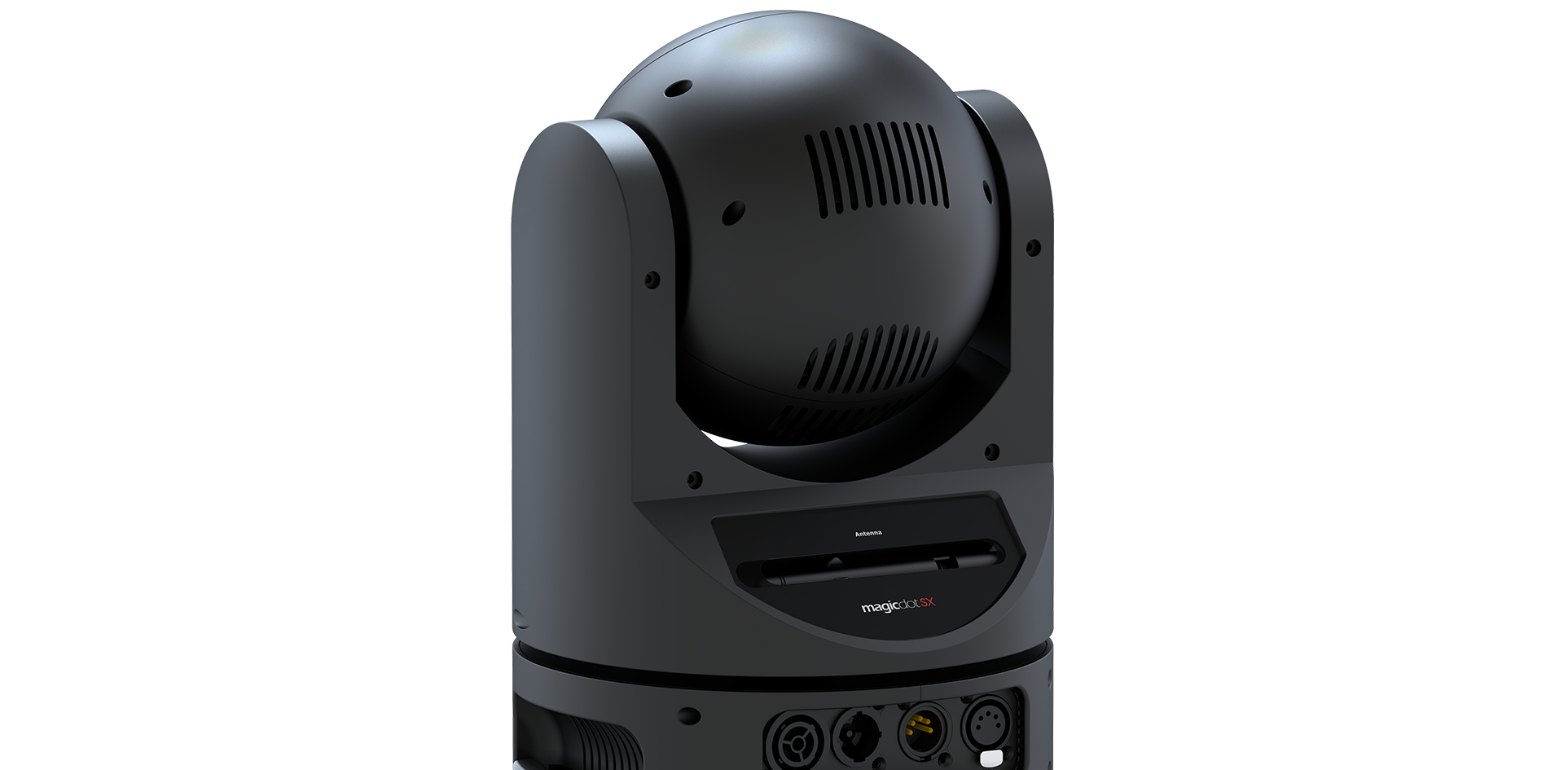

  • XLR 5 pin male and female connectors for DMX connection
  • PowerCON TRUE1 male and female connectors for power connection

Control

  • DMX 512 protocol, through DMX cable or wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 16 to 19 DMX channels)

Power supply

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power 130 Watt max

Cooling system

  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses

Housing

  • Moving-head skeleton made of aluminium and steel metal plates
  • Heatsinks in aluminium
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two sides handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

Installation

  • Fastening brackets system: one Omega 1/4 turn brackets designed for use with standard clamps

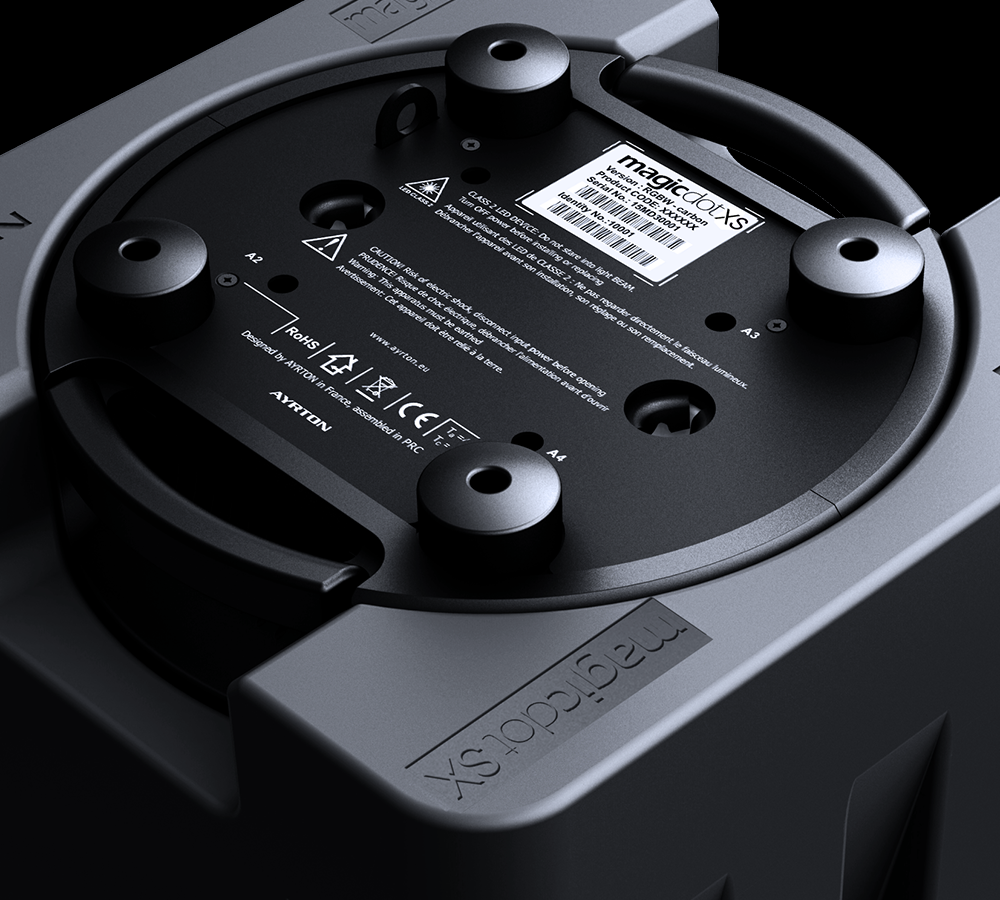

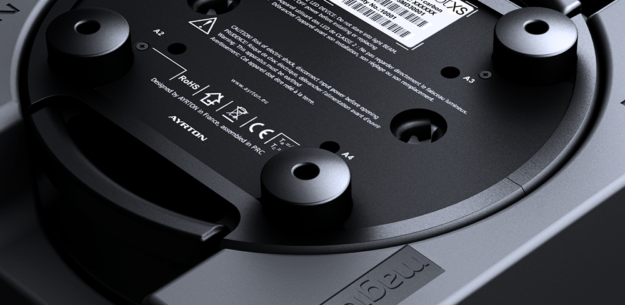

  • Mounting points: two 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

Operating parameters

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 1.0 m (3.28 ft)

Compliance

EU (EMC):

  • EMC Directive 2014/30/EU

EU (LVD):

  • LVD Directive 2014/35/EU

Size

  • Product: 210 x 318 x 210 mm (l x h x d)
    Flight-case foam: 251 x 330 x 251 mm (l x h x d)

Weight

  • Product: 5.7 KG

Product codes

  • 015160: MAGICDOT-SX CREATIVE SOLUTION
