MagicBurst

creative solutions

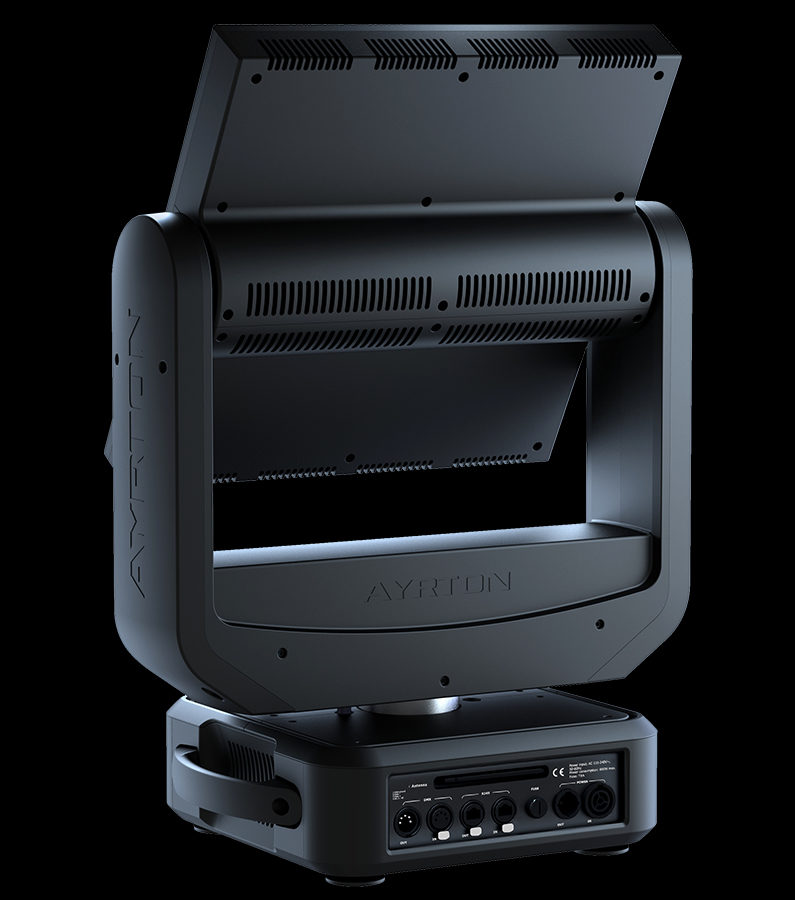

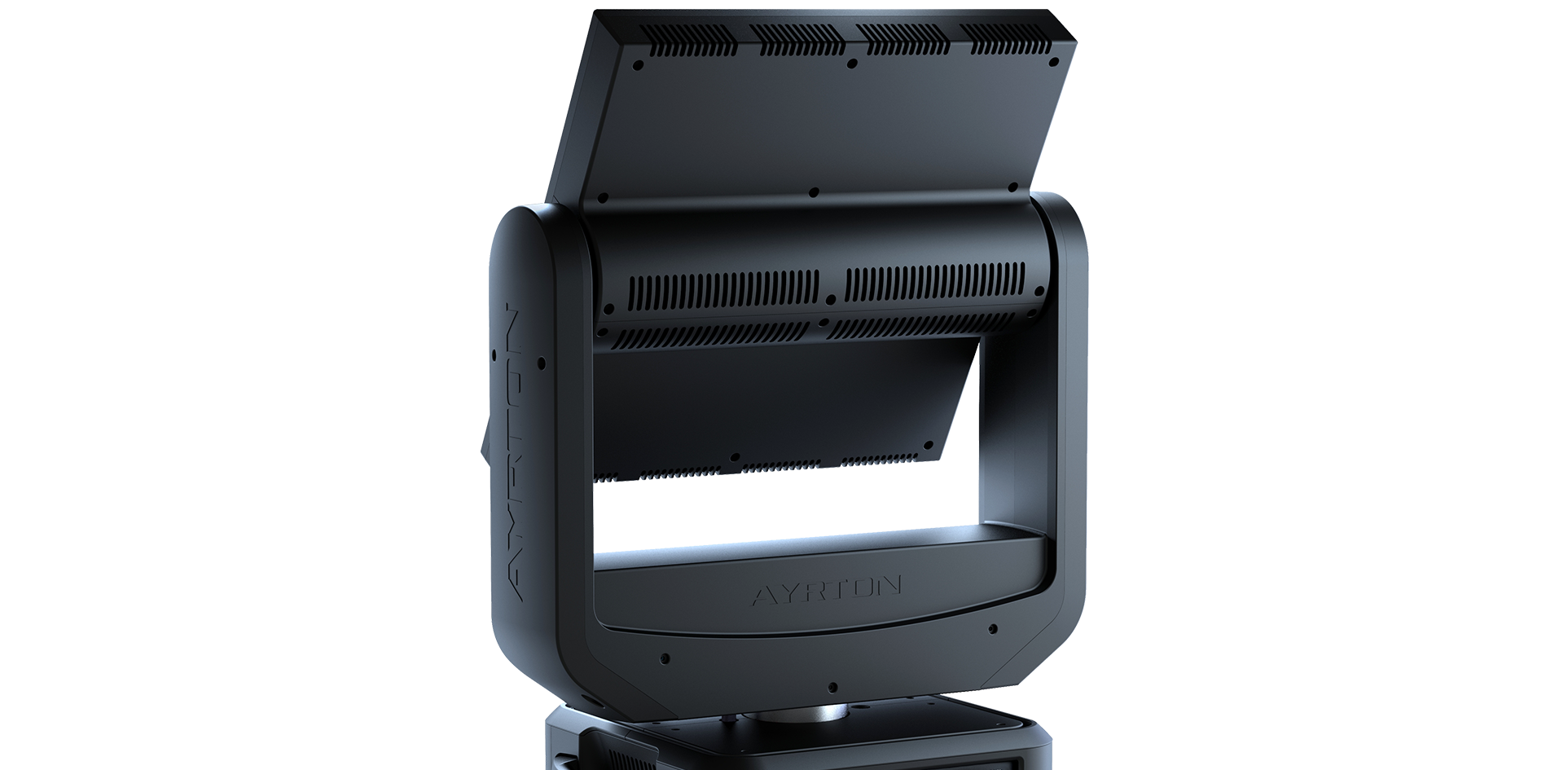

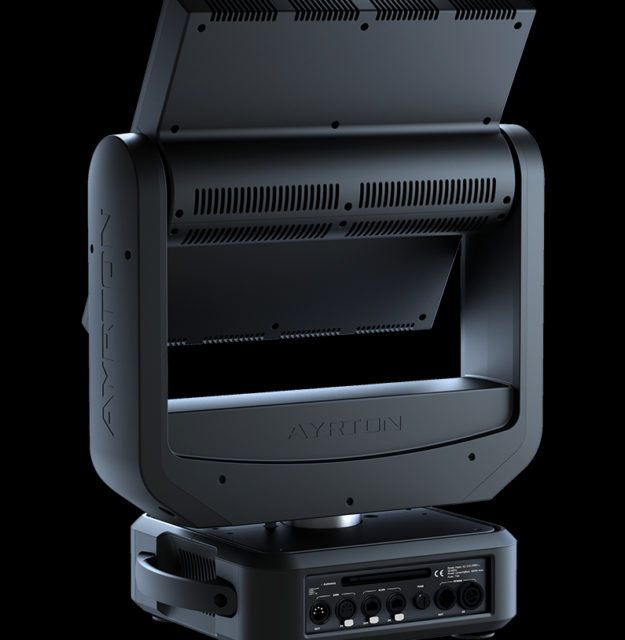

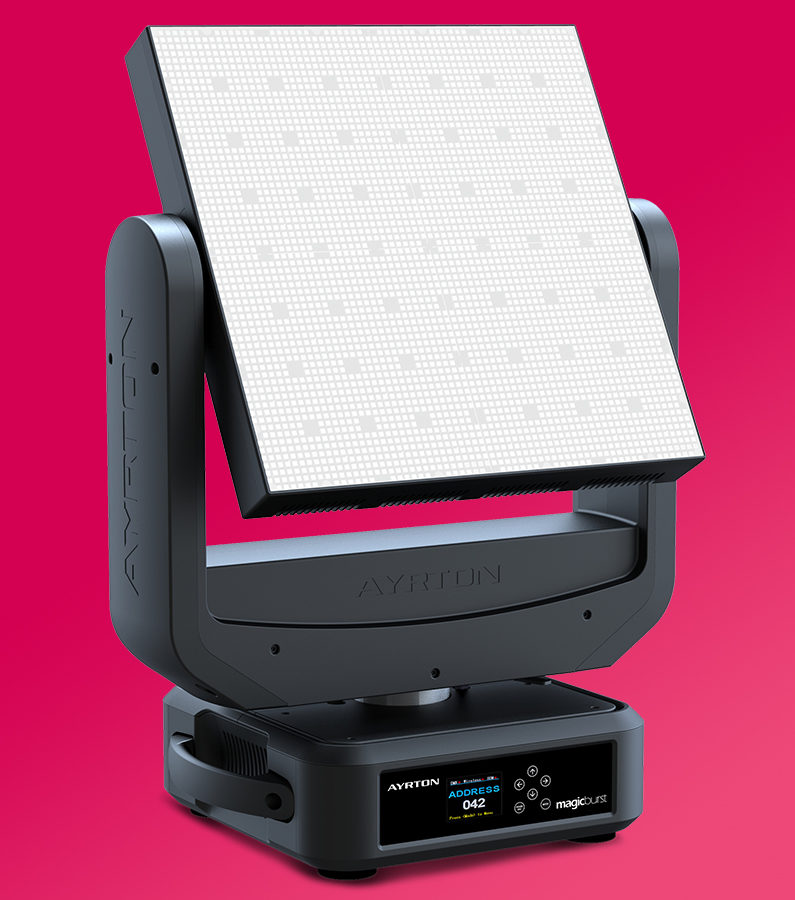

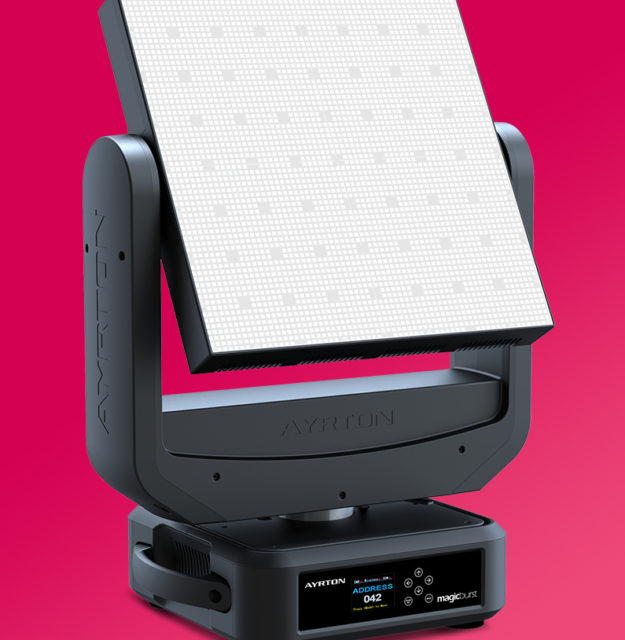

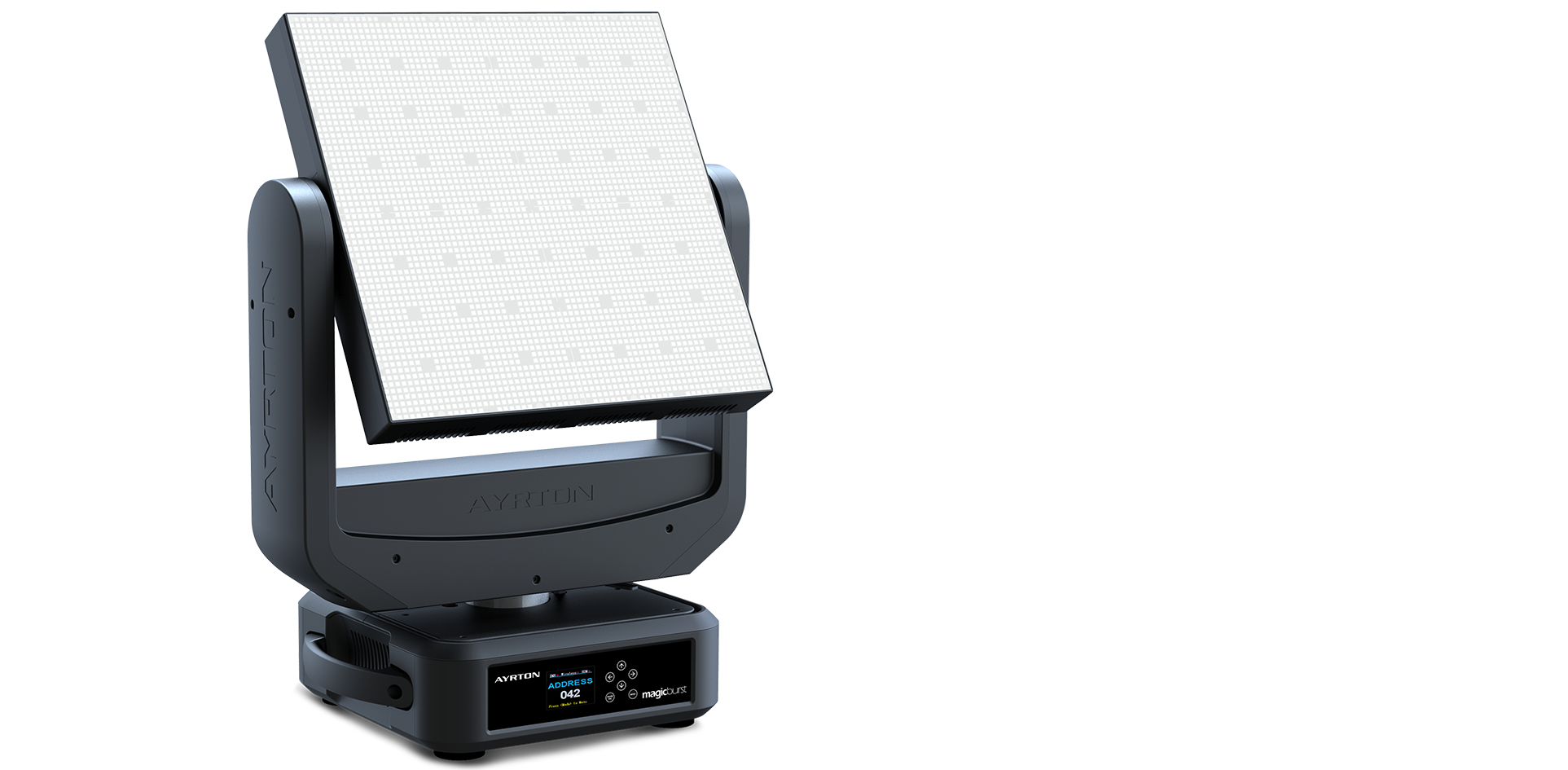

MagicBurst™ is the first high-power graphic LED strobe with continuous, unlimited, rotation on pan and tilt.

A 384 x 384 mm squared face supports 3,840 high-output LEDs grouped into 64 pixels on an 8 x 8 matrix. The strobe duration, speed and intensity of each 60-LED pixel can be individually controlled to create breathtaking stroboscopic effects. A library of fixed images and pre-programmed dynamic effects are accessible from fixture memory.  With a new, state-of-the-art, ultra-compact 1300-Watt power supply, MAGICBURST can deliver peak light output of over 240,000 lumens for several seconds.

With a minimalist design and reduced visual footprint, MagicBurst is similar to the form factor of the DreamPanel™ product family, which allows you to create giant graphic arrays with no visible structure.

The standardized size of the LED matrix permits hybrid screens to be assembled, to allow you to use different units from the AYRTON™ product family in combination. MAGICBURST has extended serial connectivity and can be controlled via DMX-RDM, ArtNet™, sACN or a wireless link using CRMX TiMo RDM from LumenRadio.

Performance

Light Source 1,400W - 5600 K
Lumens 240,000
Pixel Resolution 8 x 8
Pixel Population 64 of 60 LED
Movement Infinite Pan Tilt

Technical specifications

Light source

  • 3,840 mono-chip White LED sources
  • Pixel resolution: 8 x 8
  • Pixel population: 64 of 60 LED
  • Light output: up to 240,000 lumens
  • Rated sources life: up to 25,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

Movement

  • Extremely accurate positioning
  • Moving-head operated via either 8 or 16 bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
  • Moving-head range: infinite PAN and TILT rotation

Colours

  • Monochromatic daylight source perfectly calibrated at 5600 K
  • Color rendering index greater than 85

Effects

  • Graphical effects capabilities
  • Built-in pattern effects with speed and fade controls for scenic applications

Dimmer / strobe

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100%
  • Individual control of the speed , duration and intensity for each pixel
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

Hardware features

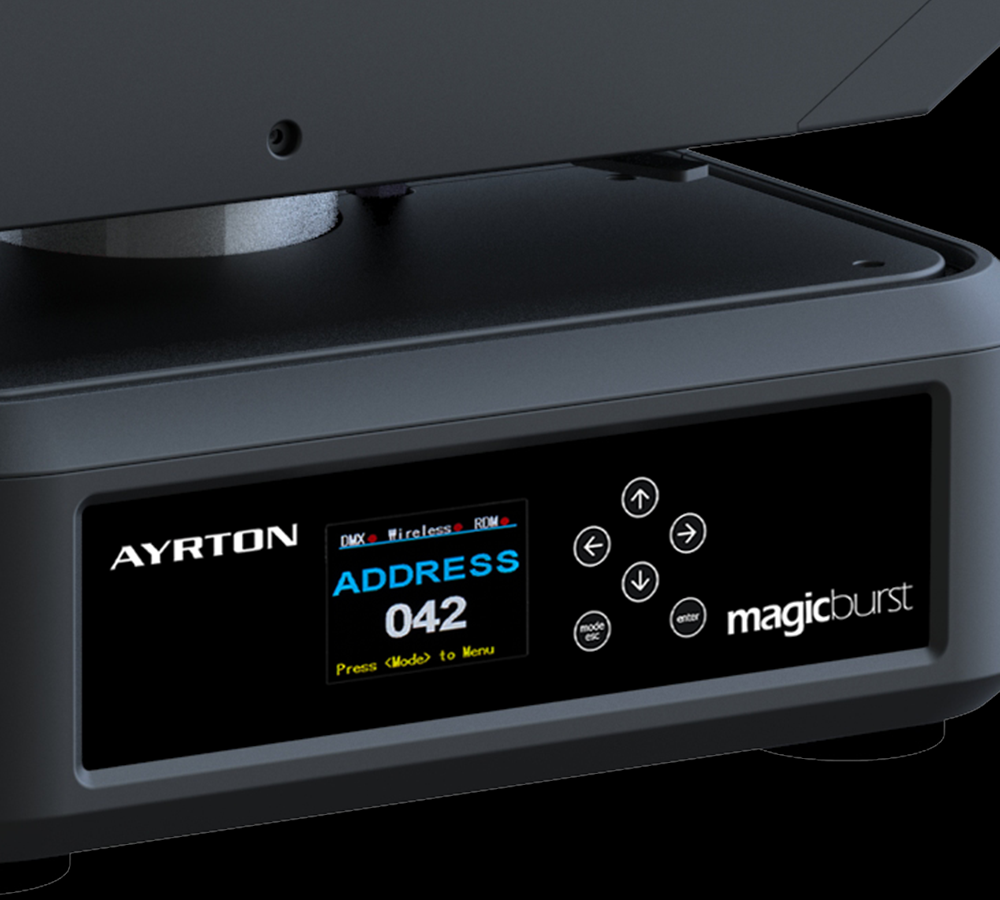

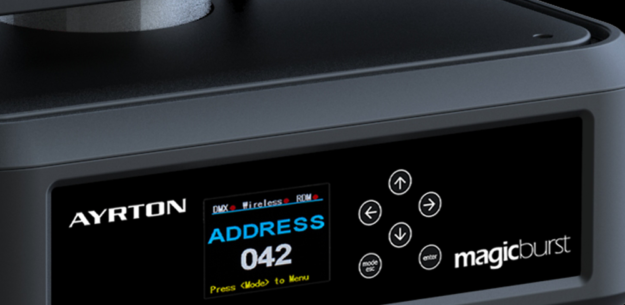

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 6 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
  • PowerCON TRUE1 male and female connectors for power connection

Control

  • DMX 512 protocol, through DMX cable or wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 4 DMX modes (from 12 to 203 DMX channels)

Power supply

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power 1,400 Watt max

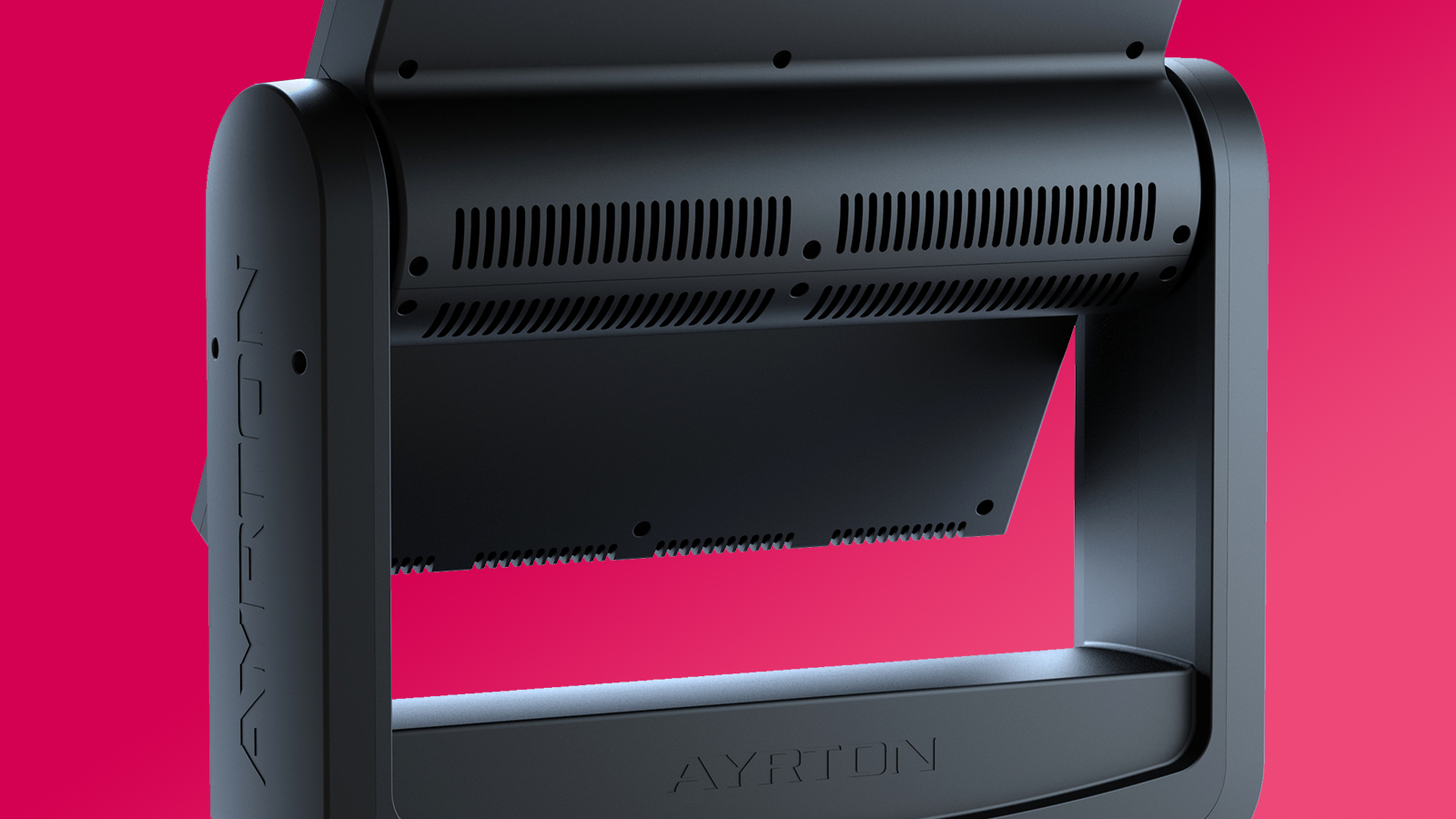

Cooling system

  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses

Housing

  • Moving-head skeleton made of aluminium and steel metal plates
  • Heatsinks in aluminium, satin finish
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two sides handles for transportation

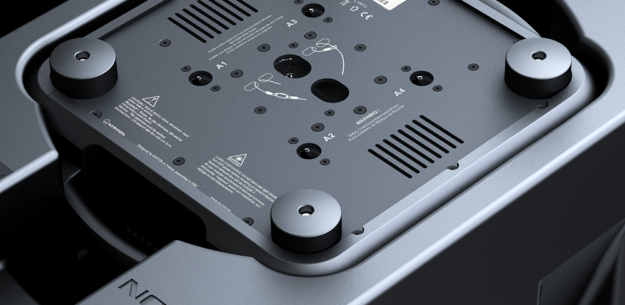

  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

Installation

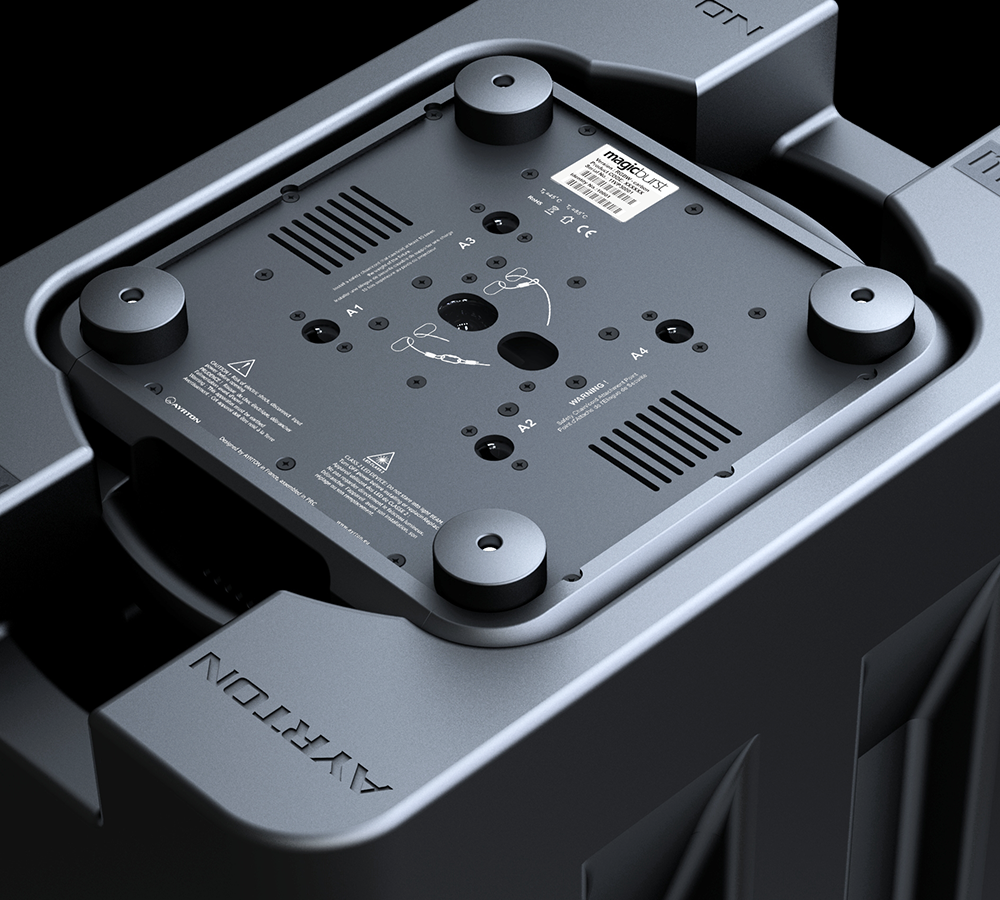

  • Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

Operating parameters

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 1.0 m (3.28 ft)

Compliance

EU (EMC):

  • EMC Directive 2014/30/EU

EU (LVD):

  • LVD Directive 2014/35/EU

Size

  • Product: 473 x 630 x 307 mm (l x h x d)
  • Flight-case Foam : 550 x 662 x 367 mm (l x h x d)

Weight

  • Product: 18.9 KG

Product codes

  • 016850: MAGICBURST CREATIVE SOLUTION
