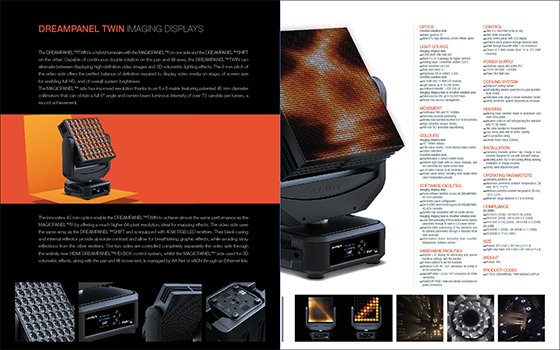

DreamPanel Twin

a visual revolution

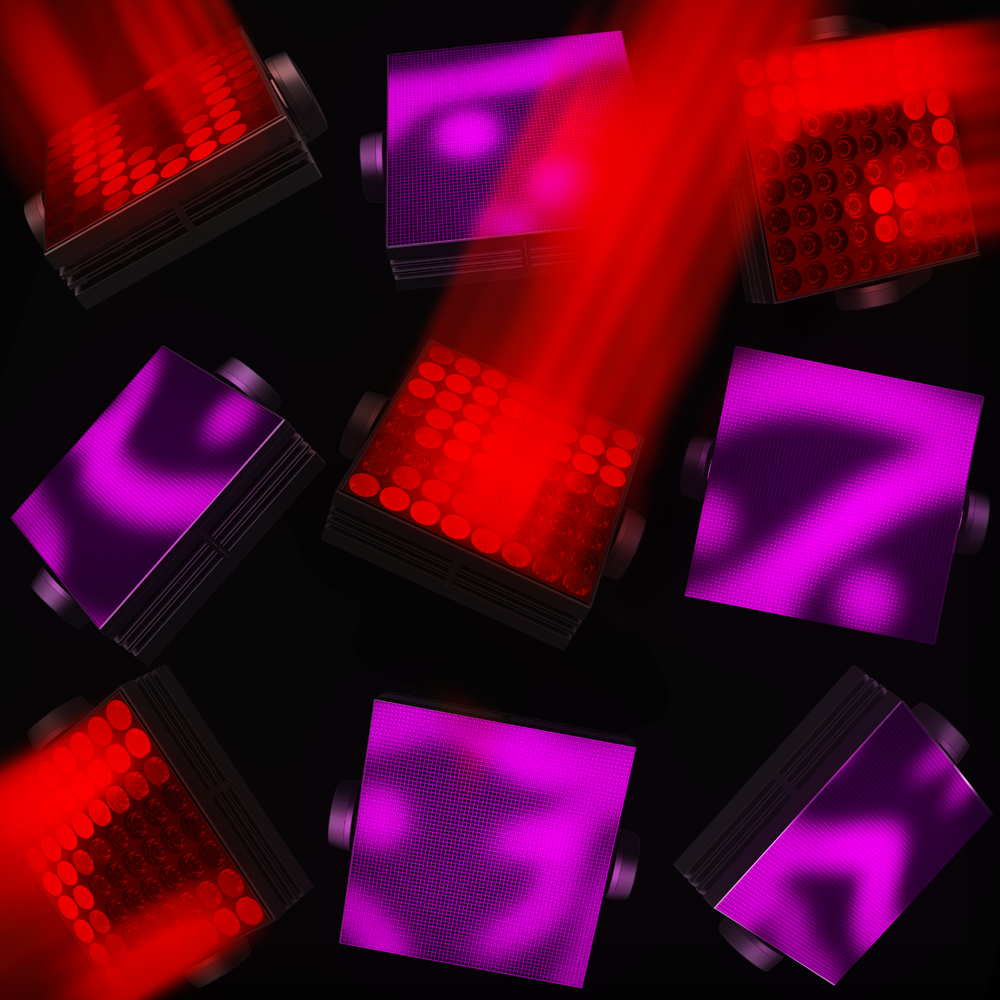

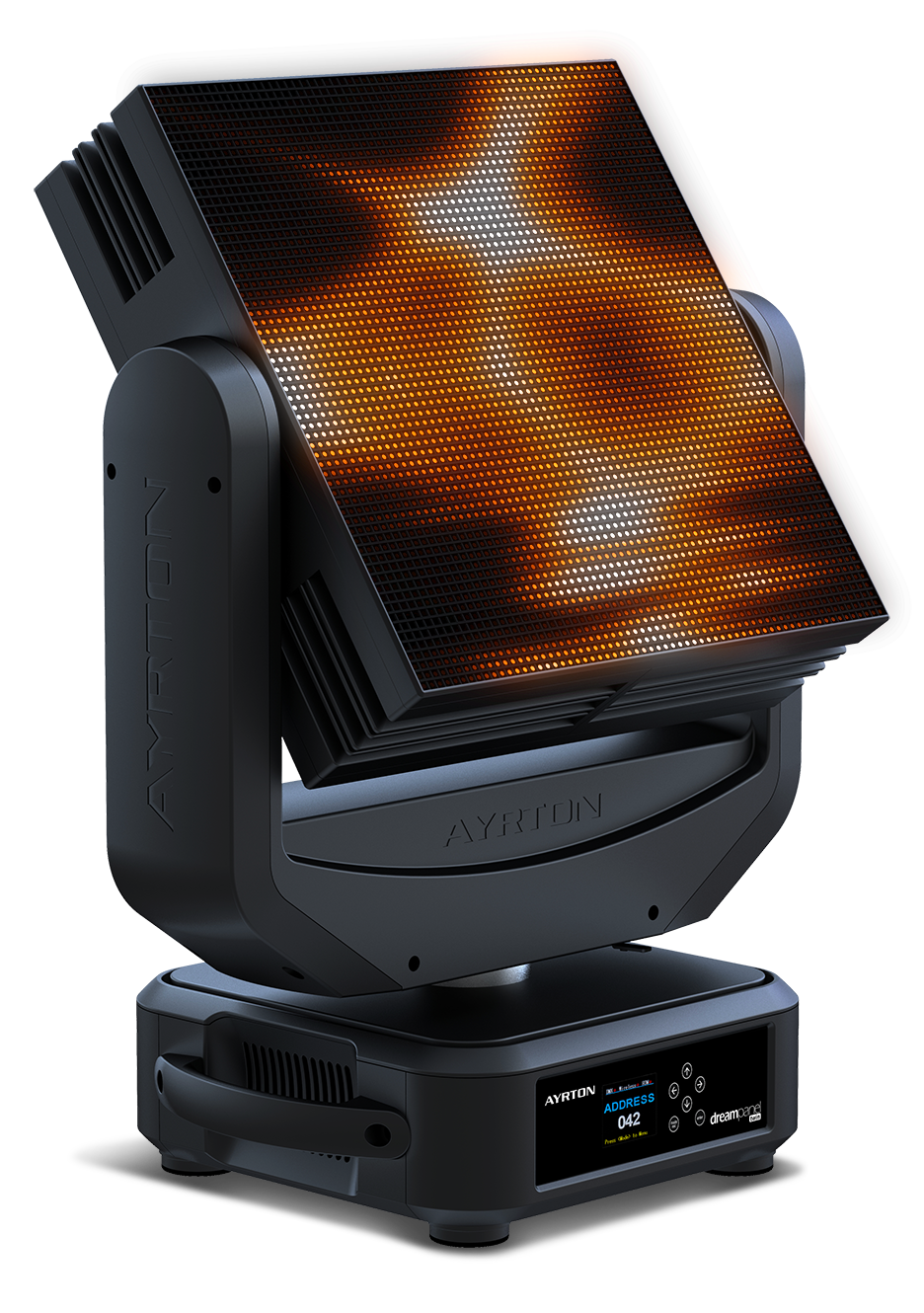

The DreamPanel™Twin is a hybrid luminaire with the MagicPanel™ on one side and the DreamPanel Shift on the other.

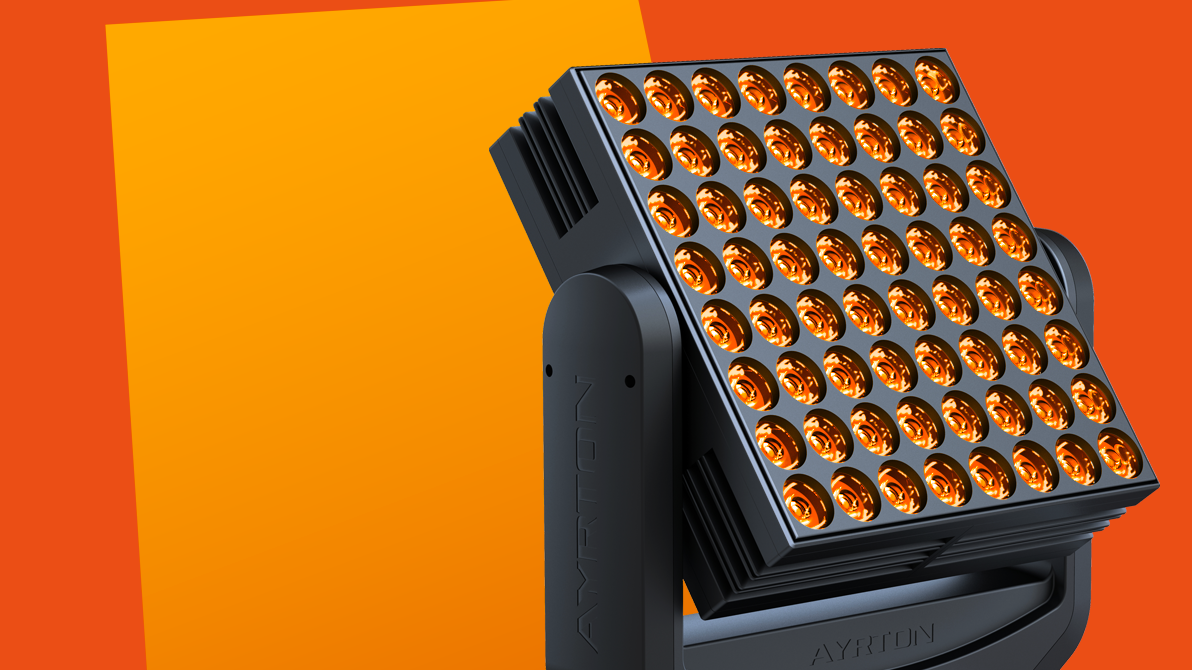

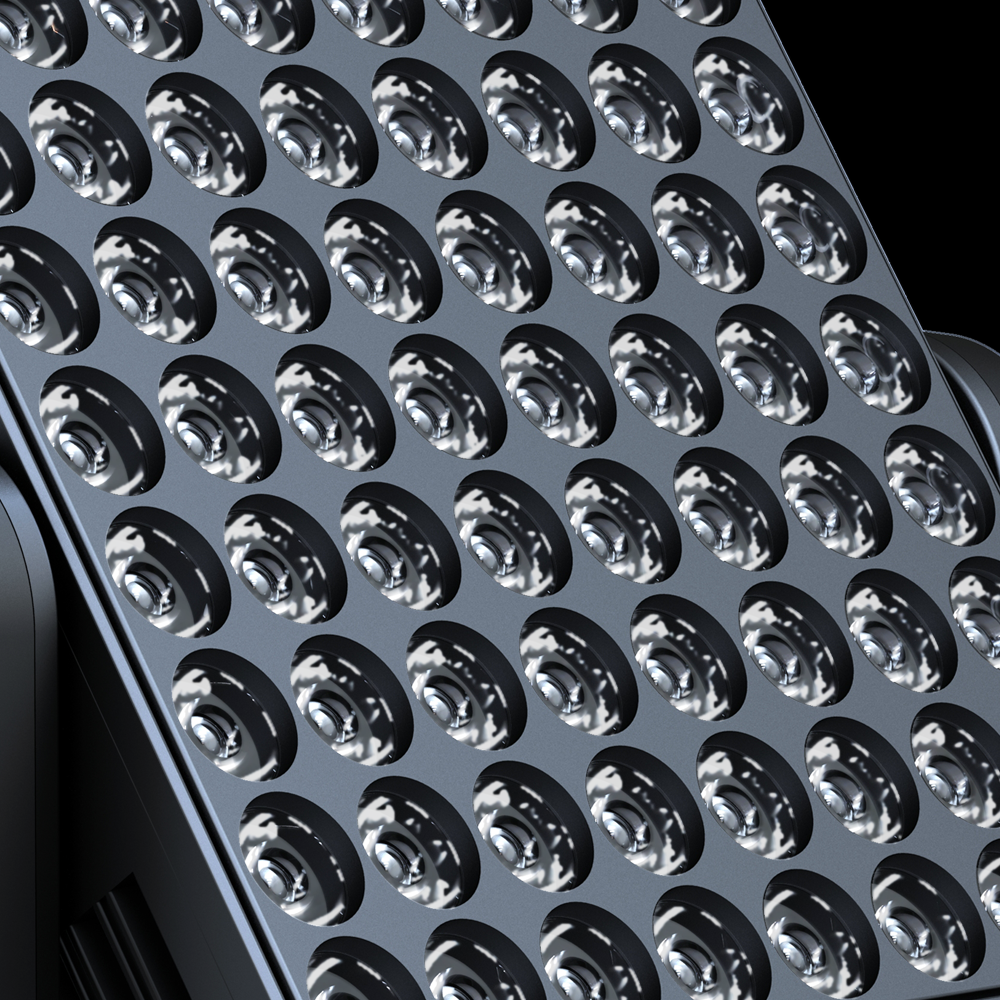

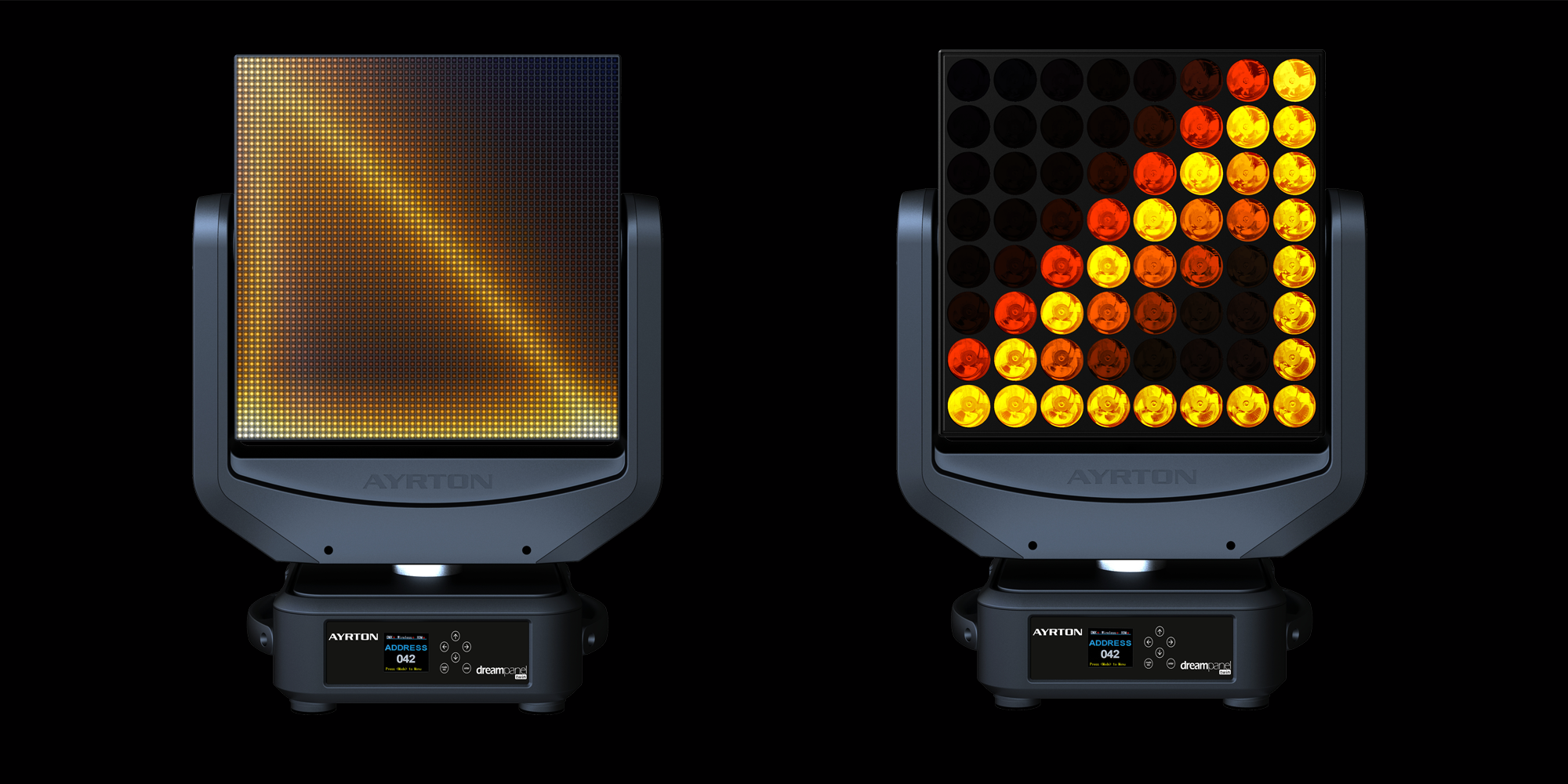

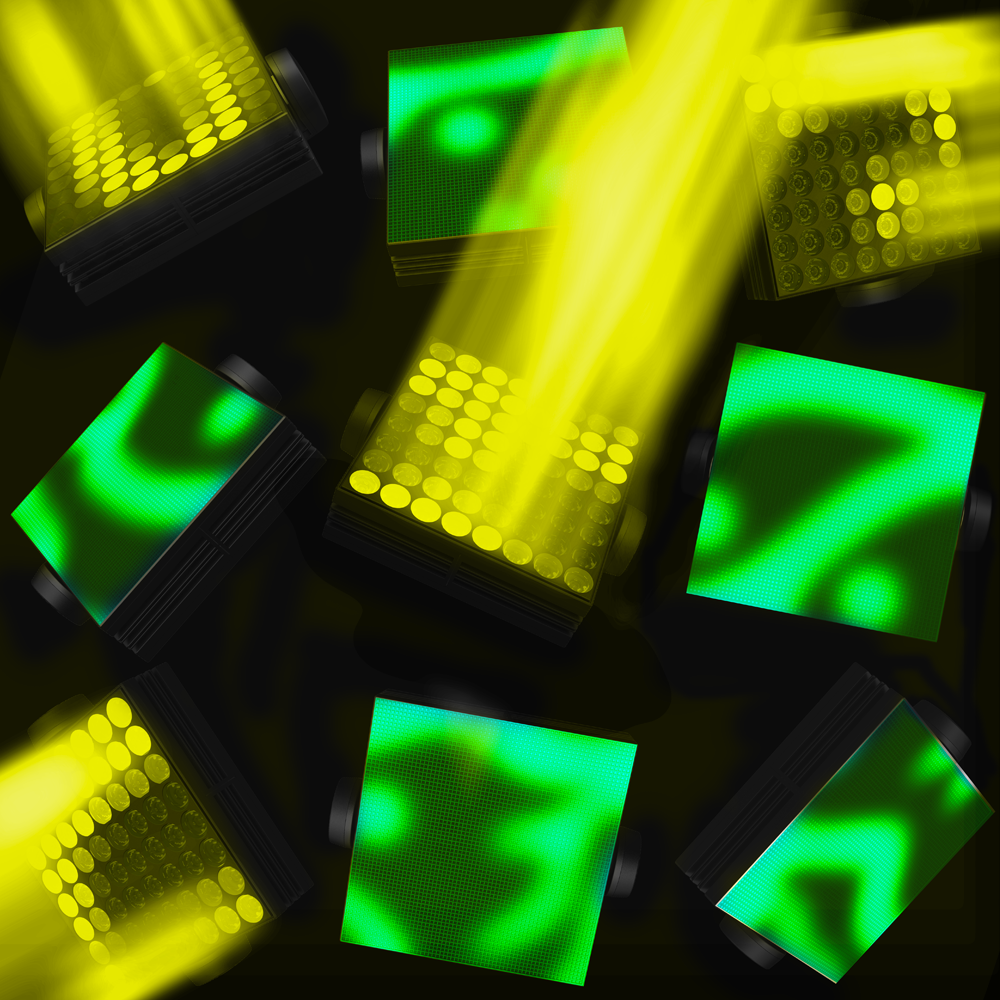

Capable of continuous double rotation on the pan and tilt axes, the DREAMPANEL TWIN can alternate between displaying high-definition video images and 3D volumetric lighting effects. The 6 mm pitch of the video side offers the perfect balance of definition required to display video media on stage, of screen size for enabling full HD, and of overall system brightness. The MAGICPANEL side has improved resolution thanks to an 8 x 8 matrix featuring patented 45 mm diameter collimators that can obtain a full 6° angle and centre-beam luminous intensity of over 73 candela per lumen, a record achievement.

The innovative 45 mm optics enable the DreamPanel Twin to achieve almost the same performance as the MagicPanel-R by offering a much higher 64-pixel resolution, ideal for mapping effects.

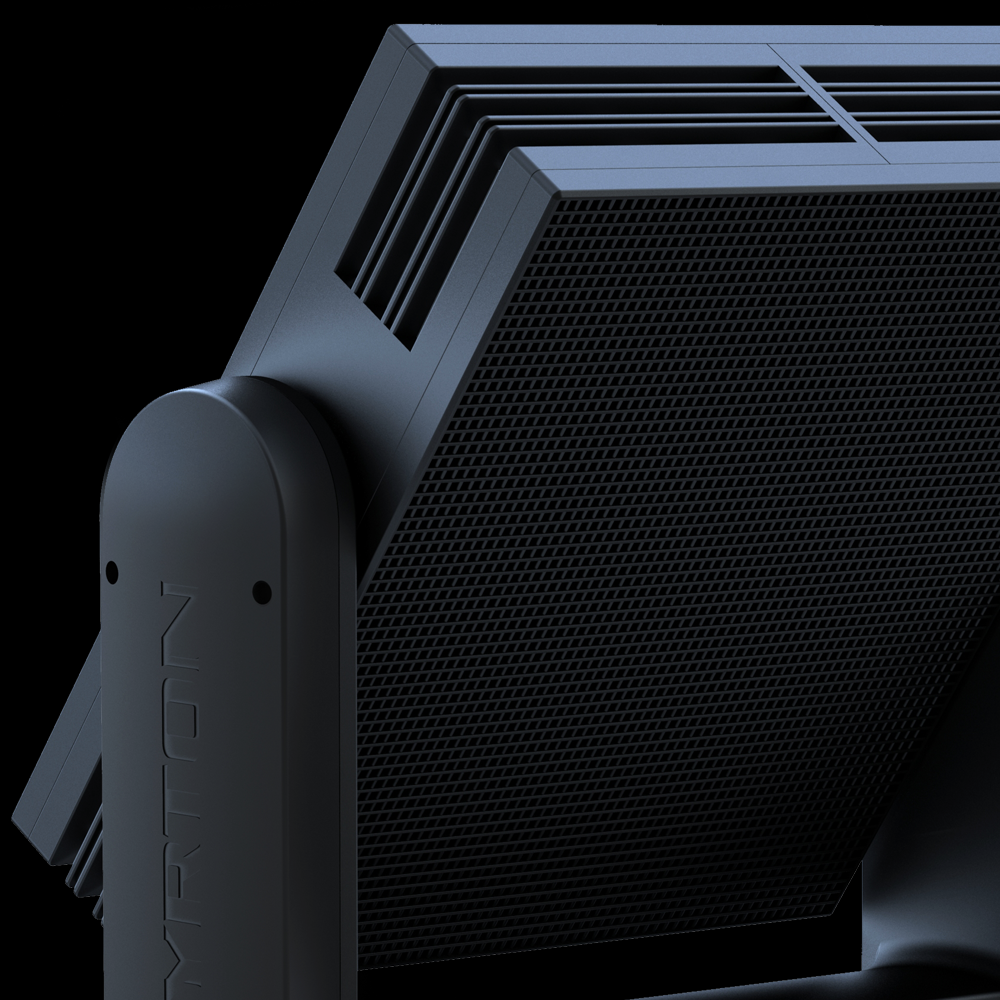

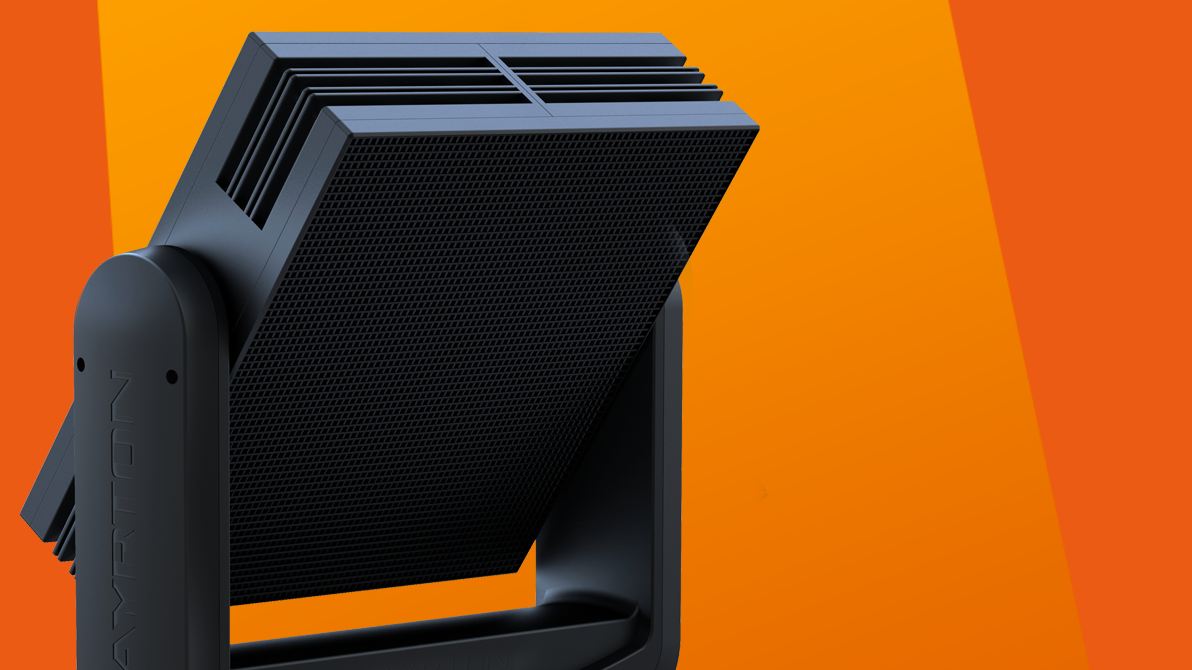

The video side uses the same array as the DREAMPANEL SHIFT and is equipped with 4096 RGB LED emitters. Their black casing and internal reflector provide absolute contrast and allow for breathtaking graphic effects, while avoiding stray reflections from the other emitters. The two sides are controlled completely separately-the video side through the entirely new HDMI DREAMPANEL HD-BOX control system, whilst the MAGICPANEL side used for 3D volumetric effects, along with the pan and tilt movement, is managed by Art-Net or sACN through an Ethernet link.

Performance

Light Source 1,140W - Hybrid
Lumens 25,000 3D CS side
Brightness 3,500 nit Video side
Pitch - Resolution 6mm - 64 x 64 Video side
Movement Infinite Pan Tilt

Technical specifications

Optics

  • Creative solution side:
  • Beam aperture: 6°
  • 85% optic efficiency
  • 64 x 45mm PMMA collimator optics

Light source

Imaging display side:

  • 4096 Multi-chip RGB LED sources
  • Black PLCC-6 package for higher contrast with diffused silicone resin
  • Viewing angle: 120° lambertian emitter
  • Pixel resolution: 64 x 64
  • Pixel pitch (mm): 6
  • Brightness (nit or cd/M2): 3,500

Creative solution side:

  • 64 x 500 lumens RGBW High-Power LED sources
  • Light output: up to 25,000 lumens
  • Luminous intensity: 1,775,000 cd

Imaging display side & Creative solution side:

  • Rated sources life: up to 25,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

Movement

  • Extremely accurate positioning
  • Moving-head operated via either 8 or 16 bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
  • Moving-head range: infinite PAN and TILT rotation

Colours

Imaging display side:

  • 16.7 million colours
  • 8 bit colour control
  • 14 bit internal colour control
  • Colour calibration of each pixel to achieve a perfect colour evenness of the entire panel

Creative solution side:

  • Sophisticated 4 colours RGBW mixed, reaching high Colour
  • Rendering Index
  • Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
  • 4.29 billion colours (8 bit resolution)
  • Virtual colour wheel, including most usuals white colour temperature presets
  • Dynamic colour macro effect with variable speed

Effects

Creative solution side:

  • Graphical effects capabilities
  • Effects can be coupled with beam, wash or matrix applications
  • Built-in pattern effects with speed and fade controls for scenic applications

Dimmer / strobe

Creative solution side:

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

Imaging display side:

  • Panel software features access via DREAMPANEL HD-BOX controller
  • Geometric panel configuration via HDMI DREAMPANEL MANAGER
  • DVI & HDMI video format ingress via DREAMPANEL HD-BOX controller
  • System fully compatible with all media systems (media server) with scale-downed image size (scaling mode) and image rotation capabilities via DREAMPANEL HD-BOX controller
  • Internal software update via DREAMPANEL HD-BOX controller

Imaging display side & Creative solution side:

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

Hardware features

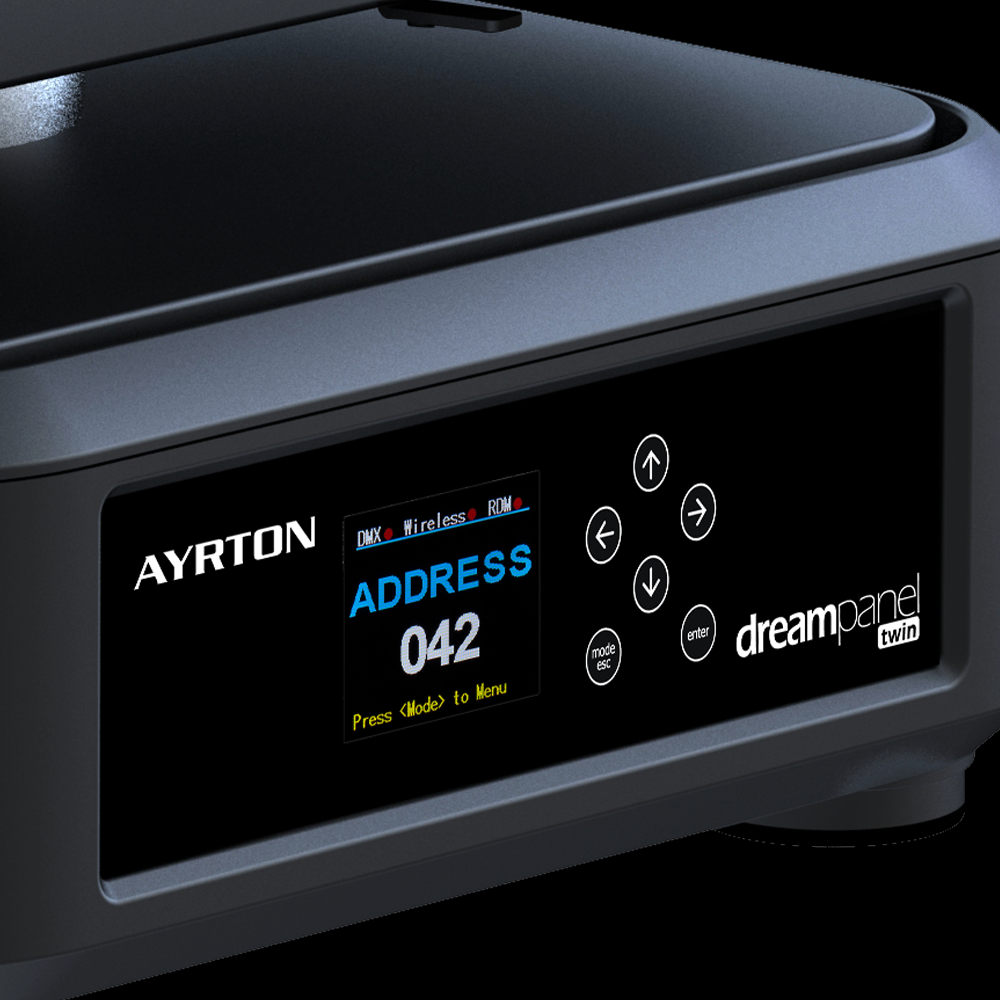

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 6 menu buttons to set the functions
  • Excess temperature protection
  • Neutrik® HDMI 1.3a IN / OUT connectors for HDMI connection
  • Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
  • PowerCON TRUE1 male and female connectors for power connection

Control

  • DMX 512 protocol through Ethernet cable only
  • DMX-RDM compatible
  • ArtNet™ & sACN protocol through Ethernet cable
  • HDMI protocol through HDMI 1.3a cable
  • Local control panel, with LCD display
  • Choice of 3 DMX Modes (from 18 to 272 DMX channels)

Power supply

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power 1,100 Watt max

Cooling system

  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses

Housing

  • Moving-head skeleton made of aluminium and steel metal plates
  • Heatsinks in aluminium, satin finish
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two sides handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

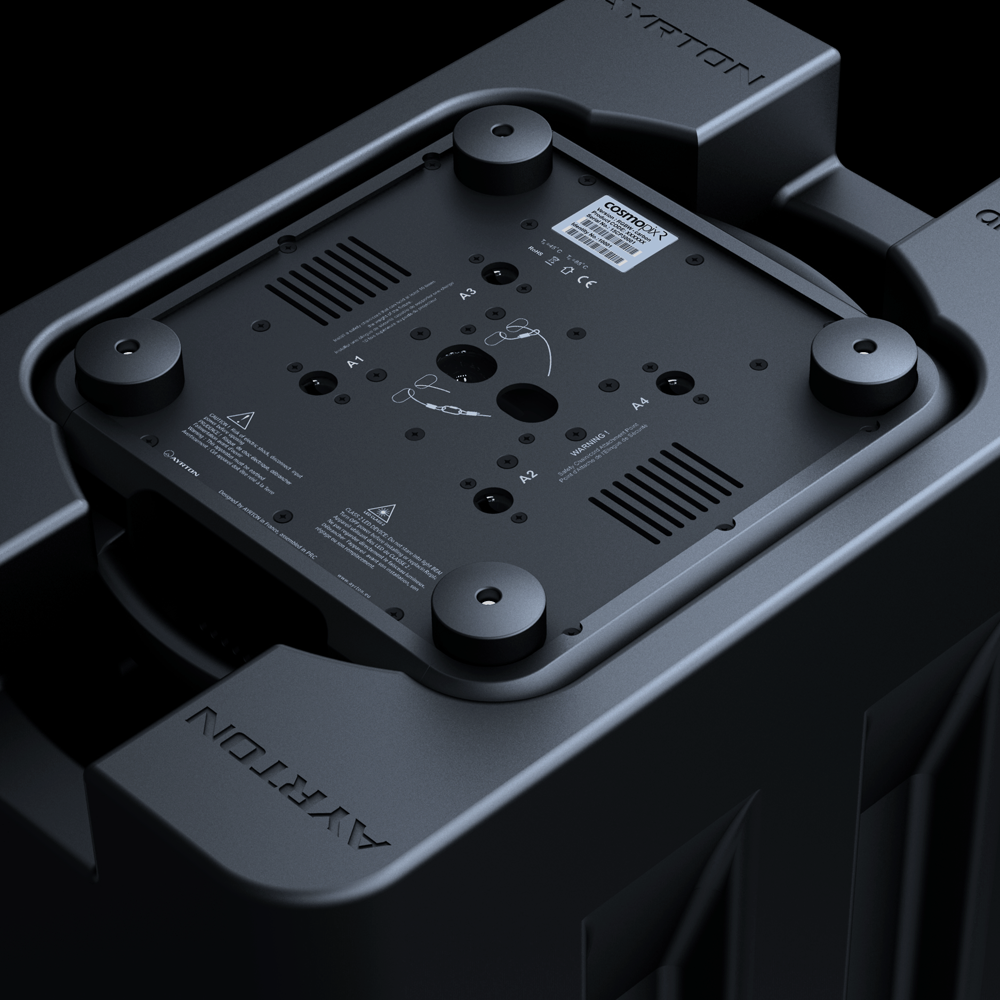

Installation

  • Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
  • Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

Operating parameters

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 2.5 m (8.20 ft)

Compliance

EU (EMC):

  • EMC Directive 2014/30/EU

EU (LVD):

  • LVD Directive 2014/35/EU

Size

  • Product: 473 x 641 x 407 mm (l x h x d)
  • Flight-case Foam: 559 x 662 x 367 mm (l x h x d)

Weight

  • Product: 23.8 KG

Product codes

  • 017550: DREAMPANEL TWIN IMAGINE DISPLAY
