DreamPanel HD-Box

the heart of the system

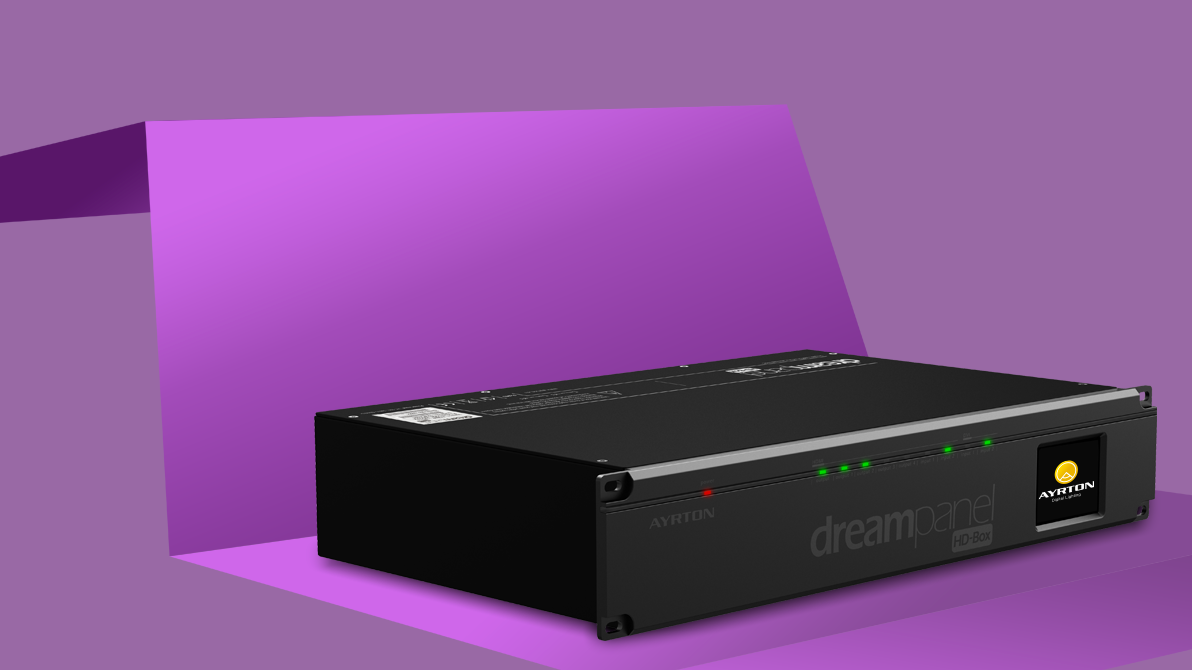

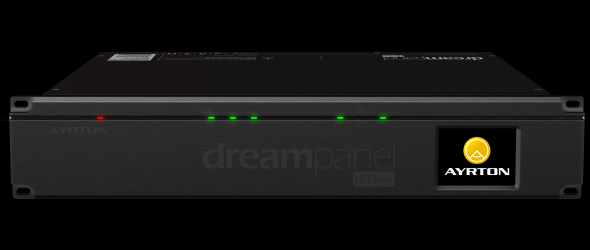

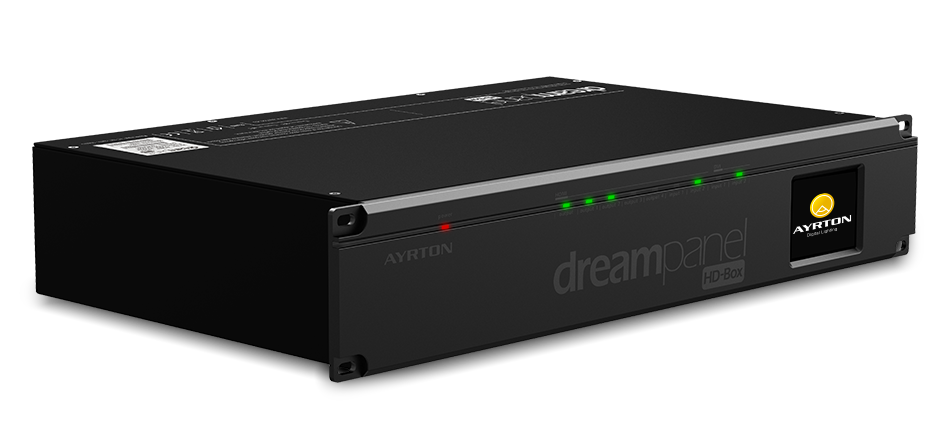

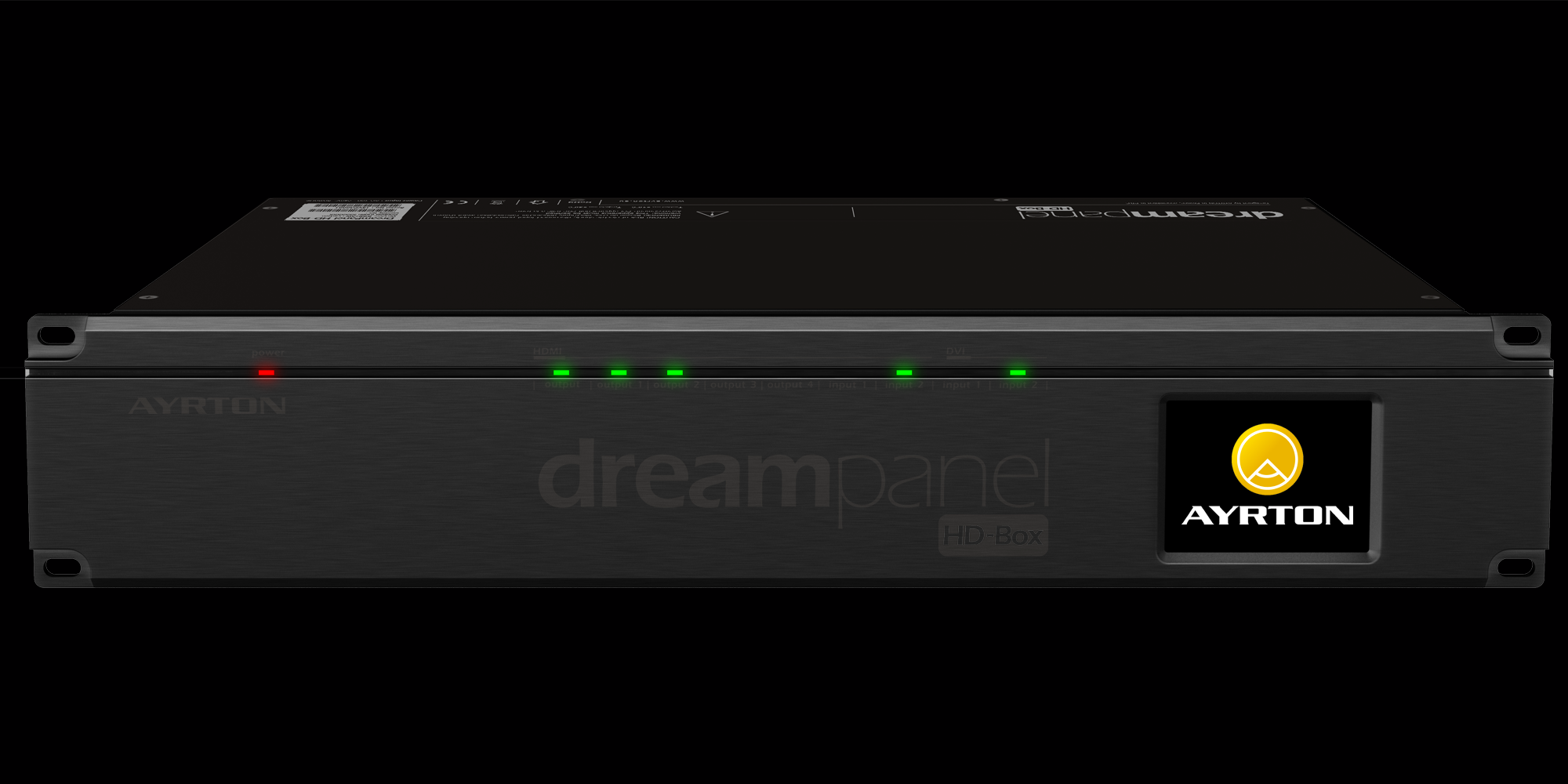

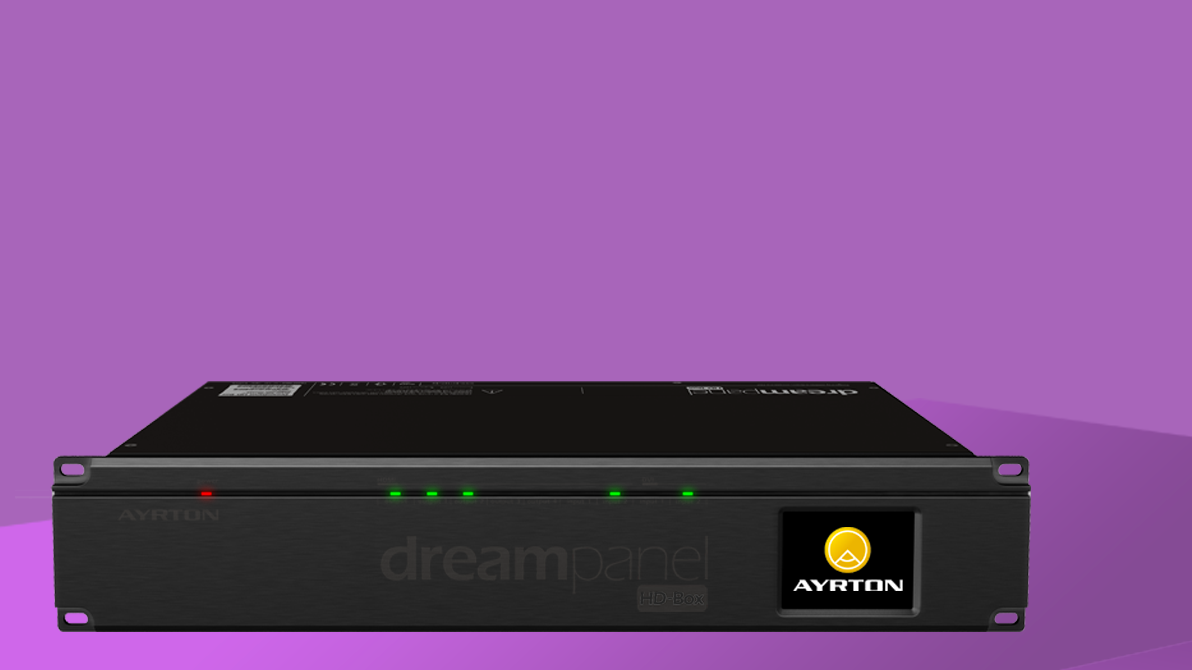

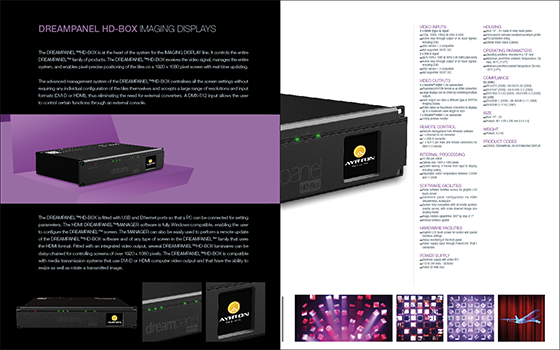

The DreamPanel™HD-BOX is at the heart of the system for the Imaging Display line.

It controls the entire DREAMPANEL family of products. The DREAMPANEL HD-BOX receives the video signal, manages the entire system, and enables pixel-precise positioning of the tiles on a 1920 x 1080 pixel screen with real-time updating. The advanced management system of the DREAMPANEL HD-BOX centralises all the screen settings without requiring any individual configuration of the tiles themselves and accepts a large range of resolutions and input formats (DVI-D or HDMI), thus eliminating the need for external converters. A DMX-512 input allows the user to control certain functions through an external console.

The DreamPanel™HD-BOX is fitted with USB and Ethernet ports so that a PC can be connected for setting parameters.

The HDMI DREAMPANEL MANAGER software is fully Windows-compatible, enabling the user to configure the DREAMPANEL screen. The MANAGER can also be easily used to perform a remote update of the DREAMPANEL HD-BOX software and of any type of screen in the DREAMPANEL family that uses the HDMI format. Fitted with an integrated video output, several DREAMPANEL HD-BOX luminaires can be daisy-chained for controlling screens of over 1920 x 1080 pixels. The DREAMPANEL HD-BOX is compatible with media transmission systems that use DVI-D or HDMI computer video output and that have the ability to resize as well as rotate a transmitted image.

Performance

HDMI Input Up to 1080p
DVI-D Input Up to 1080p
Video Output 4 x HDMI 1.3a
Canvas Size 1920 x 1080 pixels
Housing Rack 19" - 2U

Technical specifications

Video inputs

2 X HDMI (type A) Input

  • 720p, 1080i, 1080p @ 50Hz & 60Hz
  • Active loop-through output of all input signals, including EDID
  • EDID version 1.3 compatible
  • Not supported: HDCP, CEC

2 X DVI-D Input

  • Up to 1920 x 1080 @ 60Hz (148.5MHz pixel clock)
  • Active loop-through output of all input signals, including EDID
  • EDID version 1.3 compatible
  • Not supported: HDCP, CEC

Video outputs

4 X Neutrik® HDMI 1.3a connectors

  • Proprietary AYRTON format on an HDMI connectors
  • Large displays can be driven by combining multiple outputs
  • Each output can drive a different type of AYRTON Imaging Display
  • HDMI cables as the primary connection to displays up to a maximum cable length of 40m (Cable tested: Klotz HDMI A – HDMI A – Ref: HA-HA-L40)

1 X Neutrik® HDMI 1.3a connector

  • 1080p preview monitor

Remote control

  • Remote management from Windows software
  • 1 x Ethernet RJ-45 connector
  • 1 x USB-B connector
  • 1 x XLR 5 pin male and female connectors for DMX 512 remote

Internal processing

  • 12 bits per colour
  • Canvas size: 1920 x 1080 pixels
  • System latency: 4 frames from input to display, including scaling
  • Adjustable colour temperature between 2,000K and 11,000K

Software facilities

  • Panel software facilities access via graphic LCD touch screen
  • Geometric panel configuration via HDMI DREAMPANEL MANAGER
  • System fully compatible with all media systems (media server) with scale-downed image size (scaling mode)
  • Image rotation capabilities: 360° by step of 1°
  • Internal software update

Hardware facilities

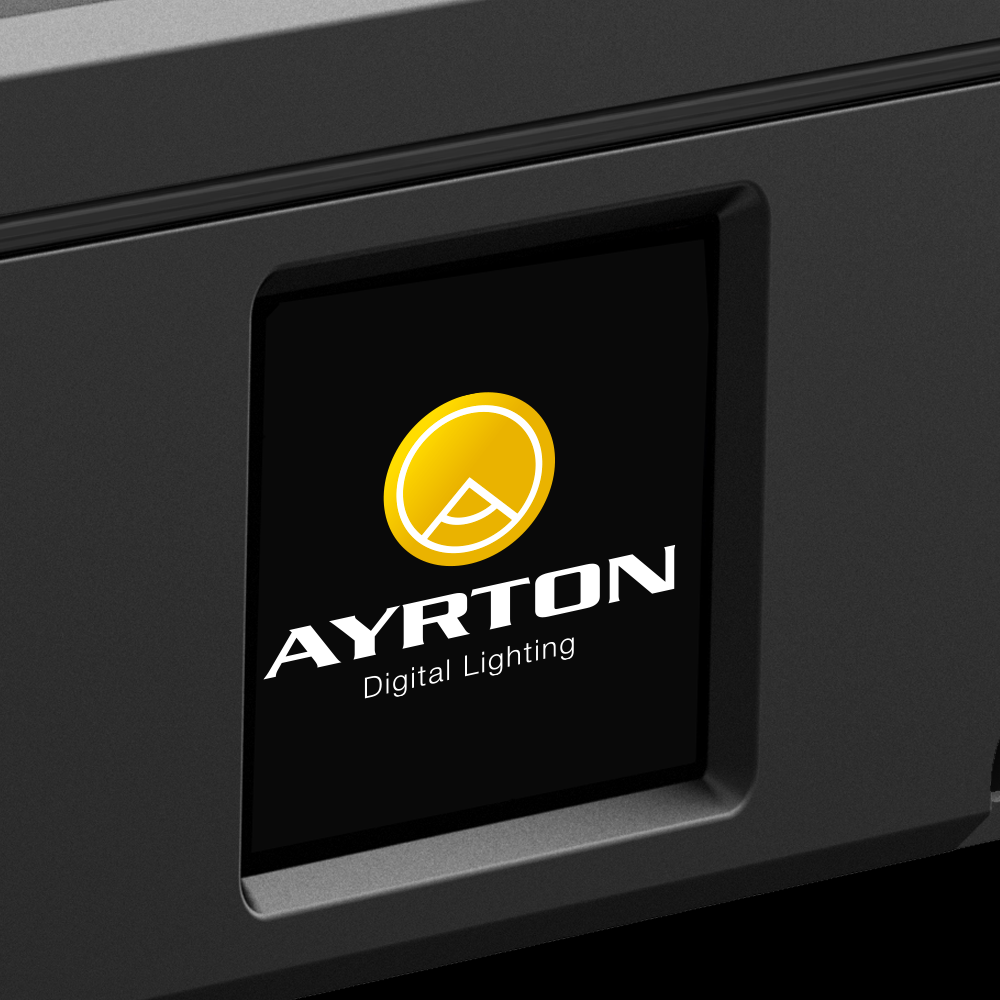

  • Graphic LCD touch screen for control and special functions settings

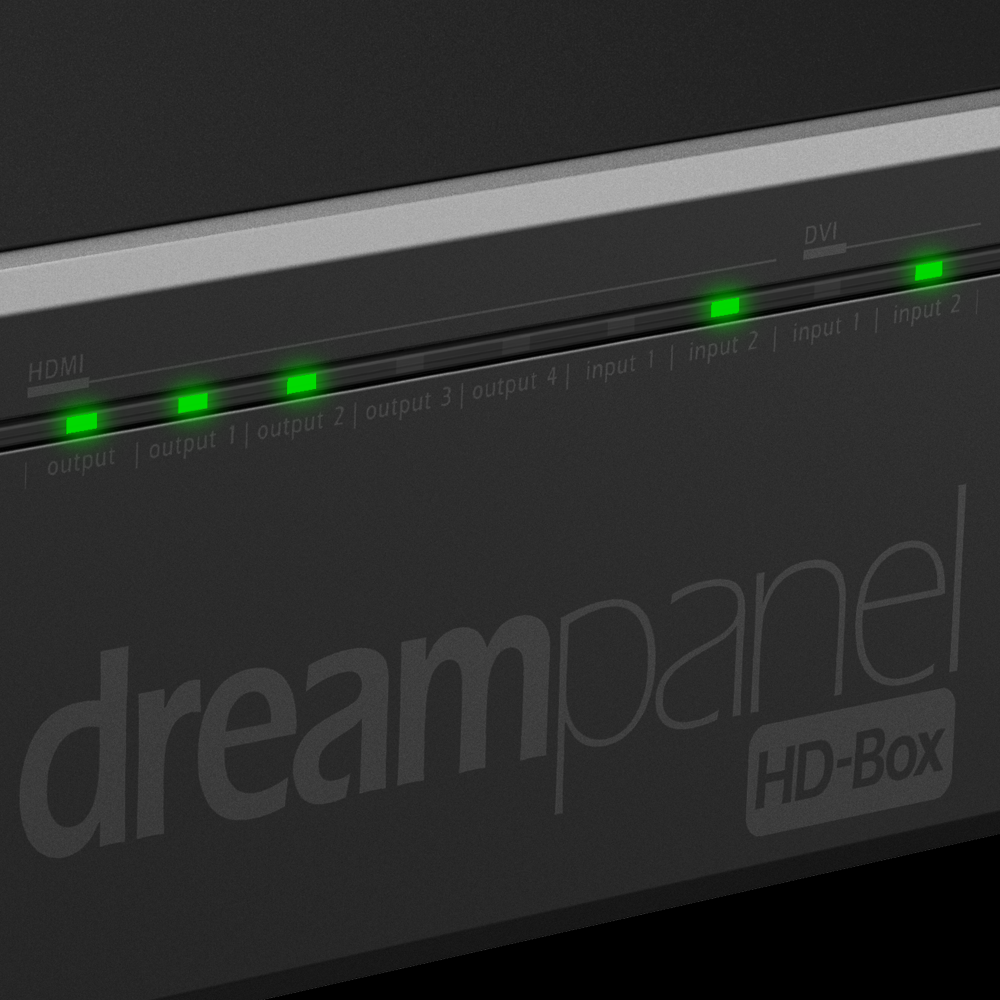

  • Status monitoring in the front panel
  • Power supply Input through PowerCON TRUE1 connectors

Power supply

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power 60 Watt max

Housing

  • Rack 19” – 2U made of steel metal plates
  • Front panel in extruded anodized aluminium profile
  • IP20 protection rating
  • Exterior finish: black (Carbon)

Operating parameters

  • Operating positions: mounted in a 19” rack
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)

Compliance

EU (EMC):

  • EMC Directive 2014/30/EU

EU (LVD):

  • LVD Directive 2014/35/EU

Size

  • Rack 19” – 2U
  • Product: 481 x 88 x 295 mm (l x h x d)

Weight

  • Product: 4.3 KG

Product codes

  • 028820: DREAMPANEL HD-BOX IMAGINE DISPLAY

Copyright © 2001-2018 Ayrton SAS. All rights reserved - Specifications subject to change without notice.
